Square Mesh 202040 Fiberglass / FRP Molded Grating High Strength Corrosion Resistant

Large Image : Square Mesh 20*20*40 Fiberglass / FRP Molded Grating High Strength Corrosion Resistant

Product Details:

Place of Origin:	China
Brand Name:	QIJIE
Certification:	sgs
Model Number:	FRP grating

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	pallets
Delivery Time:	15-18days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	100-200pcs

Contact Now

Detailed Product Description

Installation Method:

Bolt Fixing

Material:

Fiberglass

Surface Type:

Gritted Surface

Thickness:

Highlight:

FRP Square Mesh Grating

Square Mesh Fiberglass Grating

Corrosion Resistant FRP Molded Grating

Square Mesh 20*20*40 Fiberglass/FRP Molded Grating with High Strength Corrosion Resistant

Fiberglass Grating is a lightweight and sound alternative to Steel or Aluminum Gratings

The color of molded FRP grating is made by color pigment which is compatible to the resin, so its color is not superficial, thus keeping the gratings overall color lasting longer time. Abrightly colored FRP grating can improve your production environment, changing the constant grayness of a corrosive environment and adding color to a modern factory.Sinogrates molded FRP grating is high strength, impact resistant, corrosion resistant, fire retardant, anti-slip and anti-aging.It meets or passes ASTM E-84 fire retardant, Anti-slip R13 (AS4586-2013), DNV, ABS, EU REACH SVHC environmental testing or certification.

MOULDS SPECIFICATION TABLE

PRODUCTION DETAILS

RESINS OPTIONS GUIDE
When selecting grating, be certain to review the RESIN SELECTION GUIDE for your application

Resin Type	Resin option	Properties	Fire retardant (ASTME84)	MAX ºC
Type P	phenolic	lower smoke and superior fire resistance	class 1,5 or less	150 ºC
Type V	vinyl ester	superior corrosion resistance and fire retaddant	class 1,25 or less	95 ºC
Type I	isophthalic polyester	industrial grade corrosion resistance and fire retardant	class 1,25 or less	85ºC
Type O	ortho	moderate corrosion resistance and fire retardant	class 1,25 or less	85 ºC
Type F	lsophthalic polyester	Moderate Corrosion Resistanceand Fire Retardant	class 1,25 or less	85 ºC
Type E	EроXy	Excellent corrosion resistanceand fire retardant	class 1,25 or less	180 ºC

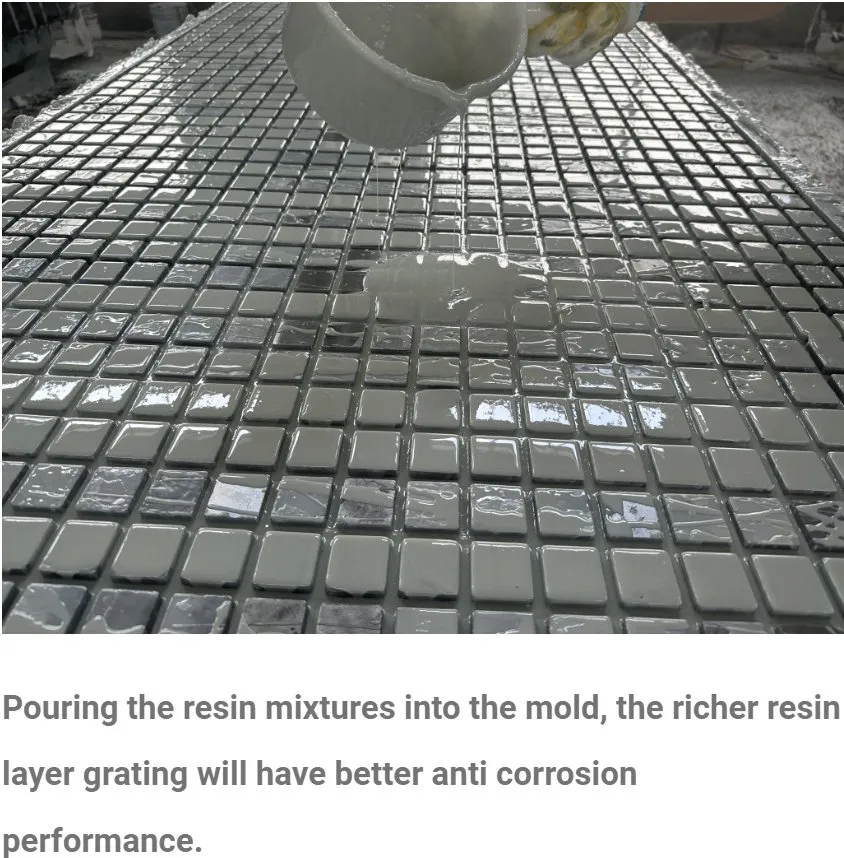

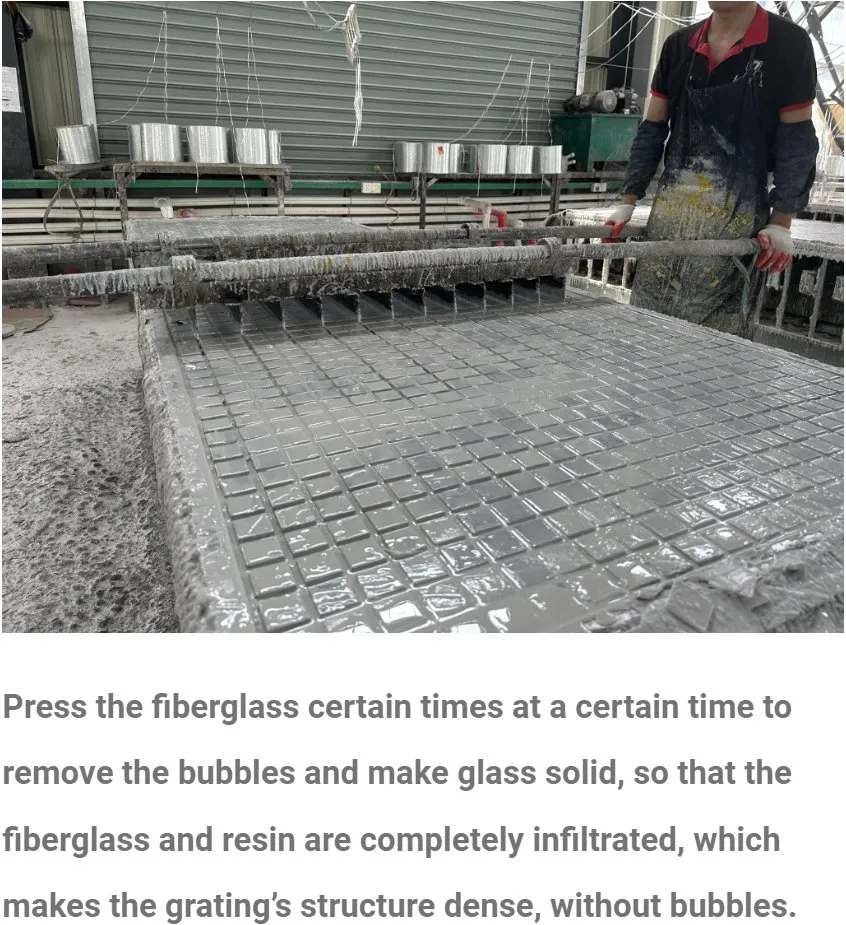

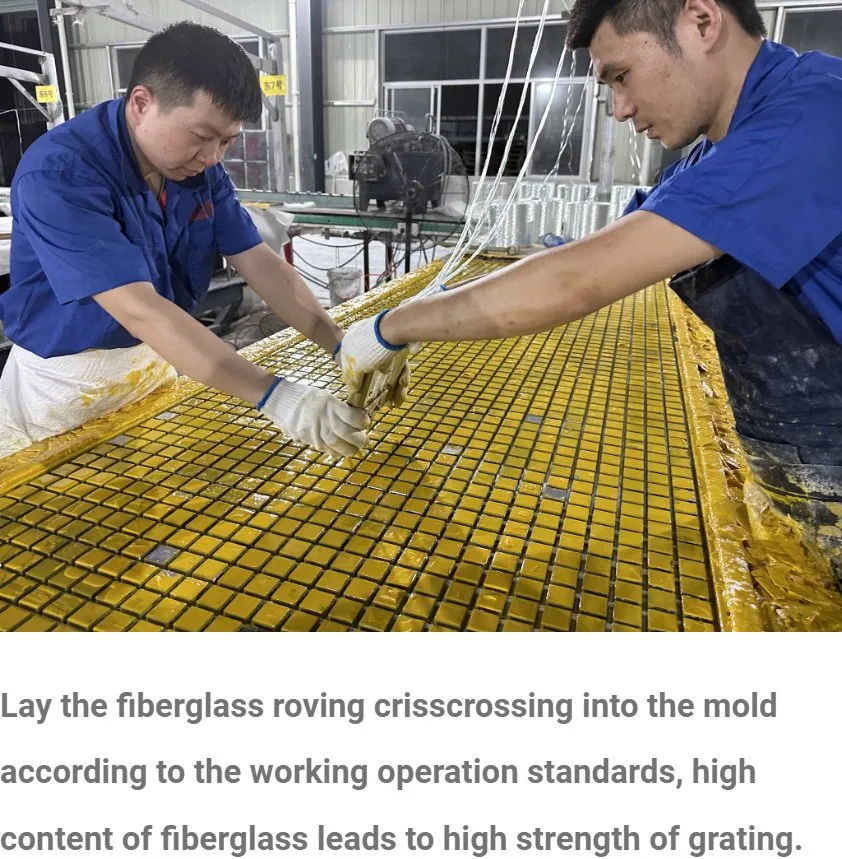

Producting proceed

Square Mesh 20*20*40 Fiberglass / FRP Molded Grating High Strength Corrosion Resistant 4

Square Mesh 20*20*40 Fiberglass / FRP Molded Grating High Strength Corrosion Resistant 5

Square Mesh 20*20*40 Fiberglass / FRP Molded Grating High Strength Corrosion Resistant 6

Square Mesh 20*20*40 Fiberglass / FRP Molded Grating High Strength Corrosion Resistant 7

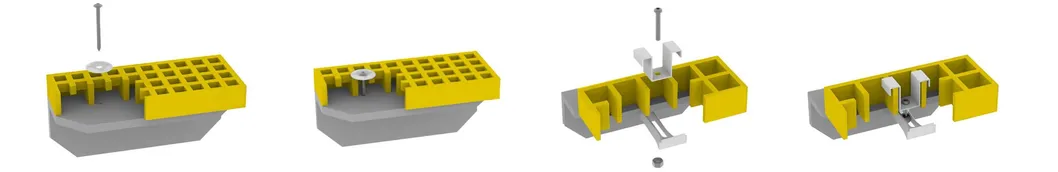

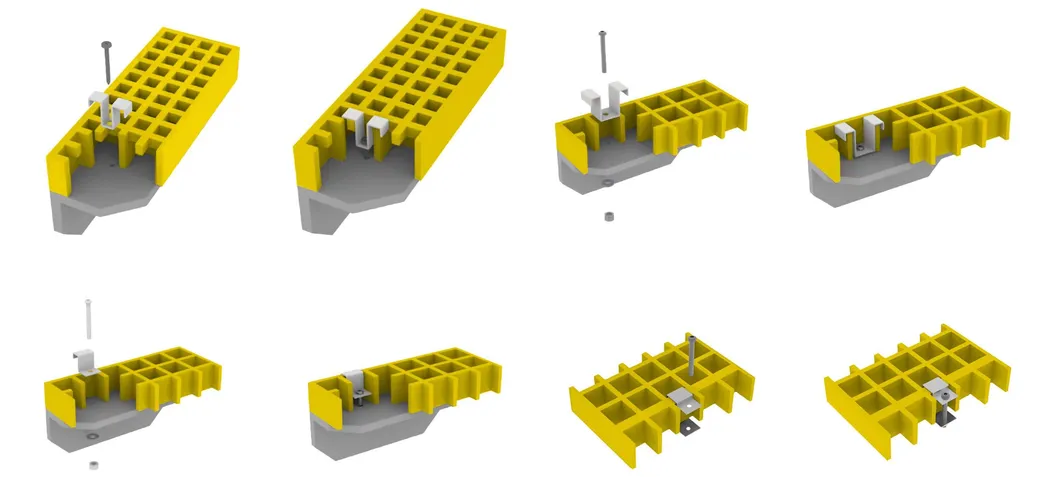

Clip Fastening & Installation Methods

To ensure ease of installation, please review all relevant technical documentation.

Take care when fasteningand seek assistance if required. For further info regarding installation please contact .

The section below illustrates standard installation methods that can be applied to moulded grating.

Clip and fastening selections should be made according to the substrate material in use.

Square Mesh 20*20*40 Fiberglass / FRP Molded Grating High Strength Corrosion Resistant 8

Square Mesh 20*20*40 Fiberglass / FRP Molded Grating High Strength Corrosion Resistant 9

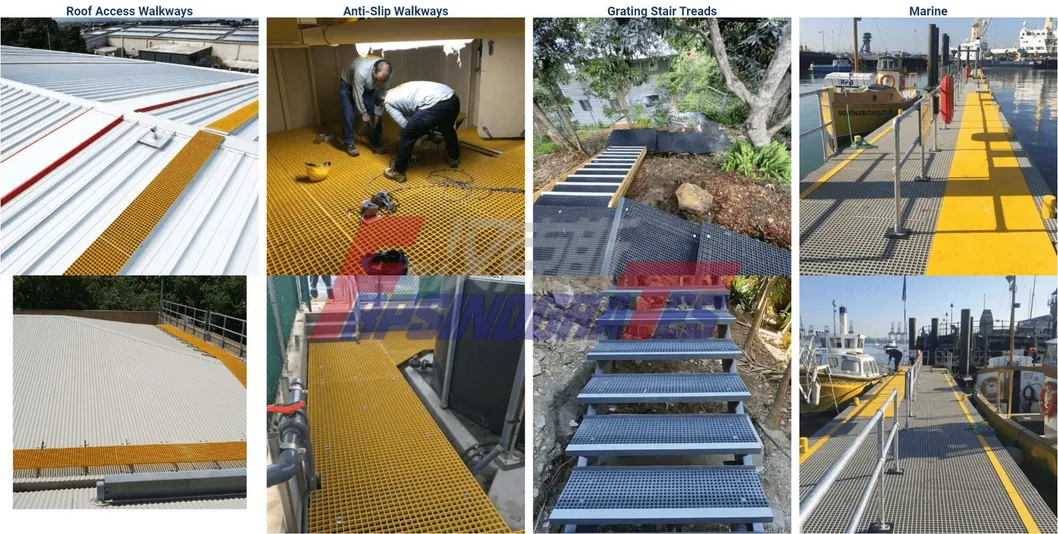

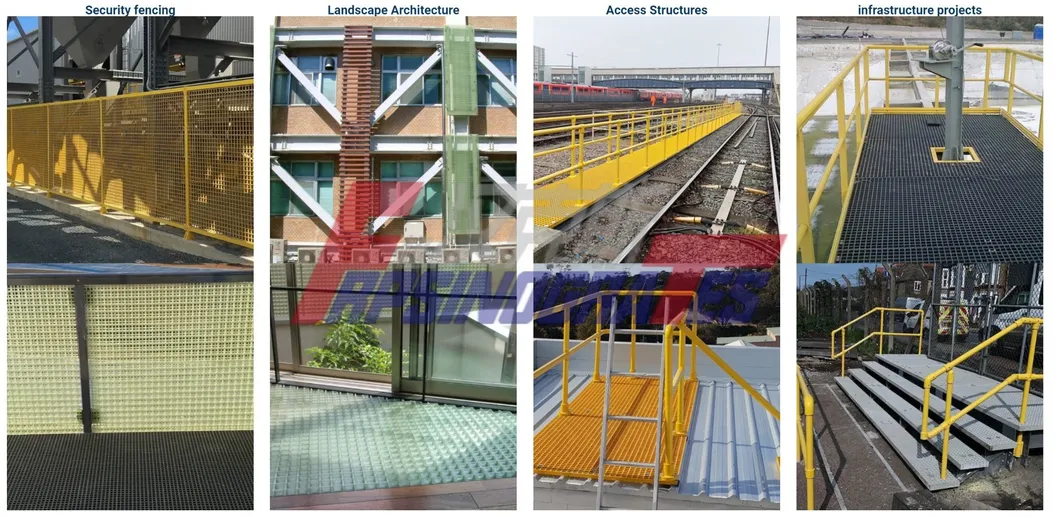

FRP Grating Applications

Sinogrates has high-performance gratings that are suitable for use in specific areas with higher technical requirements.In particular,Sinogrates offers a line of gratings with high chemical resistance, which are suitable for use in chemically aggressive environments such as chemical, galvanic, extraction, manufacturing industry (tanneries, paper mills, etc.) and waste treatment. This line is characterized by the use of pure isophthalic or vinylester resin, which is free of additives, and the use of a higher amount of resin compared to the standard grating in order to ensure total coverage of fibreglass.

Square Mesh 20*20*40 Fiberglass / FRP Molded Grating High Strength Corrosion Resistant 10
