38mm Thickness FRP Pultruded Grating With Gritted Surface And Bolt Fixing Installation

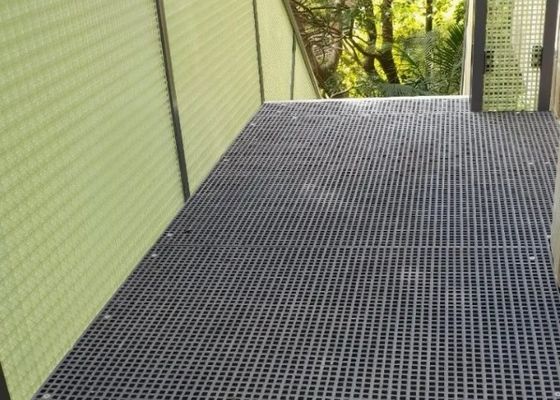

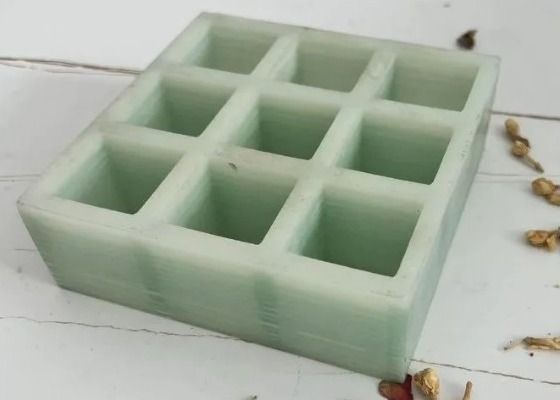

Large Image : 38mm Thickness FRP Pultruded Grating With Gritted Surface And Bolt Fixing Installation

Product Details:

Place of Origin:	China
Brand Name:	QIJIE
Certification:	sgs
Model Number:	FRP grating

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	pallets
Delivery Time:	15-18days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	100-200pcs

Contact Now

Detailed Product Description

Installation Method:

Bolt Fixing

Material:

Fiberglass

Surface Type:

Gritted Surface

Thickness:

Highlight:

38mm Pultruded Grating

Gritted Surface Pultruded Grating

FRP Pultruded Grating

Square Mesh 20*20*40 Fiberglass/FRP Molded Grating with High Strength Corrosion Resistant

Fiberglass Grating is a lightweight and sound alternative to Steel or Aluminum Gratings

Fiberglass reinforced plastic grating (also known as FRP grating, glass reinforced plastic grating or fiberglass grating) is a composite material manufactured by combining a matrix of resin and fiberglass. FRP pultruded grating providing durability and an extremely high unidirectional strength and stiffness making it the ideal solution for application where longer support spans are required.

Polyester: A premium-grade isophthalic polyester resin system that provides excellent corrosion protection. Standard colors: Dark Gray, Light Gray, Yellow, and Green. Equivalent to Fiberglass Grating Competitor Brand and Strongwell Duragrate PP.

Vinyl ester: A chemically resistant system that provides the highest level of corrosion protection. Standard colors: Yellow, Dark Gray, and Orange. Equivalent to Fiberglass Grating Vinyl Ester and Strongwell Duragrate VE.

With an anti-slip (gritted top) or smooth surface. Colours available on request.

MOULDS SPECIFICATION TABLE

PRODUCTION DETAILS

Industries

Chemical plant and metal finishing
Construction engineering, traffic and transportation
Petrochemical engineering, ocean survey, water engineering
Food and beverage plants
Textile printing and dyeing and electronic industry

Functions

Anti-slip floor, stair tread, a footbridge
The operation platform, trench cover
Security and safety fence, handrail
Off-shore oil rig, shipyard, shipping deck, ceiling
Ramp ladder, scaffold, railway
Decorative grid, man-made fountain pool grid
Non-conductive and non-magnetic

Advantages

Anti-fire
Anti-corrosion and anti-ageing
Anti-slippery
Light but high loaded strength
Long service life and maintenance-free
Non-conduction or magnetic
Easy installation and rich colours
Various sizes and colours available

RESINS OPTIONS GUIDE
When selecting grating, be certain to review the RESIN SELECTION GUIDE for your application

Resin Type	Resin option	Properties	Fire retardant (ASTME84)	MAX ºC
Type P	phenolic	lower smoke and superior fire resistance	class 1,5 or less	150 ºC
Type V	vinyl ester	superior corrosion resistance and fire retaddant	class 1,25 or less	95 ºC
Type I	isophthalic polyester	industrial grade corrosion resistance and fire retardant	class 1,25 or less	85ºC
Type O	ortho	moderate corrosion resistance and fire retardant	class 1,25 or less	85 ºC
Type F	lsophthalic polyester	Moderate Corrosion Resistanceand Fire Retardant	class 1,25 or less	85 ºC
Type E	EроXy	Excellent corrosion resistanceand fire retardant	class 1,25 or less	180 ºC

Producting proceed

38mm Thickness FRP Pultruded Grating With Gritted Surface And Bolt Fixing Installation 4

38mm Thickness FRP Pultruded Grating With Gritted Surface And Bolt Fixing Installation 5

38mm Thickness FRP Pultruded Grating With Gritted Surface And Bolt Fixing Installation 6

38mm Thickness FRP Pultruded Grating With Gritted Surface And Bolt Fixing Installation 7

Clip Fastening & Installation Methods

To ensure ease of installation, please review all relevant technical documentation.

Take care when fasteningand seek assistance if required. For further info regarding installation please contact .

The section below illustrates standard installation methods that can be applied to moulded grating.

Clip and fastening selections should be made according to the substrate material in use.

38mm Thickness FRP Pultruded Grating With Gritted Surface And Bolt Fixing Installation 8

38mm Thickness FRP Pultruded Grating With Gritted Surface And Bolt Fixing Installation 9

FRP Grating Applications

Sinogrates has high-performance gratings that are suitable for use in specific areas with higher technical requirements.In particular,Sinogrates offers a line of gratings with high chemical resistance, which are suitable for use in chemically aggressive environments such as chemical, galvanic, extraction, manufacturing industry (tanneries, paper mills, etc.) and waste treatment. This line is characterized by the use of pure isophthalic or vinylester resin, which is free of additives, and the use of a higher amount of resin compared to the standard grating in order to ensure total coverage of fibreglass.

38mm Thickness FRP Pultruded Grating With Gritted Surface And Bolt Fixing Installation 10
