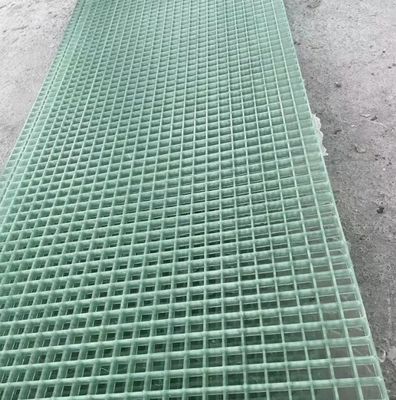

FRP Walkway GRP Grating With 25mm Thickness And 38X38X38mm Size Made Of Fiberglass

FRP Walkway GRP Grating With 25mm Thickness And 38X38X38mm Size Made Of Fiberglass
FRP Walkway GRP Grating With 25mm Thickness And 38X38X38mm Size Made Of Fiberglass FRP Walkway GRP Grating With 25mm Thickness And 38X38X38mm Size Made Of Fiberglass

Large Image :  FRP Walkway GRP Grating With 25mm Thickness And 38X38X38mm Size Made Of Fiberglass

Product Details:
Place of Origin: China
Brand Name: QIJIE
Certification: sgs
Model Number: FRP grating
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Packaging Details: pallets
Delivery Time: 15-18days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100-200pcs
Contact Now
Detailed Product Description
Installation Method: Bolt Fixing Material: Fiberglass
Surface Type: Gritted Surface Thickness: 25mm
Highlight:

38X38X38mm FRP Walkway GRP Grating

,

FRP Walkway GRP Grating

,

25mm FRP Walkway GRP Grating

FRP Walkway GRP Grating Fiberglass Grating Size 38X38X38mm



Fiberglass grating, also known as fiberglass sheet, is a type of board made of glass fiber reinforced material and unsaturated polyester resin matrix, which has been specially processed. Fiberglass grating with a large amount of blank space can be used as a structural material for floors, trench covers, platforms, ship decks, stairs, etc. in corrosive environments Walkways, etc. It has the characteristics of corrosion resistance, flame retardancy, non-magnetic insulation, bright colors, and a variety of styles and forms to choose from
Specifications(mm) W*L(mm) weight(kg)/sheet
38*38*25 1220*3600 54
38*38*30 1220*3660 70
38*38*38 1220*3660 88
38*38*38 1000*4007 81
50*50*50 1220*3660 98
19*19*38*38*30 1075*3626 72
38*38*65 1030*4040 141
FRP Walkway GRP Grating With 25mm Thickness And 38X38X38mm Size Made Of Fiberglass 0

PRODUCTION DETAILS

FRP Walkway GRP Grating With 25mm Thickness And 38X38X38mm Size Made Of Fiberglass 1
FRP Walkway GRP Grating With 25mm Thickness And 38X38X38mm Size Made Of Fiberglass 2


Industries

  • Chemical plant and metal finishing
  • Construction engineering, traffic and transportation
  • Petrochemical engineering, ocean survey, water engineering
  • Food and beverage plants
  • Textile printing and dyeing and electronic industry

Functions

  • Anti-slip floor, stair tread, a footbridge
  • The operation platform, trench cover
  • Security and safety fence, handrail
  • Off-shore oil rig, shipyard, shipping deck, ceiling
  • Ramp ladder, scaffold, railway
  • Decorative grid, man-made fountain pool grid
  • Non-conductive and non-magnetic

Advantages

  • Anti-fire
  • Anti-corrosion and anti-ageing
  • Anti-slippery
  • Light but high loaded strength
  • Long service life and maintenance-free
  • Non-conduction or magnetic
  • Easy installation and rich colours
  • Various sizes and colours available
RESINS OPTIONS GUIDE
When selecting grating, be certain to review the RESIN SELECTION GUIDE for your application
FRP Walkway GRP Grating With 25mm Thickness And 38X38X38mm Size Made Of Fiberglass 3 Resin Type Resin option Properties Fire retardant (ASTME84) MAX ºC
Type P phenolic lower smoke and superior fire resistance class 1,5 or less 150 ºC
Type V vinyl ester superior corrosion resistance and fire retaddant class 1,25 or less 95 ºC
Type I isophthalic polyester industrial grade corrosion resistance and fire retardant class 1,25 or less 85ºC
Type O ortho moderate corrosion resistance and fire retardant class 1,25 or less 85 ºC
Type F lsophthalic polyester Moderate Corrosion Resistanceand Fire Retardant class 1,25 or less 85 ºC
Type E EроXy Excellent corrosion resistanceand fire retardant class 1,25 or less 180 ºC

Producting proceed

FRP Walkway GRP Grating With 25mm Thickness And 38X38X38mm Size Made Of Fiberglass 4 FRP Walkway GRP Grating With 25mm Thickness And 38X38X38mm Size Made Of Fiberglass 5 FRP Walkway GRP Grating With 25mm Thickness And 38X38X38mm Size Made Of Fiberglass 6


FRP Walkway GRP Grating With 25mm Thickness And 38X38X38mm Size Made Of Fiberglass 7

Clip Fastening & Installation Methods
To ensure ease of installation, please review all relevant technical documentation.
Take care when fasteningand seek assistance if required. For further info regarding installation please contact .
The section below illustrates standard installation methods that can be applied to moulded grating.
Clip and fastening selections should be made according to the substrate material in use.
FRP Walkway GRP Grating With 25mm Thickness And 38X38X38mm Size Made Of Fiberglass 8 FRP Walkway GRP Grating With 25mm Thickness And 38X38X38mm Size Made Of Fiberglass 9

FRP Grating Applications
Sinogrates has high-performance gratings that are suitable for use in specific areas with higher technical requirements.In particular,Sinogrates offers a line of gratings with high chemical resistance, which are suitable for use in chemically aggressive environments such as chemical, galvanic, extraction, manufacturing industry (tanneries, paper mills, etc.) and waste treatment. This line is characterized by the use of pure isophthalic or vinylester resin, which is free of additives, and the use of a higher amount of resin compared to the standard grating in order to ensure total coverage of fibreglass.

FRP Walkway GRP Grating With 25mm Thickness And 38X38X38mm Size Made Of Fiberglass 10
FRP Walkway GRP Grating With 25mm Thickness And 38X38X38mm Size Made Of Fiberglass 11
