Crocodile mouth hole anti-skidwalkway/aluminum tread plate

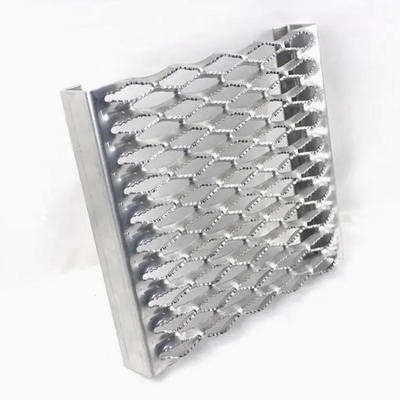

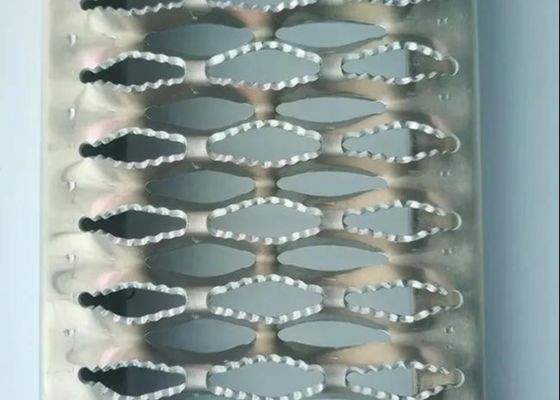

Large Image : Crocodile mouth hole anti-skidwalkway/aluminum tread plate

Product Details:

Place of Origin:	hebei,China
Brand Name:	QIJIE
Certification:	iso
Model Number:	grip strut grating

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Packaging Details:	Pallets
Delivery Time:	15-18days
Payment Terms:	30%TT in advance,Balance before loading
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Material:	Aluminum,Galvanized Steel Wire	Products Name:	Grip Strut Grating
Type:	Perforated Mesh,Etching Or Stamping	Technique:	Perforated
Weave Style:	Perforated,Punched,Punching	Hole Shape:	Round,diamond,etc,plum Blossom,octagonal
Surface Treatment:	Spray Coating/Spray Painting/Fluorocarbon Coating,Hot Dipped Galvanized,galvanized And Fluoroca	Color:	All The Color Chip Have,White,blue,Silver,golden
Product Name:	Hexagonal Perforated Metal Sheet,expandable Sdiamond Mesh	Thickness:	0.5-8mm,0.3MM- 8MM
Feature:	Corrosion Resistance,Good-looking And Good Quality,Durable,Acid Resistance,anti-resistance	Width:	1m Or 1.22m,1.22 M Or Below
Usage:	Etc.,decorative,oil/air Filter,food	Length:	2m Or 2.44m
Size:	Customized Size,standard	Shape:	Square,Can Be Cut Into Round Or Square Shape,Round Shape,oval,Hexagon
Pitch:	1.0mm-100MM,or As Request.	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	crocodile mouth anti-skid walkway , aluminum tread plate grating , grip strut grating with holes

Crocodile mouth hole anti-skidwalkway/aluminum tread plate

Anti-slip gratings are manufactured as one-piece consructed channels with walking surfaces surfaces consisting of serrated edges on top of diamond shaped openings. The serrated surface is designed in an open diamond pattern. This allows drainage of fluids, mud, chips and other accident-causing debris. They can be cut or bending to any size and are ideal for wet or dry conditions where good slip resistance and traction are needed, adapt to different ground and anti-skid requirement.
We can produce full line of safety grating includes standard plank, stair treads, ladder rungs, walkway channels and flat sheet flooring for industrial applications and so on. Material:Steel,Aluminum,Stainless Steel
Pattern:Round type,Crocodile mouth type

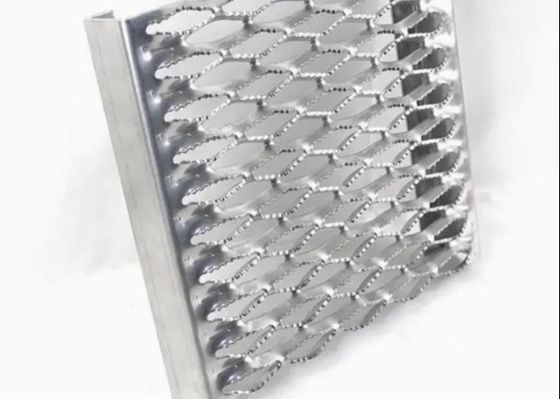

Crocodile mouth hole anti-skidwalkway/aluminum tread plate 0

Widths & Depths

Grip Strut planks are available in a broad range of widths and depths for various applications and load requirements.

Standard widths include:

2 Diamond (4 ¾” wide)
3 Diamond (7” wide)
4 Diamond (9-1/2” wide)
5 Diamond (11-3/4” wide)
8 Diamond (18-3/4” wide)
10 Diamond (24” wide)

Standard channel depths include 1-1/2”, 2”, 2-1/2”, and 3”.

Stock lengths of 10’ and 12’ are readily available and custom lengths are available on special order.

Materials

Grip Strut planks are available in the following materials:

Pre-galvanized steel, ASTM A924 G90, 14 or 12 gauge
HRPO uncoated steel, ASTM A1011, 14 or 12 gauge
5052-H32 aluminum, ASTM B209, 12 gauge (.080) or 10 gauge (.100)
304 or 316L stainless steel, 16 gauge

Additional Grip Strut Products

In addition to plank grating, the distinct benefits of the Grip Strut surface are also available in OSHA compliant walkway channels, stair treads, ladder rungs, floor resurfacing materials, and Heavy Duty Grip Strut. For further details, please see related products below.

Application

1. The top wall of the building object can be used for the ceiling, filter plate and cavity plate.
2. Used for building
balconies, environmental tables and chairs.
3. Protective cover plate, punch net and round hole plate for mechanical
equipment
4. Used for grain, feed sieve plate, sieve sheet, microporous plate.
5. Used for the shelf mesh decoration of the shopping mall display table hole plate, porous plate, perforated plate.

Structure	Plank thickness	Width	Channel height	Clear span
2-diamond	14G	4-3/4"	1-1/2"	2'; 2'-6"; 3'
	14G		2"	2'; 2'-6"; 3'; 4'
	12G		1-1/2"	2'; 2'-6"; 3'
	12G		2"	2'; 2'-6"; 3'; 4'
3-diamond	14G	7"	1-1/2"	2'; 2'-6"; 3'
	14G		2"	2'; 2'-6"; 3'; 4'
	12G		1-1/2"	2'; 2'-6"; 3'
	12G		2"	2'; 2'-6"; 3'; 4'
4-diamond	14G	9-1/2"	1-1/2"	2'; 2'-6"; 3'
	14G		2"	2'; 2'-6"; 3'; 4'
	12G		1-1/2"	2'; 2'-6"; 3'
	12G		2"	2'; 2'-6"; 3'; 4'
5-diamond	14G	11-3/4"	1-1/2"	2'; 2'-6"; 3'
	14G		2"	2'; 2'-6"; 3'; 4'
	12G		1-1/2"	2'; 2'-6"; 3'
	12G		2"	2'; 2'-6"; 3'; 4'
8-diamond	14G	18-3/4"	2"	2'; 2'-6"; 3'; 4'
8-diamond	12G	18-3/4"	2"	2'; 2'-6"; 3'; 4'
10-diamond	14G	24"	2"	2'; 2'-6"; 3'; 4'
10-diamond	12G	24"	2"	2'; 2'-6"; 3'; 4'

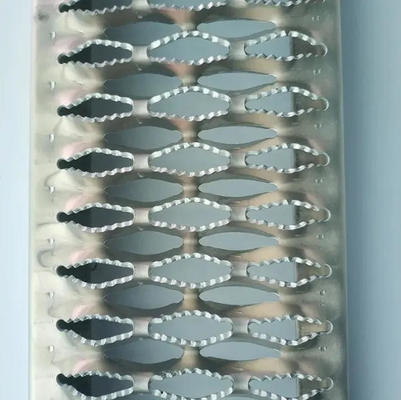

Crocodile mouth hole anti-skidwalkway/aluminum tread plate 2

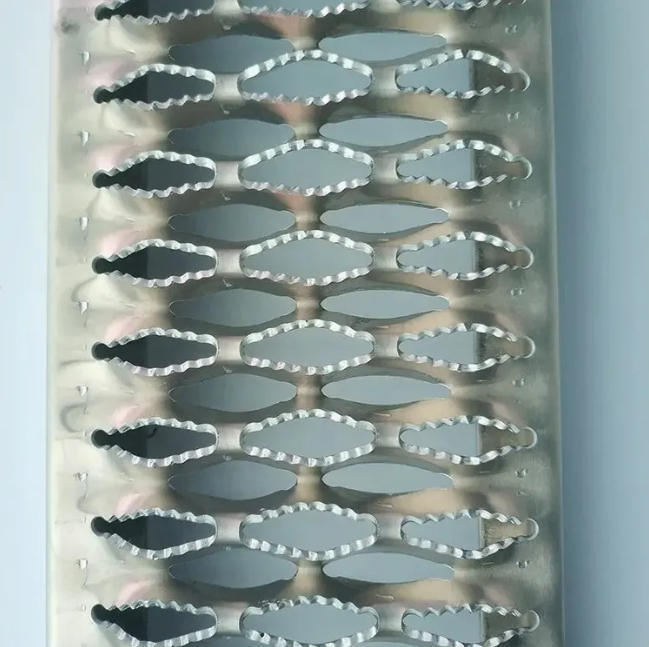

Crocodile mouth hole anti-skidwalkway/aluminum tread plate 3
