Ss 304 316 Zoo Wire Mesh Stainless Steel Wire Rope Aviary Mesh for Bird Protection

Large Image : Ss 304 316 Zoo Wire Mesh Stainless Steel Wire Rope Aviary Mesh for Bird Protection

Product Details:

Place of Origin:	Hebei, China
Brand Name:	QIJIE
Certification:	CE,SGS,ISO
Model Number:	SW-004

Payment & Shipping Terms:

Minimum Order Quantity:	10 square meters
Packaging Details:	wooden case
Delivery Time:	10-15 working days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	3000 m2/month

Contact Now

Detailed Product Description

Material:	STAINLESS STEEL WIRE	Type:	Rope Mesh, Ferrule Type Or Knotted Type
Application:	Protecting Mesh	Weave Style:	Plain Weave
Technique:	Woven	Model Number:	Steel Wire Rope Mesh
Processing Service:	Weave	Raw Material:	Stainless Steel 304 316, Galvanized Wire
Accessories:	All Could Be Provided	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	Stainless steel aviary mesh for birds , SS 304 316 zoo wire mesh , Stainless steel wire rope bird protection

Ss 304 316 Zoo Wire Mesh Stainless Steel Wire Rope Aviary Mesh for Bird Protection

A premium fabric with strength and flexibility made up with a network of strands of stainless steel cables that are knotted and twisted. The construction is made up of stainless steel wire ropes parallel in pairs and mutually connected by crimped sleeves or weaving knots. When stretched, the net construction produces a spring force which varies from different opening degree and wire mesh rope diameter. Stainless Steel Rope Mesh is a vibrant and quality product with customized opening and various wire diameter (1.2 mm, 1.6 mm, 2 mm, 2.4 mm and 3.2 mm). All our meshes are made from either AISI 316 or 304 material group.

Lightweight, Strong and Durable

Stainless Steel Rope Mesh is Lightweight, High Strength, Flexible, UV and Weather Resistance, Non-corroding, the overall structure is Strong and Durable, service life of more than 30 years.

Luxurious Appearance

Stainless Steel Rope Mesh has good transparency which is barely visible from a distance, the rope mesh fencing can provide the perfect interaction conditions for the public at the same time ensuring their safety.

Widely Applied Range

Stainless Steel Rope Mesh can reliably safe keep any type of species on land, in the air, indoors or outdoors. In addition, the Rope Mesh opening is customizable to meet specifications required by the exhibits.

Specification:

Item	Cable diameter	mesh opening	Application
YT-SS200/2	2.0mm	200*200mm	Architecture outdoor mesh
YT-SS40/02	2.0mm	40*40mm	Playground mesh,stadium protection mesh
YT-SS50/02	2.0mm	50*50mm	Playground mesh,decorative indoor mesh
YT-SS60/02	2.0mm	60*60mm	Architecture outdoor mesh,Playground mesh
YT-SS80/02	2.0mm	80*80mm	decorative indoor mesh,Aviary mesh
YT-SS100/02	2.0mm	100*100mm	airport protection mesh
YT-SS12002	2.0mm	120*120mm	suspended ceiling mesh
YT-SS140/02	2.0mm	140*140mm	overhead coverage mesh
YT-SS60/1.5	1.5mm	60*60mm	Playground mesh,Stairs Fence
YT-SS40/1.5	1.5mm	40*40mm	Playground mesh,aviary mesh,
			Stairs Fence,Architecture mesh,
			Animal enclosure
YT-SS100/1.5	1.5mm	100*100mm	Architecture outdoor mesh,
YT-SS100/1.5	1.5mm	100*100mm	Pool protective net,Stairs Net
YT-SS50/1.5	1.5mm	50*50mm	Stairs Fence
YT-SS30/1.5	1.5mm	30*30mm	shading canopy mesh,Tower Protection Net
YT-SS25/1.5	1.5mm	25*25mm	Aviary mesh
YT-SS20/01	1.0mm	20*20mm	Aviary mesh
YT-SS30/01	1.0mm	30*30mm	Aviary mesh
YT-SS40/01	1.0mm	40*40mm	Playground mesh,protection mesh
YT-SS50/2.5	2.5mm	50*50mm	Animal enclosure
YT-SS100/03	3.0mm	100*100mm	safety net,overhead coverage mesh
YT-SS40/03	3.0mm	40*40mm	Playground mesh
YT-SS50/03	3.0mm	50*50mm	barrier mesh,decorative indoor mesh
YT-SS80/03	3.0mm	80*80mm	Bridge safety net

Product Description

Cable diameter		Mesh opening size		Nominal break
inch	mm	inch	mm	lbs.
1/8	3.2	4x4	102x102	1600
1/8	3.2	3x3	76x76	1600
1/8	3.2	2x2	51x51	1600
3/32	2.4	4x4	102x102	920
3/32	2.4	3x3	76x76	920
3/32	2.4	2x2	51x51	920
5/64	2.0	3x3	76x76	676
5/64	2.0	2x2	51x51	676
5/64	2.0	1-1/2x 1-1/2	38x38	676
1/16	1.6	3x3	76x76	480
1/16	1.6	2x2	51x51	480
1/16	1.6	1-1/2x 1-1/2	38x38	480
1/16	1.6	1x1	25.4x25.4	480
3/64	1.2	1-1/2x 1-1/2	38x38	270
3/64	1.2	1x1	25.4x25.4	270
3/64	1.2	4/5x4/5	20x20	270

Weaving Method

Stainless steel rope net is a net-like product processed by stainless steel rope according to certain methods and procedures. The common ones are mainly stainless steel buckle rope net and stainless steel braided rope net. The stainless steel buckle rope net is extruded and woven by stainless steel wire rope and stainless steel buckle.The steel buckle is mainly made of stainless steel buckle, and there are also aluminum buckles and copper buckles for customers to choose from.The stainless steel rope mesh woven net is formed by cross-weaving with a plurality of steel wire ropes, and the net is durable and unbreakable, and the bearing capacity is large.

Application:

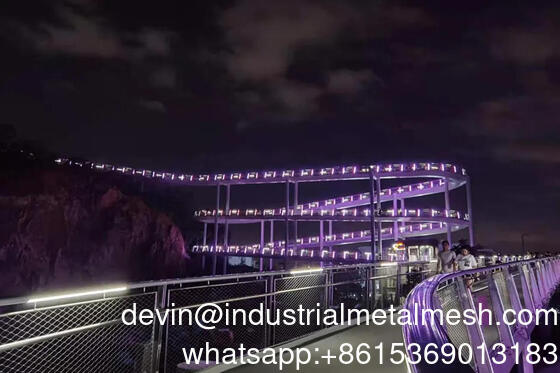

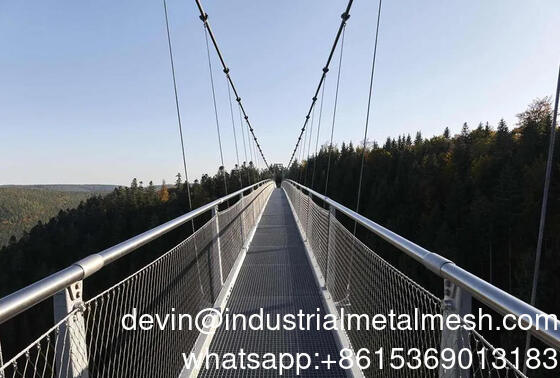

Steel Mesh Balustrade - bridge, stair, balcony, path
Cable Mesh - Excellent Solution to Safety
Safety Net - Structural Measure to Prevent Suicide
Helipad Safety Net - Modular Heliport Webbing
Cable Zoo Mesh - Solution to Enclosing Most Animals
Aviary Netting - Lightweight, Durable and Long Lasting
Green Facade - Cable System for Most Climbing Plants

Ss 304 316 Zoo Wire Mesh Stainless Steel Wire Rope Aviary Mesh for Bird Protection 3

Product Name	Stainless Steel Rope Mesh Decoration Rope Wire Mesh
Material	SUS302, 304, 316, 316L
Wire diameter	1.0mm-3.0mm
Structure	77,719.
Mesh opening size	*1"1",2"2",3"3",4"4".*
Feature	Handle Made Environmental Protection Extensive Use Premium Quality Direct from Factory Product Life Cycle Lifetime Support
Packing	The rope mesh will be rolled and packed into the P.P. woven bags or wooden crates.

Advantage:
1.High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
2.Anti-corrosive, resist the rust, can be repeated use.
3.Resists chewing by rodents and other pests
4.This product can bear the heavy snow and the gale very much.
5.Without toxic material, safety, environmental protection.

Main Featuers:
1.The mesh is clipped to the cable.
2.The hole size and diameter can be modified.
3.It can be made to customer orders and statically tested - especially suitable for facades.
4.High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
5.Anti-corrosive, resist the rust, can be repeated use.
6.Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)
7.This product can bear the heavy snow and the gale very much.
8.Without toxic material, safety, environmental protection.

Ss 304 316 Zoo Wire Mesh Stainless Steel Wire Rope Aviary Mesh for Bird Protection 4

Feature:

Stainless steel provides the highest corrosion resistance.
Elegant and robust.
Light, robust yet transparent.
UV and weather resistant.
Flexible and pliable.
Climb resistant and prevents a secure foothold.
The minimum visual impact on views.
Recyclable.
Good price-benefit-ratio.
Easy installation and low maintenance.
Weave opening, meet any exact specification.

The type of stainless steel rope mesh:

There are two types of flexible wire rope meshes in construction: ferrule type and knotted.

Ss 304 316 Zoo Wire Mesh Stainless Steel Wire Rope Aviary Mesh for Bird Protection 6

Application:

1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants

Ss 304 316 Zoo Wire Mesh Stainless Steel Wire Rope Aviary Mesh for Bird Protection 7
