Flexible 304/316 Hand Woven Stainless Steel Knotted Wire Rope Cable Mesh

Large Image : Flexible 304/316 Hand Woven Stainless Steel Knotted Wire Rope Cable Mesh

Product Details:

Place of Origin:	Hebei, China
Brand Name:	QIJIE
Certification:	CE,SGS,ISO
Model Number:	SW-004

Payment & Shipping Terms:

Minimum Order Quantity:	10 square meters
Packaging Details:	wooden case
Delivery Time:	10-15 working days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	3000 m2/month

Contact Now

Detailed Product Description

Material:	STAINLESS STEEL WIRE	Type:	Rope Mesh, Ferrule Type Or Knotted Type
Application:	Protecting Mesh	Weave Style:	Plain Weave
Technique:	Woven	Model Number:	Steel Wire Rope Mesh
Processing Service:	Weave	Raw Material:	Stainless Steel 304 316, Galvanized Wire
Accessories:	All Could Be Provided	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	flexible stainless steel wire rope mesh , hand woven stainless steel cable mesh , 304/316 stainless steel knotted mesh

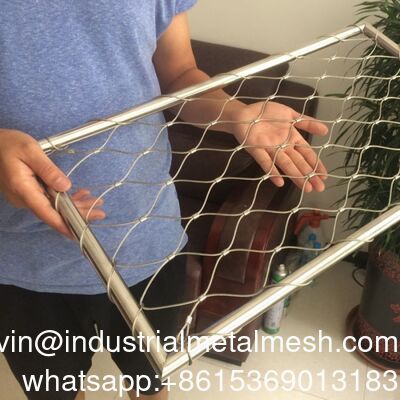

Flexible 304/316 Hand Woven Stainless Steel Knotted Wire Rope Cable Mesh

Stainless steel cable netting.

also called X-TEND mesh/Webnet, is manufactured from robust, high-grade DIN 1.4401/AISI 316 stainless steel cables. The cables are swaged with tinned copper (type CX) or stainless steel (types CXE and CXS) clamps in a special process to form a mesh structure that is both stressable and flexible and suited for either two- or three-dimensional applications. X-TEND keeps its shape indefinitely and stands for long lasting use.
X-TEND is fabricated from high-quality and robust stainless steel cables (material: AISI316). These are linked together by a special method using stainless steel ferrules to form a stressable yet flexible structure for two- or three-dimensional applications. X-TEND keeps its shape indefinitely and requires little maintenance only during its long lifetime.

Standard areas
Rope diameter	Mesh Width
1,0 mm	25 mm - 200 mm
1,5 mm	18 mm - 200 mm
2,0 mm	30 mm - 400 mm
3,0 mm	40 mm - 400 mm

Mesh geometry
The mesh width (MW) refers to the distance from the centre of one ferrule to the centre of the next ferrule. The optimal mesh geometry with an opening angle of 60° is given when the mesh width and the distance between the ferrules' centres along the mesh's cables
are equal. This results in the ideal tension of the mesh and is the mathematical basis for the quantity take-off.

MW Mesh width (distance from center to center of ferrule) α Standard mesh opening 60 °

Application:

Steel Mesh Balustrade - bridge, stair, balcony, path
Cable Mesh - Excellent Solution to Safety
Safety Net - Structural Measure to Prevent Suicide
Helipad Safety Net - Modular Heliport Webbing
Cable Zoo Mesh - Solution to Enclosing Most Animals
Aviary Netting - Lightweight, Durable and Long Lasting
Green Facade - Cable System for Most Climbing Plants

Flexible 304/316 Hand Woven Stainless Steel Knotted Wire Rope Cable Mesh 3

Product Name	Stainless Steel Rope Mesh Decoration Rope Wire Mesh
Material	SUS302, 304, 316, 316L
Wire diameter	1.0mm-3.0mm
Structure	77,719.
Mesh opening size	*1"1",2"2",3"3",4"4".*
Feature	Handle Made Environmental Protection Extensive Use Premium Quality Direct from Factory Product Life Cycle Lifetime Support
Packing	The rope mesh will be rolled and packed into the P.P. woven bags or wooden crates.

Advantage:
1.High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
2.Anti-corrosive, resist the rust, can be repeated use.
3.Resists chewing by rodents and other pests
4.This product can bear the heavy snow and the gale very much.
5.Without toxic material, safety, environmental protection.

Main Features:

1. Expertly clipped mesh securely affixed to robust cable.

2. Customizable hole size and diameter to match your precise requirements.
3. Tailored to customer specifications and rigorously statically tested - ideal for sophisticated facade applications.
4. Unmatched strength and toughness with easy handling for free-angle curving, folding, transportation, and installation.
5. Exceptional anti-corrosion properties and rust resistance, designed for repeated use and longevity.
6. Engineered to withstand chewing by rodents and pests, featuring a tensile strength of approximately 100-110,000 PSI.
7. Built to endure heavy snow loads and withstand powerful gale-force winds.
8. Non-toxic materials ensure safety and commitment to environmental protection.

Flexible 304/316 Hand Woven Stainless Steel Knotted Wire Rope Cable Mesh 4

Feature:

Stainless steel provides the highest corrosion resistance.
Elegant and robust.
Light, robust yet transparent.
UV and weather resistant.
Flexible and pliable.
Climb resistant and prevents a secure foothold.
The minimum visual impact on views.
Recyclable.
Good price-benefit-ratio.
Easy installation and low maintenance.
Weave opening, meet any exact specification.

The type of stainless steel rope mesh:

There are two types of flexible wire rope meshes in construction: ferrule type and knotted.

Flexible 304/316 Hand Woven Stainless Steel Knotted Wire Rope Cable Mesh 6

Applications:
1. Green Facade - Cable System for Most Climbing Plants

2. Aviary Netting - Lightweight, Durable and Long Lasting

3. Cable Zoo Mesh - Solution to Enclosing Most Animals

4. Helipad Safety Net - Modular Heliport Webbing

5. Safety Net - Structural Measure to Prevent Suicide

6. Cable Mesh - Excellent Solution to Safety

7. Steel Mesh Balustrade - bridge, stair, balcony, path

Flexible 304/316 Hand Woven Stainless Steel Knotted Wire Rope Cable Mesh 7
