Stainless Steel Wire Rope Mesh Wire Rope Woven Wire Mesh Fence Mesh

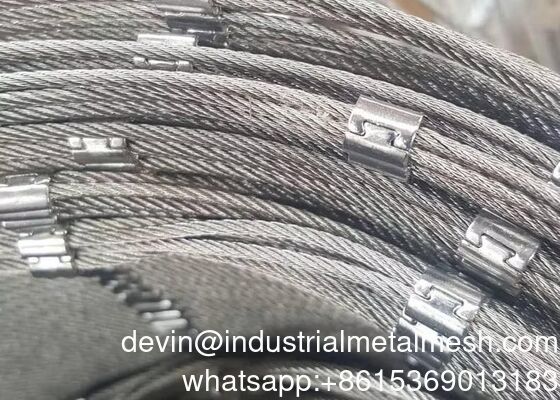

Large Image : Stainless Steel Wire Rope Mesh Wire Rope Woven Wire Mesh Fence Mesh

Product Details:

Place of Origin:	Hebei, China
Brand Name:	QIJIE
Certification:	CE,SGS,ISO
Model Number:	SW-004

Payment & Shipping Terms:

Minimum Order Quantity:	10 square meters
Packaging Details:	wooden case
Delivery Time:	10-15 working days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	3000 m2/month

Contact Now

Detailed Product Description

Material:	STAINLESS STEEL WIRE	Type:	Rope Mesh, Ferrule Type Or Knotted Type
Application:	Protecting Mesh	Weave Style:	Plain Weave
Technique:	Woven	Model Number:	Steel Wire Rope Mesh
Processing Service:	Weave	Raw Material:	Stainless Steel 304 316, Galvanized Wire
Accessories:	All Could Be Provided	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	stainless steel wire rope mesh fence , woven wire rope mesh panel , stainless steel fence mesh with warranty

Stainless Steel Wire Rope Mesh Wire Rope Woven Wire Mesh Fence Mesh

The stainless steel rope mesh is made of stainless steel wire. The material of the wire is stainless steel: 201,304, 304L, 316, 316L, etc. Hot and cold galvanized steel wire rope can also be used as required.Two conventional types of stainless steel rope mesh

Material:304, 304L, 316, 316L.
Ferrule material:tinned copper, nickel plated copper, stainless steel.
Surface treatment:silver or black oxide finish.
Structures of wire cable: 7 × 7, 7 × 19.
Cable diameter:1.0-5.0 mm.
Diamond sizes:20-200 mm.
Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Connection: ferrule or knotted.

model	Steel wire mesh structure	Breaking force (KN)	Wire rope diameter (mm)	Mesh size (mm)
BN32120	7*19	7.38	3.2	120*208
BN2470	7*7	4.18	2.4	70*102
BN20100	7*7	3.17	2.0	100*173
BN1680	7*7	2.17	1.6	80*140

Stainless Steel Wire Rope Mesh Wire Rope Woven Wire Mesh Fence Mesh 0

Stainless Steel Wire Rope Mesh Wire Rope Woven Wire Mesh Fence Mesh 1

Feature:

Stainless steel provides the highest corrosion resistance.
Elegant and robust.
Light, robust yet transparent.
UV and weather resistant.
Flexible and pliable.
Climb resistant and prevents a secure foothold.
The minimum visual impact on views.
Recyclable.
Good price-benefit-ratio.
Easy installation and low maintenance.
Weave opening, meet any exact specification.

The type of stainless steel rope mesh:

There are two types of flexible wire rope meshes in construction: ferrule type and knotted.

Stainless Steel Wire Rope Mesh Wire Rope Woven Wire Mesh Fence Mesh 4

Stainless Steel Wire Rope Mesh Wire Rope Woven Wire Mesh Fence Mesh 5

Applications:
1. Green Facade - Cable System for Most Climbing Plants

2. Aviary Netting - Lightweight, Durable and Long Lasting

3. Cable Zoo Mesh - Solution to Enclosing Most Animals

4. Helipad Safety Net - Modular Heliport Webbing

5. Safety Net - Structural Measure to Prevent Suicide

6. Cable Mesh - Excellent Solution to Safety

7. Steel Mesh Balustrade - bridge, stair, balcony, path

Stainless Steel Wire Rope Mesh Wire Rope Woven Wire Mesh Fence Mesh 6
