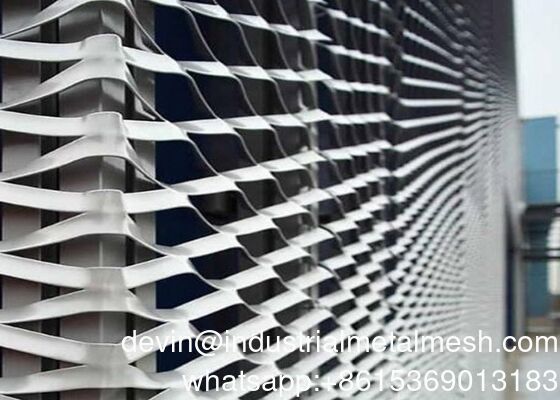

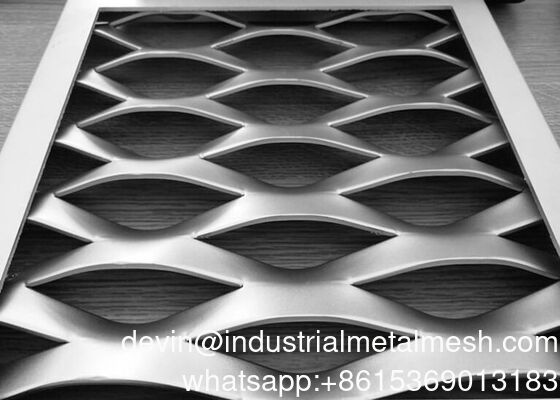

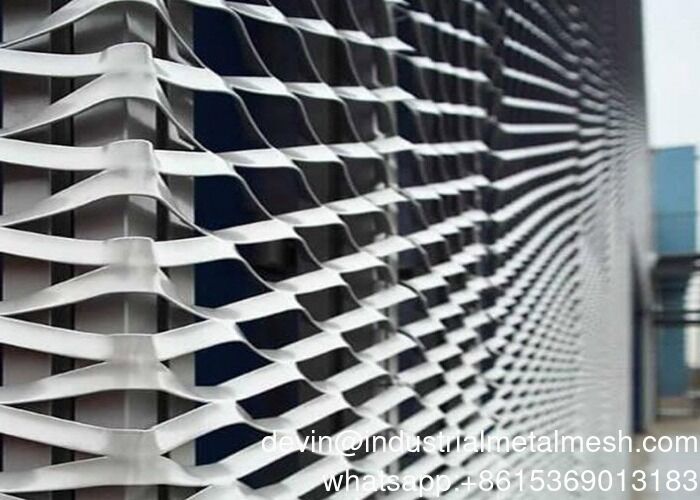

Heavy Duty Walkways Hexagonal Hole Flat Expanded Metal Mesh Sheet
Product Description
Expanded metal mesh or Expanded metal sheet is a multipurpose and economical product made from metal coil sheet that is uniformly die-cut and expanded when the sheet moves through progressive dies on a press, and the sheet is cut and expanded to many uniform diamond shapes. The pattern can be made by using different gauge and material as well as the size of the diamond.
Expanded metal mesh is a very economical and practical way to assure strength and safety, so it has a wide range of applications like EMI/RFI shielding, furniture, security walls, protection cover, floors and doors, and fencing, etc.
Amber wire mesh offers Standard Expanded Metal Mesh and Flattened Expanded Metal made from a wide range of materials including carbon steel sheet, stainless steel sheet, aluminum sheet, brass sheet and copper sheet, etc.
We also provide Expanded Metal Grating made from carbon steel plates for heavy-duty applications, which is more stronger and durable.
1.Material:
Stainless Stee Sheet
Iron Steel Sheet
Aluminium Sheet
We can supply expanded netting in a variety of materials including aluminum, platinum, brass, steel, stainless steel, nickel, etc.
2. Features :
1.Comes from the press after having been die cut and expanded.
2.Ideal for safety guards on equipment or machinery
3.Economical and wear-resistance
3.Usage:
1. Architectural Panels
2. Billboard Walkway
3. Catwalks & Walkway
4. Stairs & Balustrade
5. Drying Racks
6. Security Fences/Grilles
7. Window Guards & Machinery Guards
8. Garden Furnitures
4.specification
Lwm: 3.0mm-100mm
Swm: 2.0mm-80mm
Strand Thickness: Up to 8.0mm
Strand Width: 0.3mm-8.0mm
Width: 0.5m-2.4m
Sheet size is according to client's requirement
Length: According to Your Requirement
| mesh thickness(mm) |
distance short(mm) |
distance long(mm) |
strip(mm) |
width (m) |
length(m) |
weight(kg/m2) |
| 0.5 |
2.5 |
4.5 |
0.5 |
0.5 |
1 |
1.8 |
| 0.5 |
10 |
25 |
0.5 |
0.6 |
2 |
0.73 |
| 0.6 |
10 |
25 |
1 |
0.6 |
2 |
1 |
| 0.8 |
10 |
25 |
1 |
0.6 |
2 |
1.25 |
| 1 |
10 |
25 |
1.1 |
0.6 |
2 |
1.77 |
| 1 |
15 |
40 |
1.5 |
2 |
4 |
1.85 |
| 1.2 |
10 |
25 |
1.1 |
2 |
4 |
2.21 |
| 1.2 |
15 |
40 |
1.5 |
2 |
4 |
2.3 |
| 1.5 |
15 |
40 |
1.5 |
1.8 |
4 |
2.77 |
| 1.5 |
23 |
60 |
2.6 |
2 |
3.6 |
2.77 |
| 2 |
18 |
50 |
2.1 |
2 |
4 |
3.69 |
| 2 |
22 |
60 |
2.6 |
2 |
4 |
3.69 |
| 3 |
40 |
80 |
3.8 |
2 |
4 |
5.00 |
| 4 |
50 |
100 |
4 |
2 |
2 |
11.15 |
| 4.5 |
50 |
100 |
5 |
2 |
2.7 |
11.15 |
| 5 |
50 |
100 |
5 |
1.4 |
2.6 |
12.39 |
| 6 |
50 |
100 |
6 |
2 |
2.5 |
17.35 |
| 8 |
50 |
100 |
8 |
2 |
2.1 |
28.26 |
The expanded metal mesh also called expanded metal or expanded metal sheet, it is one of the most widely used metal wire mesh products. The expanded metal mesh is produced of whole metal sheet by punching and expanding process, the material of expanded metal mesh can be stainless steel, carbon steel, galvanized steel or aluminum. The mesh holes of expanded metal mesh is uniform, and the mesh structure is firm and stable, this makes the mesh achieve very high strength with light weight.
expanded metal mesh has very wide applications, the standard grade can be used as mechanical equipment protection shell, handicraft manufacturing, speaker cover net, highway guardrail, green belt protection, etc. Heavy grade expanded metal mesh can be used as pedal net in heavy machinery and boiler, mine, locomotive and ship working platform. Also expanded mesh can be used in industry, railway, shipbuilding, coal, light industry, textile, building materials, agriculture and sideline industry, breeding industry, landscape, mineral, petrochemical, household appliances, and also used in integrated ceiling, doors and windows,security channel, corridor, stair baffle, tables, chairs, benches, vents, various cargo bearing frames, shelves, etc.
| Material |
Steel, Aluminium,Stainless steel, Bronze, Brass, Titanium, and so on. |
| Thickness |
0.3-12.0mm |
| Hole shape |
round, square, diamond,rectangular perforations,octagonal cane,grecian, |
| plum blossom etc,can be made as your design. |
| Mesh size |
1220*2440mm,1200*2400mm,1000*2000mm or customized |
| Surface treatment |
1.Powder coated |
| 2.Fluorocarbon spraying(PVDF) |
| 3.Polishing |
| |
1.Aerospace: nacelles, fuel filters, air filters |
| |
| |
| 4.Automotive: fuel filters, speakers, diffusers, muffler guards, protective radiator grills |
| 5.Hammer mill: screens for sizing and separating |
| 6.Industrial equipment: conveyors, dryers, heat dispersion, guards, diffusers, EMI/RFI protection |
| 7.Pollution control: filters, separators |
| 8.Mining: screens |
| 9.Security: screens, walls, doors, ceilings, guards |
| 10.Sugar processing: centrifuge screens, mud filter screens, backing screens, filter leaves, screens for dewatering and desanding, diffuser drainage plates |
| Features |
1.can be formed easily |
| 2.can be paint or polished |
| 3.easy installation |
| 4.attractive appearance |
| 5.wide range of thicknesses available |
| 6.largest selection of hole size patterns and configurations |
7.durableApplication
| 1.Aerospace: nacelles, fuel filters, air filters |
| 2.Appliances: dish washer strainers, microwave screens, dryer and washer drums, cylinders for gas burners, water heaters and heat pumps, flame arrestors |
| 3.Architectural: stairs, ceilings, walls, floors, shades, decorative, sound absorption |
|
| Package |
1.On pallet with waterproof cloth |
| 2.In wooden case with waterproof paper |
| 3.In carton box |
| 4.In roll with woven bag |
| 5.In bulk or In bundle |
|
Characteristics of Metal Expansion Mesh
Expanded metal mesh, also known as expanded metal or stretched metal, is a mesh material that is precision-cut and stretched from a single piece of sheet metal. It is not woven or welded together, and its most notable feature is the absence of welds and waste, resulting in a unique diamond-shaped mesh structure.
Packaging Details
Steel pallet and waterproof plastic
wooden case
One 20 feet container can load:
Black steel perforated metal approximate 20-23 tons
Aluminum perforated metal mot in 10-17 tons
Every two pieces should put one paper to protect the surface.
Port
TIANJIN
Lead time:
| Quantity(pieces) |
1 - 100 |
101 - 5000 |
5001 - 10000 |
>10000 |
| Lead time (days) |
7 |
15 |
20 |
To be negotiated |
