Animal Zoo Bird Cage Exterior Enclosure Stainless Steel Wire Rope Security Mesh

Large Image : Animal Zoo Bird Cage Exterior Enclosure Stainless Steel Wire Rope Security Mesh

Product Details:

Place of Origin:	Hebei, China
Brand Name:	QIJIE
Certification:	CE,SGS,ISO
Model Number:	SW-004

Payment & Shipping Terms:

Minimum Order Quantity:	10 square meters
Packaging Details:	wooden case
Delivery Time:	10-15 working days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	3000 m2/month

Contact Now

Detailed Product Description

Material:	STAINLESS STEEL WIRE	Type:	Rope Mesh, Ferrule Type Or Knotted Type
Application:	Protecting Mesh	Weave Style:	Plain Weave
Technique:	Woven	Model Number:	Steel Wire Rope Mesh
Processing Service:	Weave	Raw Material:	Stainless Steel 304 316, Galvanized Wire
Accessories:	All Could Be Provided	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	stainless steel bird cage enclosure , zoo bird cage security mesh , exterior bird cage wire rope

Animal Zoo Bird Cage Exterior Enclosure Stainless Steel Wire Rope Security Mesh

Stainless steel cable netting. also called X-TEND mesh/Webnet, is manufactured from robust, high-grade DIN 1.4401/AISI 316 stainless steel cables. The cables are swaged with tinned copper (type CX) or stainless steel (types CXE and CXS) clamps in a special process to form a mesh structure that is both stressable and flexible and suited for either two- or three-dimensional applications. X-TEND keeps its shape indefinitely and stands for long lasting use.
X-TEND is fabricated from high-quality and robust stainless steel cables (material: AISI316). These are linked together by a special method using stainless steel ferrules to form a stressable yet flexible structure for two- or three-dimensional applications. X-TEND keeps its shape indefinitely and requires little maintenance only during its long lifetime.

Specification

Standard areas
Rope diameter	Mesh Width
1,0 mm	25 mm - 200 mm
1,5 mm	18 mm - 200 mm
2,0 mm	30 mm - 400 mm
3,0 mm	40 mm - 400 mm

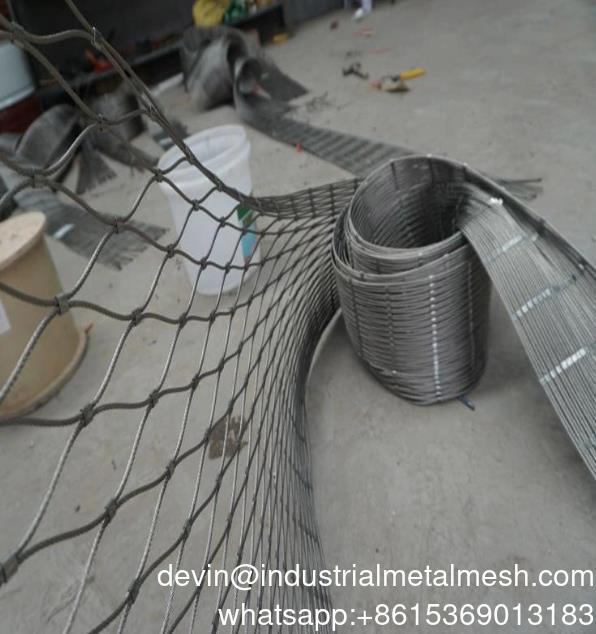

Animal Zoo Bird Cage Exterior Enclosure Stainless Steel Wire Rope Security Mesh 0

1.Flexible stainless steel cable mesh (Inter-woven type)

Our Flexible stainless steel cable mesh products are supplied in two main series: Inter-woven and Ferrule Type. Inter-woven mesh are hand-woven which was also called hand-woven mesh is made from fine s.s.wire rope . The rope construction is 7 x 7 or 7 x 19 and made from AISI 304 or AISI 316 material group.This mesh has strong tensile strength , high flexibility,high transparence and wide span.The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc. Its more and more appreciated by garden designers and architect all over the world.

The specification of stainless steel knotted rope mesh

Code	Rope Construction	Rope Diameter		Opening Size		Breaking Force
Code	Rope Construction	Inch	mm	Inch	mm	KN
BR-01	7 × 19	1/8	3.2	4.7" × 4.7"	120 × 120	7.38
BR-02	7 × 19	1/8	3.2	4" × 4"	102 × 102	7.38
BR-03	7 × 19	1/8	3.2	3.6" × 3.6"	90 × 90	7.38
BR-04	7 × 19	1/8	3.2	3" × 3"	76 × 76	7.38
BR-05	7 × 19	1/8	3.2	2" × 2"	51 × 51	7.38
BR-06	7 × 7	3/32	2.4	4" × 4"	102 × 102	4.18
BR-07	7 × 7	3/32	2.4	3.6" × 3.6"	90 × 90	4.18
BR-08	7 × 7	3/32	2.4	3" × 3"	76 × 76	4.18
BR-09	7 × 7	3/32	2.4	2.4" × 2.4"	60 × 60	4.18
BR-10	7 × 7	3/32	2.4	2" × 2"	51 × 51	4.18
BR-11	7 × 7	5/64	2	3" × 3"	76 × 76	3.17
BR-12	7 × 7	5/64	2	2.4" × 2.4"	60 × 60	3.17
BR-13	7 × 7	5/64	2	2" × 2"	51 × 51	3.17
BR-14	7 × 7	5/64	2	1.5" × 1.5"	38 × 38	3.17
BR-15	7 × 7	1/16	1.6	3" × 3"	76 × 76	2.17
BR-16	7 × 7	1/16	1.6	2" × 2"	51 × 51	2.17
BR-17	7 × 7	1/16	1.6	1.5" × 1.5"	38 × 38	2.17
BR-18	7 × 7	1/16	1.6	1.2" × 1.2"	30 × 30	2.17

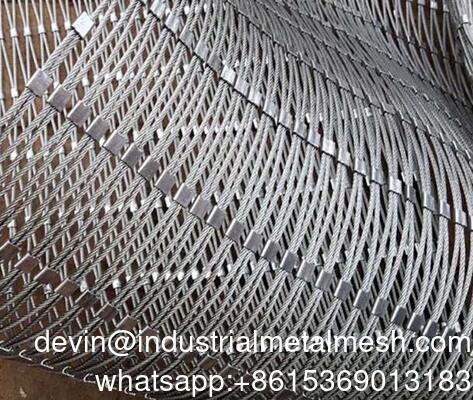

2.Flexible stainless steel cable mesh (Ferrule type)

Our flexible stainless steel cable mesh are supplied in two main series : Inter-woven and Ferrule. Our mesh is made from s.s.wire rope in various material type like SUS304,SUS304L,SUS316,SUS316L etc and two main strand structures:7*7 and 7*19.cable dia.1mm-4mm and mesh size:20mm-160mm. The ferrule type series are sub-divided into aluminum alloy mesh ,stainless steel ,tinned copper and nickled copper mesh by the material of the ferrule. The ferrule type mesh, are more used in fields like balustrades on bridges and staircases, large barrier fences, and building facade trellis systems. As an emerging product on architectural decoration and protection, stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world.

The specification of stainless steel ferrule rope mesh

Code	Rope Construction	Rope Diameter		Aperture	Breaking Force
Code	Rope Construction	Inch	mm	mm	kN
BR-01	7 × 19	1/8	3.2	120 × 208	7.38
BR-02	7 × 19	1/8	3.2	100 × 173	7.38
BR-03	7 × 19	1/8	3.2	90 × 156	7.38
BR-04	7 × 7	3/32	2.4	100 × 173	4.18
BR-05	7 × 7	3/32	2.4	90 × 156	4.18
BR-06	7 × 7	3/32	2.4	80 × 139	4.18
BR-07	7 × 7	3/32	2.4	70 × 121	4.18
BR-08	7 × 7	5/64	2	100 × 173	3.17
BR-09	7 × 7	5/64	2	90 × 156	3.17
BR-10	7 × 7	5/64	2	80 × 139	3.17
BR-11	7 × 7	5/64	2	70 × 121	3.17
BR-12	7 × 7	1/16	1.6	80 × 139	2.17
BR-13	7 × 7	1/16	1.6	70 × 121	2.17
BR-14	7 × 7	1/16	1.6	60 × 104	2.17
BR-15	7 × 7	1/16	1.6	51 × 87	2.17
BR-16	7 × 7	3/64	1.2	80 × 139	1.22
BR-17	7 × 7	3/64	1.2	60 × 104	1.22
BR-18	7 × 7	3/64	1.2	50 × 87	1.22

Animal Zoo Bird Cage Exterior Enclosure Stainless Steel Wire Rope Security Mesh 2
