Durable Mesh Vibrating Screening Mesh in Mining and Quarry Applications

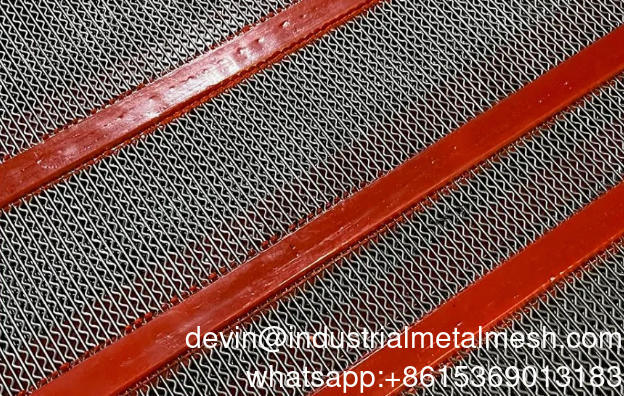

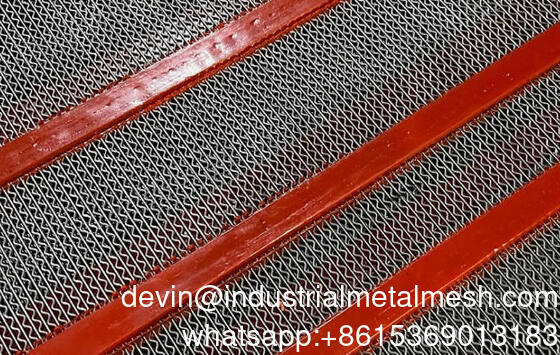

Large Image : Durable Mesh Vibrating Screening Mesh in Mining and Quarry Applications

Product Details:

Place of Origin:	China
Brand Name:	qijie
Certification:	vibrating screen mesh
Model Number:	vibrating screen mesh

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	wood case
Delivery Time:	15-18days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100pcs

Contact Now

Detailed Product Description

Features:	Even Mesh, Strong Structure	Hole Size:	2.5mm - 130mm
Application:	Mining, Quarrying, Mineral Processing	Surfacetreatment:	Galvanized, Painted, Or Coated
Technic:	Woven Mesh	Free Sample:	Yes
Hook:	Hook With Steel Sheet	Install:	Hooked
Elastic Resilience:	34 Percent	Specification:	1.5M2.0M ； 2M3M ； 3M*2.5M
Surface Treatment:	Galvanized Or Painted.	Installationmethod:	Bolted Or Hooked Onto Screen Frames
Hole Shape:	Rectangle	Surface:	Natural Powder Coating
Productname:	Mining Screen Mesh
Highlight:	durable mining screen mesh , vibrating quarry screen mesh , mining vibrating screen mesh

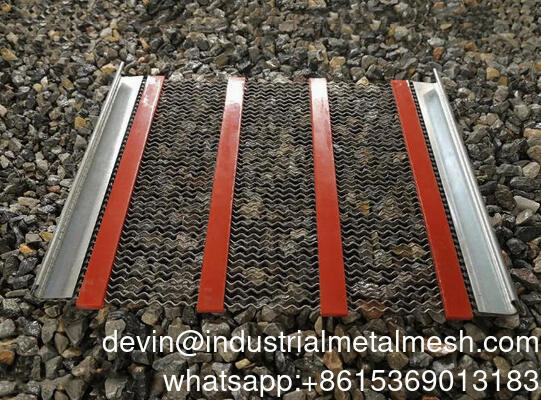

Durable Mesh Vibrating Screening Mesh in Mining and Quarry Applications

Durable Vibrating Screening Mesh is designed to withstand the harsh conditions of mining and quarry operations. Made from high-tensile steel or wear-resistant alloys, this mesh delivers excellent strength, impact resistance, and long service life. It is ideal for screening heavy materials such as gravel, crushed stone, sand, and ores. Engineered for compatibility with various vibrating screen types, it ensures high throughput and precise material separation. The mesh is available in multiple weave styles-including square, slotted, and self-cleaning patterns-to prevent clogging and improve screening efficiency. Custom sizes, wire diameters, and hook types can be tailored to meet specific operational requirements.

Aperture Square Weave	Light duty Wire Dia kg/m²OA%			Medium Wire Dia kg/m OA%			Heavy Duty Wire Dia kg/m²OA%
2.00							1.37	7.1	35
3.15				2.00	9.9	37	2.50	14.1	31
4.0	2.00	8.50	44	2.50	12.2	38	3.05	16.8	32
5.0	2.00	7.80	51	2.50	16.6	44	3.05	14.7	38
5.6	2.50	9.80	48	3.05	13.7	41	4.00	21.2	34
6.35	2.50	8.89	51	3.05	12.6	46	4.00	19.6	38
6.8	2.50	9.00	51	3.05	10.0	44	4.00	19.7	37
7.1	2.50	8.80	55	3.05	11.9	48	4.00	18.3	41
8	2.50	10.80	54	4.00	16.9	44	5.00	24.4	38
9	3.05	9.80	55	4.00	15.6	48	5.00	22.7	44
10	3.05	9.10	58	4.00	14.5	51	5.00	21.2	44
11.2	3.05	10.40	54	5.00	19.6	48	5.60	28.6	44
12.5	4.00	12.30	57	5.00	18.1	51	5.60	20.0	47
14	4.00	16.70	54	5.00	20.0	51	6.80	24.6	48
16	5.00	15.10	58	5.60	19.5	56	6.80	22.6	51
18	5.00	14.50	58	6.80	20.7	55	7.10	25.0	51
20	5.60	14.00	61	6.80	19.2	58	7.10	24.0	54
22	5.60	17.60	61	7.10	21.5	57	8.00	26.7	54
25	6.80	16.10	64	7.10	20..1	60	8.00	24.6	57
28	7.00	14.70	63	8.00	19.0	61	9.00	27.8	57
32	8.00	20.60	64	9.00	26.0	60	10.00	30.4	58
38	8.00	18.70	67	9.00	28.1	64	10.00	27.9	61
40	9.00	21.00	67	10.00	25.4	64	11.20	31.1	61
45	9.00	19.50	69	10.00	23.4	67	11.20	28.4	64
50	10.00	23.20	69	11.20	26.0	67	12.50	31.8	64
56	10.00	19.20	72	11.20	28.7	69	12.50	29.0	67
63	10.00	17.40	75	11.20	24.5	72	12.50	25.1	70
76.2	10.00	14.80	78	11.20	16.0	75	12.50	20.0	73
80	10.00	16.00	79	11.20	17.5	72	12.50	21.5	75
90	10.00	14.00	81	11.20	15.7	79	12.70	19.4	77
100	10.00	10.00	82	11.20	14.3	81	12.70	17.6	79

Wear Resistance

Our manganese steel mesh stands out with its exceptional wear resistance, a hallmark of its superior material properties. It confidently withstands friction and impact from various materials, ensuring sustained screening efficiency over prolonged use.

High Strength

Boasting high hardness and exceptional strength, our high manganese steel mesh is designed to endure substantial mechanical stress and rigorous vibrations without any deformation or damage, guaranteeing long-lasting performance.

Adaptability

Manganese steel mesh demonstrates remarkable adaptability, catering to the screening needs across diverse environments and materials such as coal, ores, aggregates, and sands. It is a preferred choice across industries like mining, construction, and metallurgy.

Customizability

Tailored to meet specific screening requirements, our manganese steel mesh offers versatile customizability in terms of specifications, sizes, and shapes, adapting effortlessly to different working scenarios and demands.
