Factory Polyurethane Screen Mesh for Mining Coal Mesh

Large Image : Factory Polyurethane Screen Mesh for Mining Coal Mesh

Product Details:

Place of Origin:	China
Brand Name:	qijie
Certification:	polyurethane screen mesh
Model Number:	polyurethane screen mesh

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	wood case
Delivery Time:	15-18days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100pcs

Contact Now

Detailed Product Description

Features:	Even Mesh, Strong Structure	Hole Size:	2.5mm - 130mm
Application:	Mining, Quarrying, Mineral Processing	Surfacetreatment:	Galvanized, Painted, Or Coated
Technic:	Woven Mesh	Free Sample:	Yes
Hook:	Hook With Steel Sheet	Install:	Hooked
Elastic Resilience:	34 Percent	Specification:	1.5M2.0M ； 2M3M ； 3M*2.5M
Surface Treatment:	Galvanized Or Painted.	Installationmethod:	Bolted Or Hooked Onto Screen Frames
Hole Shape:	Rectangle	Surface:	Natural Powder Coating
Productname:	Mining Screen Mesh
Highlight:	polyurethane mining screen mesh , coal mining screen mesh , factory polyurethane screen mesh

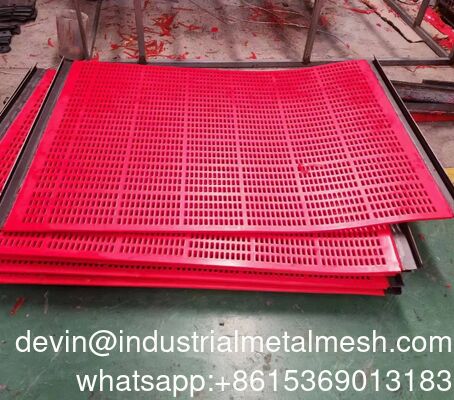

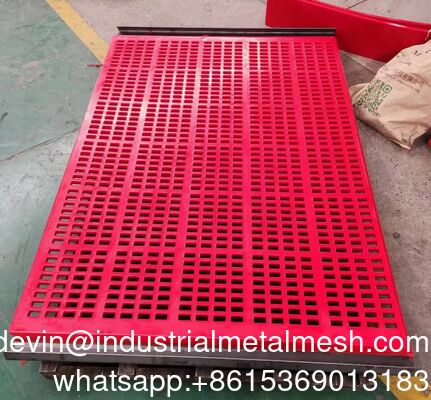

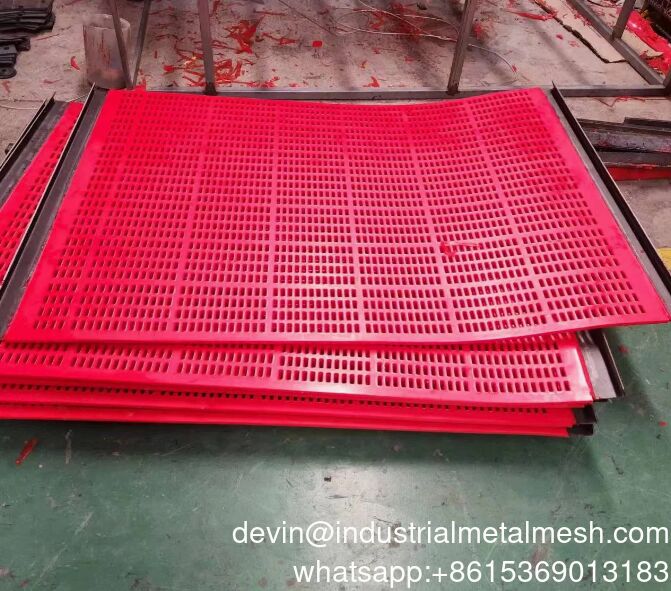

Factory Polyurethane Screen Mesh for Mining Coal Mesh

Polyurethane vibrating screen is made of polyurethane materials. It mainly used for miningmineral processing, grading, dehydration and other screening machines replace metal sieve (mesh) of a new product. Mainly used in coal, iron ore, copper, gold and other ores grading, screening, dewatering and other places. It can separate and screen almost all of materials from coarse stones to fine materials and ideal for both dry and wet materials.

Tensioned polyurethane screen mesh (metallic hooks)

Tensioned polyurethane screen mesh (metallic hooks) is a kind that widely used at present. External force from two side hooks was attached to the beam to form a better elastic screen surface. It has a special designed fastening hooks which can clamp screens into the separator. with the lightweight it is easy to install in screening situations where material specifications are frequently changed.

Tensioned polyurethane screen is ideal for all screening applications where screening efficiency and noise reduction is crucial.

Specification of Polyurethane Screen
Product Name	Material	Thickness	Hole size
Steel Core Polyurethane Screen	steel wire inside and polyurethane outside	2.5-5mm	2-25mm
Tensioned Polyurethane Screen	polyurethane and steel frame	25-60mm	5-50mm
Modular Polyurethane Screen Mesh	polyurethane and embedded steel frame	30-60mm	2.5-130mm
Polyurethane Dewatering Screen	steel frame and polyurethane surface	30, 45, 50mm	0.1-2.5mm(W), 4-16mm(L)

Application of Polyurethane Screen:

Polyurethane screen belongs to mining equipment, which is widely used in various industries such as screening, filtration, dehydration, and desliming. It is suitable for vibrating screens in metallurgy, coal, mining, chemical industry, construction, mechanical industry etc., in addition to screening fine and medium-sized bulk materials, it can also be used for dry and astringent screens. And it also can be used for grading certain corrosive materials.

Compared with rubber and metal mesh, the advantages of Polyurethane Screen is:

1. High screening Efficiency --- 2-5 times of the ordinary screen.
2. Large bearing capacity --- 2.5 times more than rubber sieve.
3. Long service life --- Can be used for six months to more than one year.
4. Good abration and corrosion resistance --- condition of using water or oil as the medium.
5. Maintanance and replacement is low --- Hole can't be plugged& washing-free.
6. Low noise --- it has well vibration-absorbing performance.
7. Rational design of the screen hole --- limit size of the particleswill not block mesh.
8. Widely used --- mining, metallurgy, coal, coking, chemical and other industries.
9. Good wet resistant performance --- work on the water condition.
