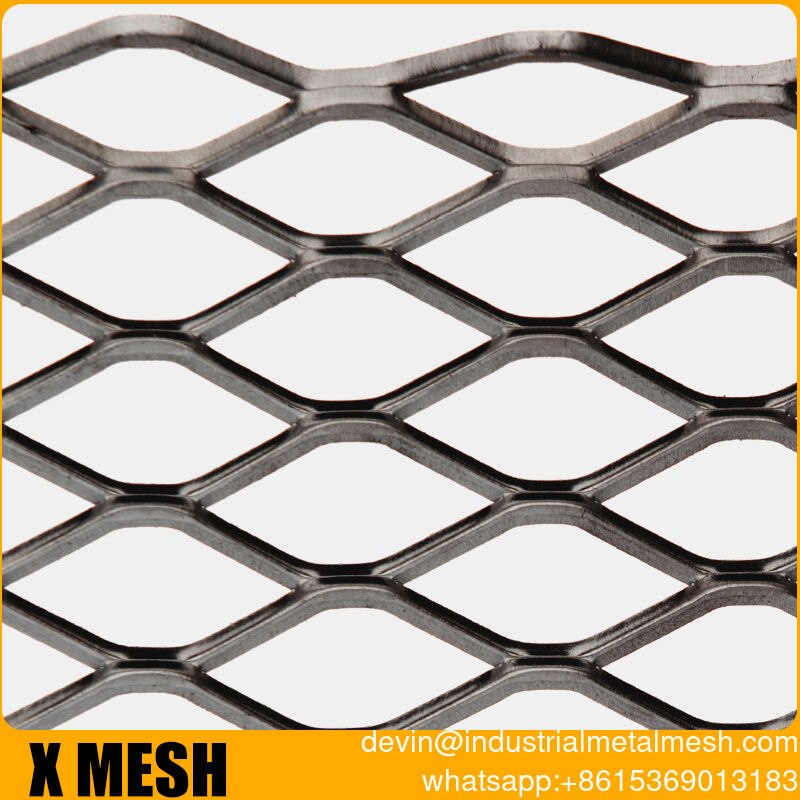

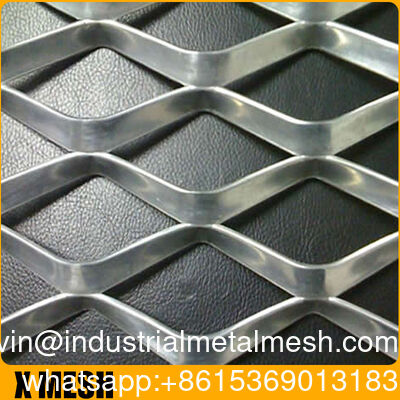

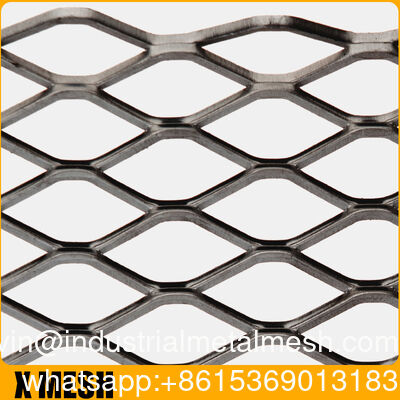

Stainless Steel / Copper Expanded Metal Grill Mesh Expanded Metal Mesh
Product Description
Expanded metal (also called stretch metal or expandable metal) is a versatile product that has countless applications throughout industry. Made from various materials, it is rigid, non-ravel piece of metal that is slit and stretched in the expanding process, making it a greater strength to weight ratio than solid sheet steel. No metal is lost during the course of manufacturing.
Expanded metal comes in four basic types: standard expanded metal, flattened expanded metal, decorative expanded metal and expanded metal grating. The versatility of expanded metal makes it ideal for industrial, commercial and domestic applications.
Main Base Materials:
Mild steel (Q235/Q355): Cost-effective, suitable for load-bearing scenarios such as concrete reinforcement and foundation protection, with a tensile strength of ≥375MPa at room temperature;
Stainless steel (304/316): Strong corrosion resistance, suitable for humid environments (e.g., basements, tunnels) or high-end buildings (e.g., commercial complex facades);
Aluminum alloy (6061): Lightweight (density only 2.7g/cm³), suitable for scenarios sensitive to self-weight such as ceilings and indoor partitions.
1.Material:
Stainless Stee Sheet
Iron Steel Sheet
Aluminium Sheet
We can supply expanded netting in a variety of materials including aluminum, platinum, brass, steel, stainless steel, nickel, etc.
2. Features :
1.Comes from the press after having been die cut and expanded.
2.Ideal for safety guards on equipment or machinery
3.Economical and wear-resistance
3.Usage:
1. Architectural Panels
2. Billboard Walkway
3. Catwalks & Walkway
4. Stairs & Balustrade
5. Drying Racks
6. Security Fences/Grilles
7. Window Guards & Machinery Guards
8. Garden Furnitures
4.specification
Lwm: 3.0mm-100mm
Swm: 2.0mm-80mm
Strand Thickness: Up to 8.0mm
Strand Width: 0.3mm-8.0mm
Width: 0.5m-2.4m
Sheet size is according to client's requirement
Length: According to Your Requirement
| Main Materials: | Mild steel, stainless steel, aluminum; precious materials such as brass, copper, titanium, and platinum are also available. | | Hole Patterns: | Diamond, square, round, hexagonal, tortoiseshell, etc. | | Colors: | White, red, blue, purple, orange, green, black, or other RAL colors. | | Sheet Thickness: | 0.3 mm - 10.0 mm. | | Surface Treatment: | Galvanizing, painting, powder coating, polishing, anodizing, etc. | | LWM: | 4.5 mm - 100 mm. | | SWM: | 2.5 mm - 60 mm. | | Length: | ≤ 4000 mm. | | Width: | ≤ 1500 mm. | | Package: | On a steel pallet with waterproof cloth or in a wooden box with waterproof paper. |
|
The expanded metal mesh also called expanded metal or expanded metal sheet, it is one of the most widely used metal wire mesh products. The expanded metal mesh is produced of whole metal sheet by punching and expanding process, the material of expanded metal mesh can be stainless steel, carbon steel, galvanized steel or aluminum. The mesh holes of expanded metal mesh is uniform, and the mesh structure is firm and stable, this makes the mesh achieve very high strength with light weight.
expanded metal mesh has very wide applications, the standard grade can be used as mechanical equipment protection shell, handicraft manufacturing, speaker cover net, highway guardrail, green belt protection, etc. Heavy grade expanded metal mesh can be used as pedal net in heavy machinery and boiler, mine, locomotive and ship working platform. Also expanded mesh can be used in industry, railway, shipbuilding, coal, light industry, textile, building materials, agriculture and sideline industry, breeding industry, landscape, mineral, petrochemical, household appliances, and also used in integrated ceiling, doors and windows,security channel, corridor, stair baffle, tables, chairs, benches, vents, various cargo bearing frames, shelves, etc.
| Material | Steel, Aluminium,Stainless steel, Bronze, Brass, Titanium, and so on. | | Thickness | 0.3-12.0mm | | Hole shape | round, square, diamond,rectangular perforations,octagonal cane,grecian, | | plum blossom etc,can be made as your design. | | Mesh size | 1220*2440mm,1200*2400mm,1000*2000mm or customized | | Surface treatment | 1.Powder coated | | 2.Fluorocarbon spraying(PVDF) | | 3.Polishing | | | 1.Aerospace: nacelles, fuel filters, air filters | | | | | | 4.Automotive: fuel filters, speakers, diffusers, muffler guards, protective radiator grills | | 5.Hammer mill: screens for sizing and separating | | 6.Industrial equipment: conveyors, dryers, heat dispersion, guards, diffusers, EMI/RFI protection | | 7.Pollution control: filters, separators | | 8.Mining: screens | | 9.Security: screens, walls, doors, ceilings, guards | | 10.Sugar processing: centrifuge screens, mud filter screens, backing screens, filter leaves, screens for dewatering and desanding, diffuser drainage plates | | Features | 1.can be formed easily | | 2.can be paint or polished | | 3.easy installation | | 4.attractive appearance | | 5.wide range of thicknesses available | | 6.largest selection of hole size patterns and configurations | 7.durableApplication| 1.Aerospace: nacelles, fuel filters, air filters | | 2.Appliances: dish washer strainers, microwave screens, dryer and washer drums, cylinders for gas burners, water heaters and heat pumps, flame arrestors | | 3.Architectural: stairs, ceilings, walls, floors, shades, decorative, sound absorption |
| | Package | 1.On pallet with waterproof cloth | | 2.In wooden case with waterproof paper | | 3.In carton box | | 4.In roll with woven bag | | 5.In bulk or In bundle |
|
Application
Aerospace: Nacelles, fuel filters, air filters
Appliances: Dishwasher strainers, microwave screens, dryer and washer drums, cylinders for gas burners, water heaters and heat pumps, flame arrestors
Architectural: Stairs, ceilings, walls, floors, shades, decorative, sound absorption
Automotive: Fuel filters, speakers, diffusers, muffler guards, protective radiator grills
Hammer Mill: Screens for sizing and separating
Industrial Equipment: Conveyors, dryers, heat dispersion, guards, diffusers, EMI/RFI protection
Pollution Control: Filters, separators
Mining: Screens
Security: Screens, walls, doors, ceilings, guards
Sugar Processing: Centrifuge screens, mud filter screens, backing screens, filter leaves, screens for dewatering and desanding, diffuser drainage plates
Packaging Details
Steel pallet and waterproof plastic
wooden case
One 20 feet container can load:
Black steel perforated metal approximate 20-23 tons
Aluminum perforated metal mot in 10-17 tons
Every two pieces should put one paper to protect the surface.
Port
TIANJIN
Lead time:
| Quantity(pieces) | 1 - 100 | 101 - 5000 | 5001 - 10000 | >10000 |
| Lead time (days) | 7 | 15 | 20 | To be negotiated |
