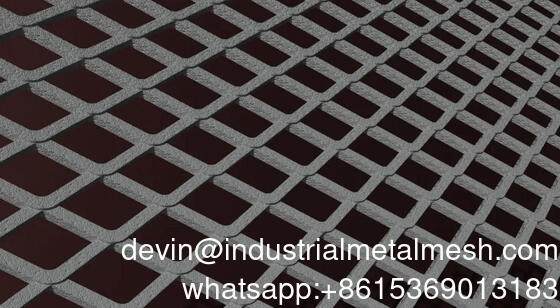

N4 N6 Metal Expanded Nickel Mesh for Alkaline Electrolyser and Battery Manufacturers
Expanded metal mesh refers to after the special metal sheet metal (sheet metal punching machine) processing, the formation of the network status of the material sheet.Steel mesh is a variety of metal screen industry. Also known as metal plate mesh, diamond mesh, iron net, expanded metal net, heavy steel plate net, pedal net, punching plate, aluminum, stainless steel net, net, filter net, granary antenna network, audio network etc.

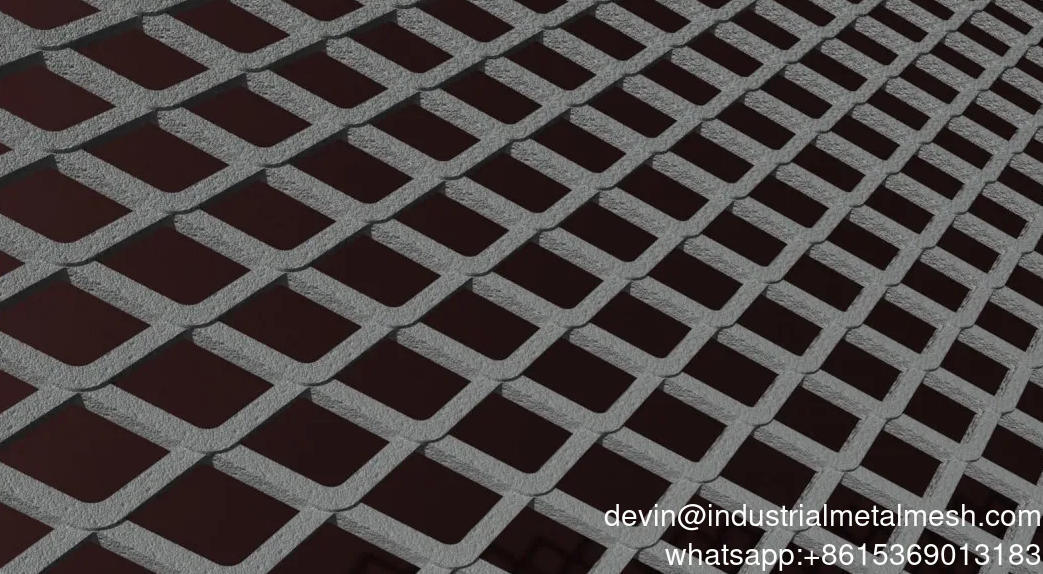

Standard expanded metal is a type of metal stock that features diamond-shaped patterns that are produced by simultaneously slitting and stretching the material.
Flattened expanded metal is made by passing raised expaned metal through a cold rolled reducing mill, leaving a flat and smooth surface.
| NICKEL MESH (EXPANDED TYPE) |
| OVERALL WIDTH |
OVERALL LENGTH |
LWD |
SWD |
SHEET THICKNESS |
STRAND WIDTH |
| ≤ 1.52 m |
≤ 11.92 m |
1.50 mm |
0.80 mm |
0.25 mm |
0.25 mm |
| 1.60 mm |
0.80 mm |
0.05 mm |
0.10 mm |
| 2.00 mm |
1.00 mm |
0.10 mm |
0.15 mm |
| 2.00 mm |
1.00 mm |
0.25 mm |
0.25 mm |
| 2.00 mm |
1.00 mm |
0.30 mm |
0.35 mm |
| 2.50 mm |
1.50 mm |
0.20 mm |
0.25 mm |
| 4.00 mm |
2.00 mm |
0.40 mm |
0.45 mm |
| 6.00 mm |
3.00 mm |
1.00 mm |
1.20 mm |
| SURFACE TREATMENT |
NONE
PLASMA SPRAY (50%ALUMINUM + 50% NICKEL)
PLASMA SPRAY (20%ALUMINUM + 80% NICKEL)
PLASMA SPRAY (80%ALUMINUM + 20% NICKEL)
FLATENING IS AVAILABLE |
Customized Specifications Acceptable. If you have any special requests for nickel meshes, please don't hesitate to contact us.
The expanded metal mesh also called expanded metal or expanded metal sheet, it is one of the most widely used metal wire mesh products. The expanded metal mesh is produced of whole metal sheet by punching and expanding process, the material of expanded metal mesh can be stainless steel, carbon steel, galvanized steel or aluminum. The mesh holes of expanded metal mesh is uniform, and the mesh structure is firm and stable, this makes the mesh achieve very high strength with light weight.
expanded metal mesh has very wide applications, the standard grade can be used as mechanical equipment protection shell, handicraft manufacturing, speaker cover net, highway guardrail, green belt protection, etc. Heavy grade expanded metal mesh can be used as pedal net in heavy machinery and boiler, mine, locomotive and ship working platform. Also expanded mesh can be used in industry, railway, shipbuilding, coal, light industry, textile, building materials, agriculture and sideline industry, breeding industry, landscape, mineral, petrochemical, household appliances, and also used in integrated ceiling, doors and windows,security channel, corridor, stair baffle, tables, chairs, benches, vents, various cargo bearing frames, shelves, etc.
| Material |
Steel, Aluminium,Stainless steel, Bronze, Brass, Titanium, and so on. |
| Thickness |
0.3-12.0mm |
| Hole shape |
round, square, diamond,rectangular perforations,octagonal cane,grecian, |
| plum blossom etc,can be made as your design. |
| Mesh size |
1220*2440mm,1200*2400mm,1000*2000mm or customized |
| Surface treatment |
1.Powder coated |
| 2.Fluorocarbon spraying(PVDF) |
| 3.Polishing |
| |
1.Aerospace: nacelles, fuel filters, air filters |
| |
| |
| 4.Automotive: fuel filters, speakers, diffusers, muffler guards, protective radiator grills |
| 5.Hammer mill: screens for sizing and separating |
| 6.Industrial equipment: conveyors, dryers, heat dispersion, guards, diffusers, EMI/RFI protection |
| 7.Pollution control: filters, separators |
| 8.Mining: screens |
| 9.Security: screens, walls, doors, ceilings, guards |
| 10.Sugar processing: centrifuge screens, mud filter screens, backing screens, filter leaves, screens for dewatering and desanding, diffuser drainage plates |
| Features |
1.can be formed easily |
| 2.can be paint or polished |
| 3.easy installation |
| 4.attractive appearance |
| 5.wide range of thicknesses available |
| 6.largest selection of hole size patterns and configurations |
7.durableApplication
| 1.Aerospace: nacelles, fuel filters, air filters |
| 2.Appliances: dish washer strainers, microwave screens, dryer and washer drums, cylinders for gas burners, water heaters and heat pumps, flame arrestors |
| 3.Architectural: stairs, ceilings, walls, floors, shades, decorative, sound absorption |
|
| Package |
1.On pallet with waterproof cloth |
| 2.In wooden case with waterproof paper |
| 3.In carton box |
| 4.In roll with woven bag |
| 5.In bulk or In bundle |
|
Characteristics of Metal Expansion Mesh
Expanded metal mesh, also known as expanded metal or stretched metal, is a mesh material that is precision-cut and stretched from a single piece of sheet metal. It is not woven or welded together, and its most notable feature is the absence of welds and waste, resulting in a unique diamond-shaped mesh structure.
Packaging Details
Steel pallet and waterproof plastic
wooden case
One 20 feet container can load:
Black steel perforated metal approximate 20-23 tons
Aluminum perforated metal mot in 10-17 tons
Every two pieces should put one paper to protect the surface.
Port
TIANJIN
Lead time:
| Quantity(pieces) |
1 - 100 |
101 - 5000 |
5001 - 10000 |
>10000 |
| Lead time (days) |
7 |
15 |
20 |
To be negotiated |
