SS304 Spiral Grid Belt Mesh for Dryer Cooler Belt

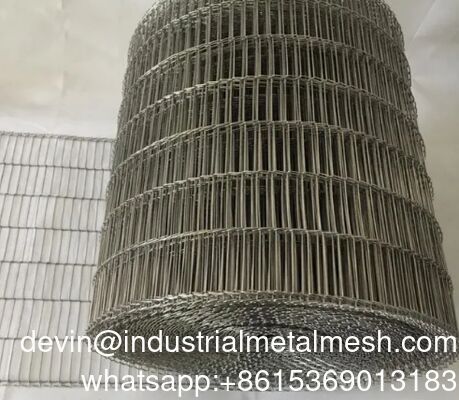

Large Image : SS304 Spiral Grid Belt Mesh for Dryer Cooler Belt

Product Details:

Place of Origin:	China
Brand Name:	qijie
Certification:	conveyor belt mesh
Model Number:	conveyor belt mesh

Payment & Shipping Terms:

Minimum Order Quantity:	10m
Packaging Details:	paper carton
Delivery Time:	15-18days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100m

Contact Now

Detailed Product Description

Material:

Stainless Steel Wire

Application:

Conveyor Mesh

Highlight:

SS304 spiral dryer belt mesh

stainless steel cooler conveyor belt

wire mesh grid belt dryer

SS304 Spiral Grid Belt Mesh for Dryer Cooler Belt

Balanced weave belt also called as wide spiral belts or wire link belts in different countries, consists of a series of alternating single or double left-hand and right-hand spirals connected by crimped or straight cross wire. Round or flattened spiral wire are used. With its unlimited choice of mesh selection, balanced spiral belting has a wide range of mesh size suiting for almost any application.
SS304 Spiral Grid Belt Mesh for Dryer Cooler Belt 0

Item	balanced weave belt
Wire diameter	1.2 mm, 1.4 mm, 1.5 mm, 1.6 mm, 1.8 mm, 2 mm, 2.5 mm, 3 mm
Cross wire diameter	1.2 mm - 4.0 mm.
Flat wire size	1.0 mm × 0.7 mm to 6.0 mm × 3.0 mm
Spiral wire pitch	2.8 mm to 40 mm
Cross rod pitch	5 mm to 50.8 mm
Belt width	200 mm to 5,000 mm
Working temperature	depending on the material
Material available	carbon steel, SS 201, SS 304, SS 316, SS 314

SS304 Spiral Grid Belt Mesh for Dryer Cooler Belt 1

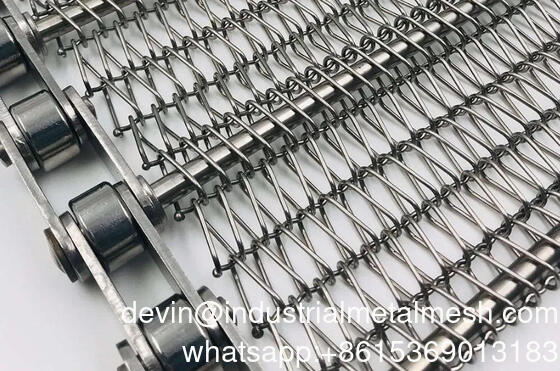

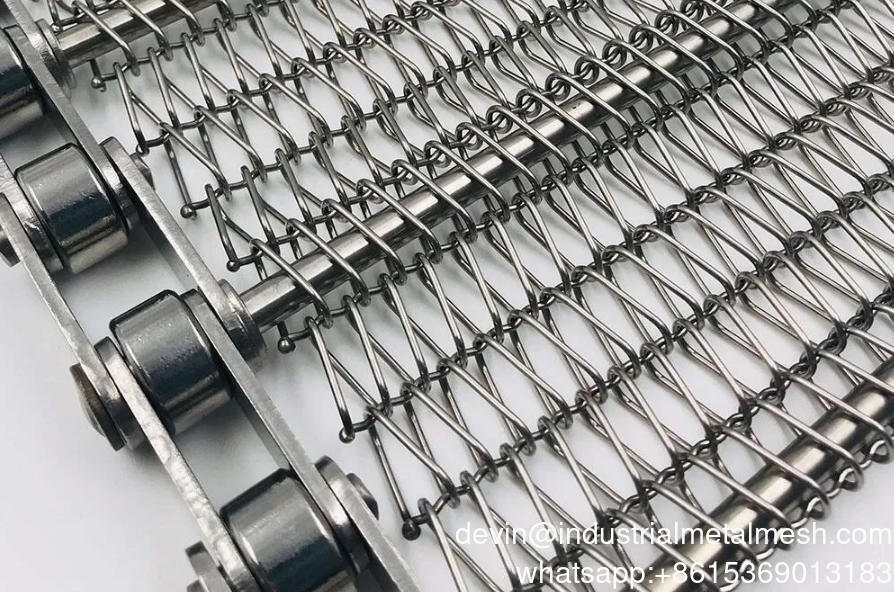

Chain Driven Belt is driven with a cross rod which connects the chain strands by either passsing through or under the wire mesh fabric. The density of wire mesh fabric is decided by the size of the products.
Chain Driven Belt characteristics: chain drive, smooth running, little relative pressure on wire mesh fabric.

To extend the lifespan of balanced weave conveyor belt and ensure the high efficient working and conveying, we can supply different edge types for your choice. The main types of balanced weave conveyor belts are as follows:
SS304 Spiral Grid Belt Mesh for Dryer Cooler Belt 2

SS304 Spiral Grid Belt Mesh for Dryer Cooler Belt 3
