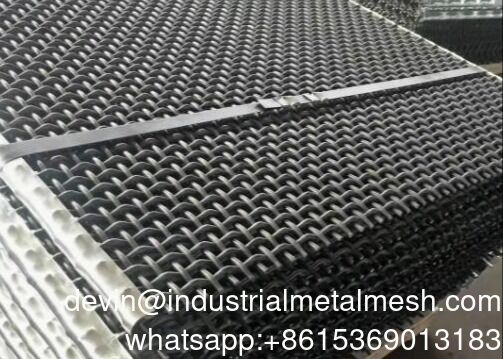

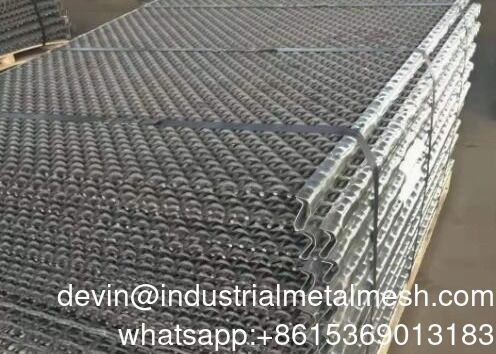

Corrosion Resistant Crimped Woven Wire Mesh Square Hole Shaped for Mine Sieving

Large Image : Corrosion Resistant Crimped Woven Wire Mesh Square Hole Shaped for Mine Sieving

Product Details:

Place of Origin:	Hebei ,China
Brand Name:	Xmesh
Certification:	SGS
Model Number:	MVSM

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Packaging Details:	Pallets
Delivery Time:	15-25days
Payment Terms:	TT/LC
Supply Ability:	1000 pcs per month

Contact Now

Detailed Product Description

Material:	STAINLESS STEEL WIRE	Type:	Crimped Wire Mesh
Application:	Woven Wire Mesh	Weave Style:	Plain Weave
Technique:	Woven	Model Number:	Vibrating Screen Mesh
Processing Service:	Bending, Welding, Decoiling, Cutting, Punching	Delivery Time:	31-45 Days
Surface Treatment:	Galvanized Or Painted.	Mesh Size:	1mm - 100mm.
Hole Type:	Square, Rectangular And Long Slot.	Opening Size:	2.0 - 80.0 Mm
Wire Diameter:	0.8 - 8 Mm	Width:	1.2m
Length:	30m	Hook:	Hook With Steel Sheet
Hook Degree:	60degree	Weaving Type:	Double Crimp
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	corrosion resistant mining screen mesh , crimped woven wire mesh for sieving , square hole mine sieving mesh

Corrosion Resistant Crimped Woven Wire Mesh Square Hole Shaped for Mine Sieving

Product Description

Mining screen, also known as vibrating screen mesh, quarry screen, and crusher screen, is one of the most
important and versatile parts of screening machines in the mining industry, which separates a mix of particles into two or more groups
depending on size and is widely used in a variety of sizing, grading, scalping, dewatering, wet screening, and washing applications.

In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented
to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions
of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above
or below the aperture size.
There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including
capacity requirements. We adopt high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest
conditions.

MATERIALS & PARAMETERS

Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below.
Technical Parameters of Carbon Steel Wire

Grade	Chemical Composition(%)
Grade	C	Si	Mn
45	0.42-0.50	0.52-0.60	0.50-0.80
50	0.47-0.55
55	0.52-0.60
60	0.57-0.65
65	0.62-0.70
70	0.67-0.75
65Mn	0.62-0.70		0.90-1.20
72A	0.15-0.75	0.15-0.75	0.30-0.60

Technical Parameters of Stainless Steel Wire

Grade	Chemical Composition(%)
Grade	C	Si	Mn	Cr
304	≤0.08	8.0-10.5	≤2.0	18.0-20.0
321	≤0.08	9.0-12.0	≤2.0	17.0-19.0
316	≤0.08	10.0-14.0	≤2.0	16.0-18.0
2205	≤0.03	4.5-6.5	≤2.0	21.0-23.0
2207	≤0.03	6-8	≤1.2	24.0-26.0

Corrosion Resistant Crimped Woven Wire Mesh Square Hole Shaped for Mine Sieving 1

According to the different shapes we offer, our self-cleaning screen can be divided into three categories as shown below. Corrosion Resistant Crimped Woven Wire Mesh Square Hole Shaped for Mine Sieving 2

ADVANTAGE OF MINING SCREEN

High mechanical strength, large carrying capability
High abrasion and chemical corrosion resistance
Excellent vibration and impact resistance
Large screening area
A long service life

Corrosion Resistant Crimped Woven Wire Mesh Square Hole Shaped for Mine Sieving 3
