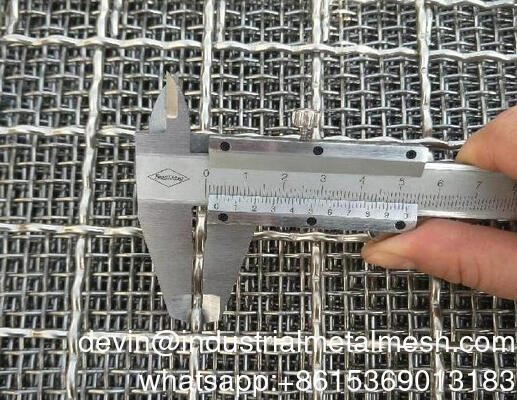

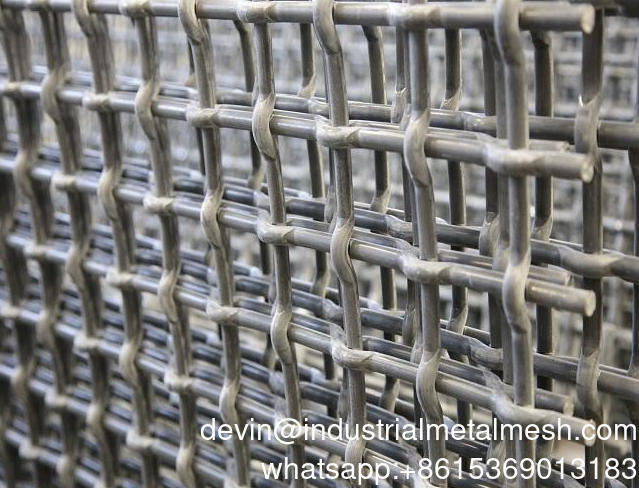

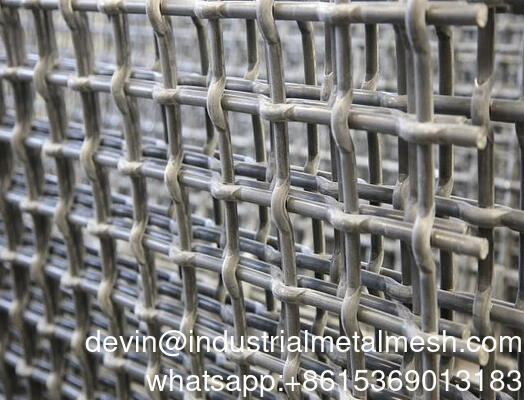

High Quality Manganese Vibrating Screen Crimp Wire Mesh Mine Vibrating Sieving Sand

High Quality Manganese Vibrating Screen Crimp Wire Mesh Mine Vibrating Sieving Sand
High Quality Manganese Vibrating Screen Crimp Wire Mesh Mine Vibrating Sieving Sand High Quality Manganese Vibrating Screen Crimp Wire Mesh Mine Vibrating Sieving Sand

Large Image :  High Quality Manganese Vibrating Screen Crimp Wire Mesh Mine Vibrating Sieving Sand

Product Details:
Place of Origin: Hebei ,China
Brand Name: Xmesh
Certification: SGS
Model Number: MVSM
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Packaging Details: Pallets
Delivery Time: 15-25days
Payment Terms: TT/LC
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Material: STAINLESS STEEL WIRE Type: Crimped Wire Mesh
Application: Woven Wire Mesh Weave Style: Plain Weave
Technique: Woven Model Number: Vibrating Screen Mesh
Processing Service: Bending, Welding, Decoiling, Cutting, Punching Delivery Time: 31-45 Days
Surface Treatment: Galvanized Or Painted. Mesh Size: 1mm - 100mm.
Hole Type: Square, Rectangular And Long Slot. Opening Size: 2.0 - 80.0 Mm
Wire Diameter: 0.8 - 8 Mm Width: 1.2m
Length: 30m Hook: Hook With Steel Sheet
Hook Degree: 60degree Weaving Type: Double Crimp
Email: Devin@industrialmetalmesh.com Whatsapp: +8615369013183
Highlight:

manganese vibrating screen mesh

,

mine vibrating crimp wire mesh

,

sand sieving screen mesh

High Quality Manganese Vibrating Screen Crimp Wire Mesh Mine Vibrating Sieving Sand​



Product Description

Product Description

1.Material:
1) Stainless steel wire(201,202,302,304,304L,310,316,316L)
2) High carbon steel wire,low carbon steel,medium carbon steel,Mn steel wire.
3) Galvanized iron wire,galvanized steel wire,non-ferrous metal wire. Other materials are available on request.
2.Application:
Crimped wire mesh is used as fence or filters in a lot of industries;Heavy Duty Crimped wire mesh are also named Quarry Mesh,it is mostly used as screen in mining,coal factory,construction and other industries.
3.Supply form: in rolls and panels.1mX15m,1.5mX15m,2.0mX20m.etc.
4.Usage:
Used for screen in mine,coal factory,industry,architecture,filter a sand grain,filter the liquid and air,also can be used in the security in machiney fittings.
High Quality Manganese Vibrating Screen Crimp Wire Mesh Mine Vibrating Sieving Sand 0

In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented
to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions
of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above
or below the aperture size.
There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including
capacity requirements. We adopt high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest
conditions.

MATERIALS & PARAMETERS
Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below.
Technical Parameters of Carbon Steel Wire
Grade Chemical Composition(%)
C Si Mn
45 0.42-0.50


0.52-0.60

0.50-0.80
50 0.47-0.55
55 0.52-0.60
60 0.57-0.65
65 0.62-0.70
70 0.67-0.75
65Mn 0.62-0.70 0.90-1.20
72A 0.15-0.75 0.15-0.75 0.30-0.60

Technical Parameters of Stainless Steel Wire
Grade Chemical Composition(%)
C Si Mn Cr
304 ≤0.08 8.0-10.5 ≤2.0 18.0-20.0
321 ≤0.08 9.0-12.0 ≤2.0 17.0-19.0
316 ≤0.08 10.0-14.0 ≤2.0 16.0-18.0
2205 ≤0.03 4.5-6.5 ≤2.0 21.0-23.0
2207 ≤0.03 6-8 ≤1.2 24.0-26.0



High Quality Manganese Vibrating Screen Crimp Wire Mesh Mine Vibrating Sieving Sand 1

According to the different shapes we offer, our self-cleaning screen can be divided into three categories as shown below.High Quality Manganese Vibrating Screen Crimp Wire Mesh Mine Vibrating Sieving Sand 2













ADVANTAGE OF MINING SCREEN

High mechanical strength, large carrying capability
High abrasion and chemical corrosion resistance
Excellent vibration and impact resistance
Large screening area
A long service life



High Quality Manganese Vibrating Screen Crimp Wire Mesh Mine Vibrating Sieving Sand 3

High Quality Manganese Vibrating Screen Crimp Wire Mesh Mine Vibrating Sieving Sand 4
