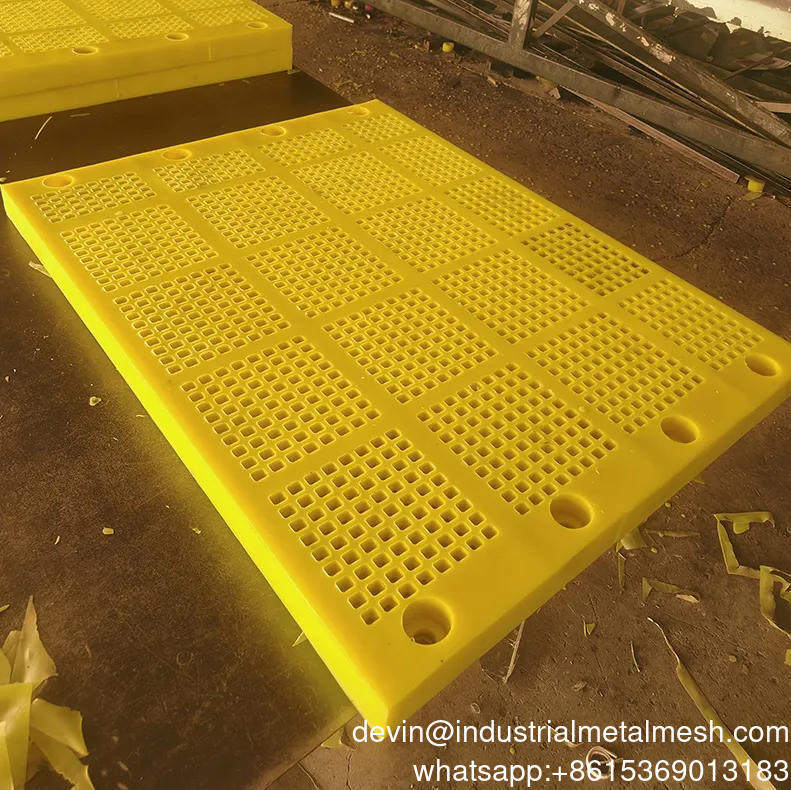

Customized Polyurethane Mining Coal Dewatering Screen Mesh

Large Image : Customized Polyurethane Mining Coal Dewatering Screen Mesh

Product Details:

Place of Origin:	China
Brand Name:	qijie
Certification:	polyurethane screen mesh
Model Number:	polyurethane screen mesh

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	wood case
Delivery Time:	15-18days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	100pcs

Contact Now

Detailed Product Description

Features:	Even Mesh, Strong Structure	Hole Size:	2.5mm - 130mm
Application:	Mining, Quarrying, Mineral Processing	Surfacetreatment:	Galvanized, Painted, Or Coated
Technic:	Woven Mesh	Free Sample:	Yes
Hook:	Hook With Steel Sheet	Install:	Hooked
Elastic Resilience:	34 Percent	Specification:	1.5M2.0M ； 2M3M ； 3M*2.5M
Surface Treatment:	Galvanized Or Painted.	Installationmethod:	Bolted Or Hooked Onto Screen Frames
Hole Shape:	Rectangle	Surface:	Natural Powder Coating
Productname:	Mining Screen Mesh
Highlight:	customized polyurethane mining screen mesh , coal dewatering screen mesh , mining screen mesh with warranty

Customized Polyurethane Mining Coal Dewatering Screen Mesh

Description:

Polyurethane vibrating screen is made of polyurethane materials. It mainly used for miningmineral processing, grading, dehydration and other screening machines replace metal sieve (mesh) of a new product. Mainly used in coal, iron ore, copper, gold and other ores grading, screening, dewatering and other places. It can separate and screen almost all of materials from coarse stones to fine materials and ideal for both dry and wet materials.

Tensioned polyurethane screen mesh (metallic hooks)

Tensioned polyurethane screen mesh (metallic hooks) is a kind that widely used at present. External force from two side hooks was attached to the beam to form a better elastic screen surface. It has a special designed fastening hooks which can clamp screens into the separator. with the lightweight it is easy to install in screening situations where material specifications are frequently changed.

Tensioned polyurethane screen is ideal for all screening applications where screening efficiency and noise reduction is crucial.

Specification of Polyurethane Screen
Product Name	Material	Thickness	Hole size
Steel Core Polyurethane Screen	steel wire inside and polyurethane outside	2.5-5mm	2-25mm
Tensioned Polyurethane Screen	polyurethane and steel frame	25-60mm	5-50mm
Modular Polyurethane Screen Mesh	polyurethane and embedded steel frame	30-60mm	2.5-130mm
Polyurethane Dewatering Screen	steel frame and polyurethane surface	30, 45, 50mm	0.1-2.5mm(W), 4-16mm(L)

Material	Polyurethane elastomer with steel wire reinforcement
Aperture Range	0.1-170mm (customizable)
Max. Operating Temperature	-40°C to +80°C
Vibration Resistance	Up to 50G acceleration
Certifications	ISO-compliant, RoHS, and REACH standards

Key Features & Benefits

√ Unmatched Durability & Load Capacity

Steel-Reinforced Structure: Integrated steel wire skeleton and high-grade PU elastomers ensure high tensile strength and resistance to deformation, supporting heavy loads and harsh operating conditions.

Extended Service Life: Lasts 8-10x longer than metal screens and 3x longer than stainless steel alternatives, reducing replacement frequency and downtime.

√ Anti-Clogging & Self-Cleaning Design

140° Tapered Apertures: Unique hole geometry prevents material buildup, ideal for sticky or damp substances like coal, wet ores, and sludge.

Dynamic Self-Cleaning: Secondary harmonic vibrations during operation dislodge trapped particles, maintaining 95%+ screening efficiency.

√ Noise Reduction & Safety Compliance

Reduces operational noise by 5-20 dB compared to metal screens, ensuring compliance with workplace safety regulations.

Flame-retardant, non-toxic, and resistant to oils, chemicals, and extreme temperatures (-40°C to +80°C).

√ Easy Installation & Low Maintenance

Embedded Bolt-Free Design: Utilizes hook-type or tension-clamped mounting systems (e.g., 90° side clamps) for quick installation and minimal maintenance effort.

Lightweight (density: 1.32 kg/m³) reduces strain on vibrating equipment, lowering energy consumption by up to 30%.

√ Customizable Solutions

Aperture Sizes: Ranging from 0.1mm to 170mm, with options for square, round, or rectangular holes.

Compatible with all vibrating screen models, including flip-flow and linear motion systems.

Applications:

Mining & Mineral Processing – Screening, grading, and dewatering of ores, coal, sand, and aggregates.
Quarry & Construction – Crushed stone sorting, sand washing, and gravel classification.
Industrial Filtration – Chemical, fertilizer, and pharmaceutical powder separation.
Environmental Projects – Tailings dry discharge, sludge dewatering, and recycling operations.
Infrastructure & Landscaping – Synthetic turf for construction fencing, erosion control, and decorative use.

Customization Service:

We support full customization based on your specific requirements, including:

Aperture size, shape, and layout
Material type and thickness
Dimensions and mounting design
Special patterns (e.g., stepped, ribbed, perforated)
Custom orders can be produced according to provided drawings or samples, ensuring perfect fit and performance for your equipment.

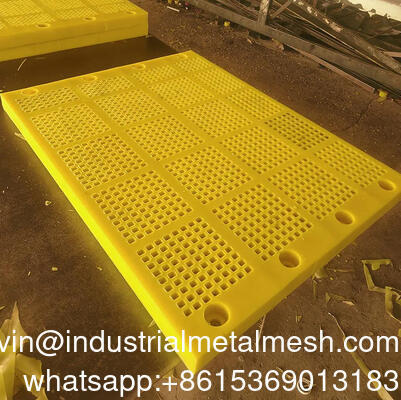

Customized Polyurethane Mining Coal Dewatering Screen Mesh 1

Customized Polyurethane Mining Coal Dewatering Screen Mesh 2

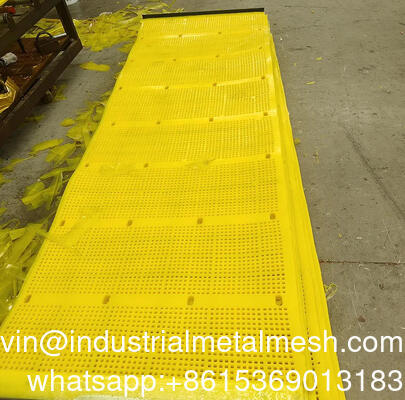

Customized Polyurethane Mining Coal Dewatering Screen Mesh 3
