Micron 304 316L Stainless Steel Wire Mesh Screen Filter Mesh

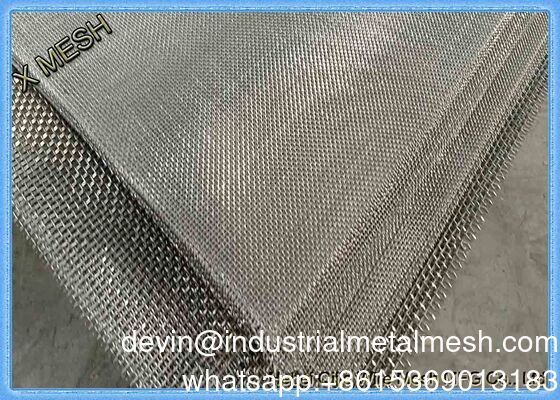

Large Image : Micron 304 316L Stainless Steel Wire Mesh Screen Filter Mesh

Product Details:

Place of Origin:	China
Brand Name:	QIJIE
Certification:	ISO9001
Model Number:	QJ-004

Payment & Shipping Terms:

Minimum Order Quantity:	50 rolls
Price:	discuss
Packaging Details:	as requirement
Delivery Time:	15 - 20 days
Payment Terms:	TT/LC
Supply Ability:	1000 rolls per week

Contact Now

Detailed Product Description

Technique:	Woven	Material:	Stainless Steel Wire,316,304
Weave Style:	Plain/Twill Weave	Product Name:	Square 4X4 Woven Flour 100 Micron Stainless Steel Wire Mesh
Wire Diameter:	Requirement	Width:	Usually 1M
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	304 stainless steel wire mesh filter , 316L stainless steel screen mesh , stainless steel woven filter screen

Micron 304 316L Stainless Steel Wire Mesh Screen Filter Mesh

We manufactures custom high-performance filters and filtration products for all industries such as filter wire mesh, wire cloth filters, and material-specific filters like stainless steel mesh filters. Using our high-quality wire cloth, welded wire mesh, annealed and diffusion bonded wire mesh; we offer stamping, fabricating and finishing services to manufacture production-ready filters for your applications.

Specifications of plain weave stainless steel wire mesh:

Materials: stainless steel 302, 304, 304L, 310, 316, 316L, 321, 410, 410L, super duplex stainless steel, duplex stainless steel or customized.
Mesh patterns: square, rectangle.
Surface treatment: pickling and passivation, polishing.
Packing:
- Rolls wrapped with craft paper and then put into carton or on pallet;
- Sheets in wooden boxes or on pallets.

Plain weave and twill weave stainless steel wire mesh reference specification:

Specification list of Woven Wire Cloth
Meshes Per Linear Inch	Diameter of Wire		Width of Opening		Open Area, %
Meshes Per Linear Inch	Inches	mm	Inches	mm	Open Area, %
10 x 10	0.047	1.2	0.053	1.34	28.1
10 x 10	0.035	0.9	0.065	1.65	42.3
10 x 10	0.032	0.8	0.068	1.27	46.2
10 x 10	0.025	0.63	0.075	1.90	56.3
12 x 12	0.041	1.0	0.042	1.06	25.4
12 x 12	0.035	0.9	0.048	1.22	33.2
12 x 12	0.032	0.8	0.051	1.29	37.5
12 x 12	0.028	0.7	0.055	1.39	43.6
12 x 12	0.023	0.58	0.060	1.52	51.8
14 x 14	0.032	0.8	0.039	1.52	29.8
14 x 14	0.025	0.63	0.046	0.99	41.5
14 x 14	0.023	0.58	0.048	1.22	45.2
14 x 14	0.020	0.5	0.051	1.30	51.0
16 x 16	0.028	0.7	0.035	0.89	30.5
16 x 16	0.023	0.58	0.040	1.01	39.9
16 x 16	0.018	0.45	0.045	1.14	50.7
18 x 18	0.020	0.5	0.036	0.91	41.1
18 x 18	0.018	0.45	0.038	0.96	48.3
20 x 20	0.023	0.58	0.027	0.68	29.2
20 x 20	0.020	0.5	0.030	0.76	36.0
20 x 20	0.018	0.45	0.032	0.81	41.0
20 x 20	0.016	0.40	0.034	0.86	46.2
24 x 24	0.014	0.35	0.028	0.71	44.2
28 x 28	0.010	0.25	0.026	0.66	51.8
30 x 30	0.013	0.33	0.020	0.50	37.1
30 x 30	0.012	0.30	0.021	0.53	40.8
35 x 35	0.012	0.30	0.017'	0.43	33.8
35 x 35	0.010	0.25	0.019	0.48	42.4
40 x 40	0.014	0.35	0.011	0.28	19.3
40 x 40	0.012	0.30	0.013	0.33	27.4
40 x 40	0.010	0.25	0.015	0.38	36.0
40 x 40	0.0095	0.24	0.016	0.40	38.4
50 x 50	0.009	0.23	0.011	0.28	30.3
60 x 60	0.0075	0.19	0.009	0.22	30.5
70 x 70	0.0065	0.17	0.008	0.20	29.8
80 x 80	0.0070	0.18	0.006	0.15	19.4
80 x 80	0.0055	0.14	0.007	0.17	31.4
90 x 90	0.0055	0.14	0.006	0.15	25.4
100 x 100	0.0045	0.11	0.006	0.15	30.3
120 x 120	0.0040	0.10	0.0043	0.11	26.6
120 x 120	0.0037	0.09	0.005	0.12	30.7
150 x 150	0.0026	0.066	0.0041	0.10	37.4
165 x 165	0.0019	0.048	0.0041	0.10	44.0
180 x 180	0.0023	0.058	0.0032	0.08	33.5
180 x 180	0.0020	0.050	0.0035	0.09	41.1
200 x 200	0.0020	0.050	0.003	0.076	36.0
200 x 200	0.0016	0.040	0.0035	0.089	46.0
220 x 220	0.0019	0.048	0.0026	0.066	33.0
230 x 230	0.0014	0.035	0.0028	0.071	46.0
250 x 250	0.0016	0.040	0.0024	0.061	36.0
270 x 270	0.0014	0.040	0.0022	0.055	38.0
300 x 300	0.0012	0.030	0.0021	0.053	40.1
325 x 325	0.0014	0.040	0.0017	0.043	30.0
325 x 325	0.0011	0.028	0.0020	0.050	42.0
400 x 400	0.0010	0.025	0.0015	0.038	36.0
500 x 500	0.0010	0.025	0.0011	0.028	25.0
635 x 635	0.0009	0.022	0.0006	0.015	14.5

Duth weaving stainless steel wire mesh reference specification:

mesh	wire dia (MM)	Material (AISI)
12 X 64	0.58/0.40	304 316
24 X 110	0.36/0.25	30.316
14 X88	0.50/0.33	30.316
30 X150	0.18/0.14	30.316
40 X200	0.14/0.11	30.316
50 X250	0.10/0.071	30.316
80 X700	0.06/0.05	30.316
165 X800	0.071/0.040	30.316
165 X1400	0.05/0.032	30.316
200 X1800	0.05/0.03	30.316
325 X2300	0.030/0.025	316L
400 X2800	0.030/0.02	316L

Micron 304 316L Stainless Steel Wire Mesh Screen Filter Mesh 1

Micron 304 316L Stainless Steel Wire Mesh Screen Filter Mesh 2

Applications:

Used for filter or sieve in mining, chemical fiber, pharmaceutical industries, such as mud mesh, pickling mesh;
Made into window screen, fruit basket, infill panel, etc

Stainless Steel Dutch Wire Mesh Used in Fuel Filter, Aerospace, Rubber Industry

Micron 304 316L Stainless Steel Wire Mesh Screen Filter Mesh 4

Specifications of Stainless Steel Plain Dutch Wire Mesh						Specifications of Stainless Steel Twill Dutch Wire Mesh
Mesh/Inch (warp×weft)	Wire Dia. warp×weft(mm)	Normal size (μm)	Effective area%	Weight kg/sq.m	Thickness (mm)	Weft × Warp (inch)	Aperture Size (μm)	Available Area (%)	Thickness (mm)
7×44	0.71×0.63	319	14.2	5.55	1.97	20 × 270	119	17.6	0.65
8×45	0.8×0.6	310	15.5	5.7	2	20 × 200	118	12.1	0.915
8×60	0.63×0.45	296	20.3	4.16	1.53	24 × 300	110	19.6	0.64
8×85	0.45×0.315	275	27.3	2.73	1.08	20 × 150	101	7.5	1.16
10×90	0.45×0.28	249	29.2	2.57	1.01	30 × 340	89	17.9	0.6
10×76	0.5×0.355	248	21.8	3.24	1.21	30 × 270	77	11.2	0.68
12×86	0.45×0.315	211	20.9	2.93	1.08	40 × 540	70	23.5	0.38
12×64	0.56×0.40	211	16	3.89	1.36	40 × 430	63	15.4	0.43
12×76	0.45×0.355	192	15.9	3.26	1.16	50 × 600	51	17.2	0.305
14×100	0.40×0.28	182	20.3	2.62	0.96	50 × 500	47	12	0.364
14×110	0.4×0.25	177	22.2	2.28	0.855	65 × 600	36	12	0.32
14×76	0.45×0.355	173	14.3	3.33	1.16	70 × 600	31	10.1	0.32
16×100	0.40×0.28	160	17.7	2.7	0.96	78 × 760	31	13.5	0.254
17×120	0.355×0.224	155	22.4	2.19	0.803	78 × 680	29	10.3	0.272
16×120	0.28×0.224	145	19.2	1.97	0.728	80 × 680	28	9.8	0.272
20×140	0.315×0.20	133	21.5	1.97	0.715	90 × 850	26	12.7	0.226
20×170	0.25×0.16	130	28.9	1.56	0.57	90 × 760	24	9.6	0.242
20×110	0.355×0.25	126	15.3	2.47	0.855	100 × 850	22	10	0.226
22×120	0.315×0.224	115	15.5	2.2	0.763	130 × 1500	21	18.6	0.135
25×140	0.28×0.20	100	15.2	1.96	0.68	100 × 760	20	7.4	0.242
24×110	0.355×0.25	97	11.3	2.6	0.855	130 × 1200	18	12	0.161
28×150	0.28×0.18	92	15.9	1.87	0.64	130 × 1100	17	9.4	0.171
30×150	0.25×0.18	82	13.5	1.79	0.61	150 × 1400	15	11.4	0.143
30×140	0.315×0.20	77	11.4	2.21	0.715	160 × 1500	15	12.4	0.135
35×190	0.224×0.14	74	16.8	1.47	0.504	165 × 1500	14	11.4	0.135
35×170	0.224×0.16	69	12.8	1.62	0.544	174 × 1700	13	12.9	0.127
40×200	0.18×0.135	63	15.4	1.24	0.43	165 × 1400	13	8.8	0.143
50×250	0.14×0.11	50	15.2	1	0.36	174 × 1400	11	7.4	0.143
60×500	0.14×0.055	51	34.1	0.7	0.252	203 × 1600	10	9.3	0.114
50×270	0.14×0.10	50	15.2	0.98	0.34
65×390	0.125×0.071	42	19.1	0.78	0.267
60×300	0.14×0.09	41	14.1	0.96	0.32
80×700	0.125×0.04	40	38.1	0.6	0.205
60×270	0.14×0.10	39	11.2	1.03	0.34
77×560	0.14×0.05	38	27.5	0.74	0.24
70×390	0.112×0.071	37	16.3	0.74	0.254
65×750	0.10×0.036	36	37.1	0.43	0.172
70×340	0.125×0.08	35	13.2	0.86	0.285
80×430	0.125×0.063	32	16.6	0.77	0.251
118×750	0.063×0.036	23	21.5	0.38	0.135
