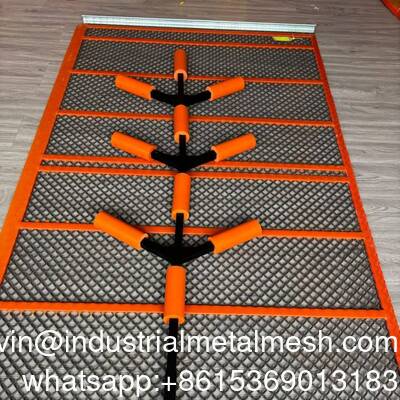

Declogging Rod Vibrates to Clear Mesh, Boosting Efficiency

Large Image : Declogging Rod Vibrates to Clear Mesh, Boosting Efficiency

Product Details:

Place of Origin:	China
Brand Name:	qijie
Model Number:	declogging rod

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Packaging Details:	wood case
Delivery Time:	15-18days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Material:

Polyurethane

Anti-clogging

Brand:

Qijie

Modle:

Declogging Rod

Highlight:

vibrating declogging rod for mining mesh

mesh screen declogging rod

efficient mining mesh vibrator

Declogging Rod Vibrates to Clear Mesh, Boosting Efficiency

Anti-Blinding Rods are elastic polyurethane rods that are fixed to the screen and have been developed to further improve the self-cleaning properties of anti-clogging screens. Anti-Blinding Rods use the machine’s vibration to move and bounce on the surface of the mesh that helps to shake off stubborn sticky material from blinding and pegging the screens. Anti-Blinding rods can be installed on any screen fixed or mobile.

BENEFITS:

Self-cleaning properties
Larger screening area
Longer service life
Easy to install
High efficiency
Highly resistant to abrasion, wear, and tear
Resistant to corrosion
Shorter cleaning down-times
Wide range of applications
Various customized size options

Declogging Rod Vibrates to Clear Mesh, Boosting Efficiency 0

These components fix together with pins and configured to cover part or all of your screenbox. They sit atop individual screens, or alternatively cover the entire area. In addition, different separators widths are available, fixing places vary, as a result this product highly customisable. The table below is designed as a guide only, contact us for more information, our sales staff will be happy to advise you further.

Screen length	Components
Up to 1500	1 fixed rod and 2 mobile rods
Up to 2000	1 fixed rod and 3 mobile rods
Up to 2500	1 fixed rod and 4 mobile rods
Up to 3000	1 fixed rod and 5 mobile rods
Up to 3500	1 fixed rod and 6 mobile rods
Up to 4000	1 fixed rod and 7 mobile rods
Up to 4500	1 fixed rod and 8 mobile rods

Screen width	Components
Up to 1000	1 declogging rod
1000 ÷ 1500	2 declogging rod
1500 ÷ 2000	3 declogging rod

NOTE – To avoid tangling of separate declogging rods, they are joined using separators according to the number of mobile rods. In addition, we don’t recommend use when screening with metallic meshes with wire diameters smaller than 2.5mm.

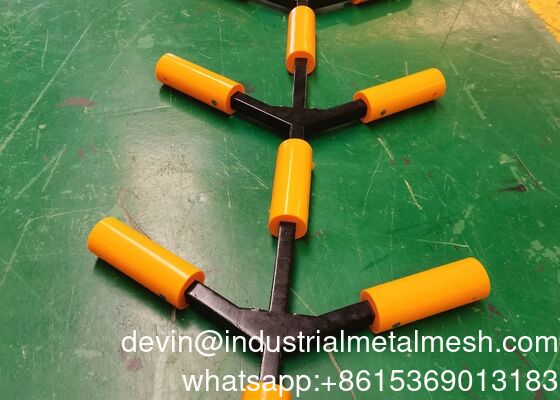

Declogging Rod Vibrates to Clear Mesh, Boosting Efficiency 1

polyurethane declogging rods
