Ss 304 316 316L 321 Crimped Mesh for Coal Mine Vibrating Screen Crimped Wire Mesh

Large Image : Ss 304 316 316L 321 Crimped Mesh for Coal Mine Vibrating Screen Crimped Wire Mesh

Product Details:

Place of Origin:	Hebei ,China
Brand Name:	Xmesh
Certification:	SGS
Model Number:	MVSM

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Packaging Details:	Pallets
Delivery Time:	15-25days
Payment Terms:	TT/LC
Supply Ability:	1000 pcs per month

Contact Now

Detailed Product Description

Material:	STAINLESS STEEL WIRE	Type:	Crimped Wire Mesh
Application:	Woven Wire Mesh	Weave Style:	Plain Weave
Technique:	Woven	Model Number:	Vibrating Screen Mesh
Processing Service:	Bending, Welding, Decoiling, Cutting, Punching	Delivery Time:	31-45 Days
Surface Treatment:	Galvanized Or Painted.	Mesh Size:	1mm - 100mm.
Hole Type:	Square, Rectangular And Long Slot.	Opening Size:	2.0 - 80.0 Mm
Wire Diameter:	0.8 - 8 Mm	Width:	1.2m
Length:	30m	Hook:	Hook With Steel Sheet
Hook Degree:	60degree	Weaving Type:	Double Crimp
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	SS 304 crimped wire mesh , 316L vibrating screen mesh , coal mine crimped mesh

Ss 304 316 316L 321 Crimped Mesh for Coal Mine Vibrating Screen Crimped Wire Mesh

Product Description

Crimped Wire Mesh

Architectural Flat Wire Mesh Crimped Woven Wire Mesh Brass Bronze Stainless Steel Woven Metal Decorative Mesh
Crimped Wire Mesh 4 6 8 10 12 15 Mesh Ss 304 316 316L Stainless Steel Crimped Wire Mesh
304 316 316L 321 Stainless Steel Crimped Wire Mesh for Coal Mine Screen
Small Aperture Steel Wire Rope Mesh Hexagon Hole Hot-dip Galvanized Fence Protective Net Model 003 Crimped Technique
304 304L 316 316L Double Crimped Stainless Steel Wire Mesh 3 Mesh for Metal Building Materials for Machine Use

High Manganese Steel Mine Sieving Sand Vibrating Screen Crimp Wire Mesh With Hook
High Manganese Steel Crimped Wire Mesh Crusher Screen Mesh Vibrating Sieve Shaker Sieve
High Tensile Strength 65 Mn Crimped Vibrating Screen Mesh for Mine

Crimped Wire Mesh Vibrating Screen Stainless Steel 304 310S Quarry Mesh for Mineral
High Quality Square Aperture Electro Galvanized Crimped Wire Mesh for Vibrating and Filtration
Stainless Steel Architectural Mining Screen Mesh Woven Wire Locked Crimped Mesh

1.Material:
1) Stainless steel wire(201,202,302,304,304L,310,316,316L)
2) High carbon steel wire,low carbon steel,medium carbon steel,Mn steel wire.
3) Galvanized iron wire,galvanized steel wire,non-ferrous metal wire. Other materials are available on request.
2.Application:
Crimped wire mesh is used as fence or filters in a lot of industries;Heavy Duty Crimped wire mesh are also named Quarry Mesh,it is mostly used as screen in mining,coal factory,construction and other industries.
3.Supply form: in rolls and panels.1mX15m,1.5mX15m,2.0mX20m.etc.
4.Usage:
Used for screen in mine,coal factory,industry,architecture,filter a sand grain,filter the liquid and air,also can be used in the security in machiney fittings.

Technical Specifications

(Custom configurations available upon request.)

Product Type	Key Features	Primary Applications
358 Security Mesh	9.5mmx3.15mm aperture pattern, anti-climb design	Prisons,facilities, high-security zones
358 Anti-Scale Mesh	Reinforced 6mm thick wires, tamper-resistant connections	Airport perimeters, critical infrastructure
Workshop Partition Panels	Modular design, easy installation, transparent or solid options	Factory floors, warehouse divisions, equipment zones
Elevator Protection Doors	Interlocking mechanism, safety sensors, reinforced frames	Construction sites, industrial elevator shafts
Anti-Glare Highway Barriers	Wave-shaped design, 85% visibility maintenance, UV resistant	Expressways, viaducts, traffic separation areas
Airport Perimeter Fencing	358 mesh standard, 3.0m height, anti-dig base design	Airfield boundaries, restricted access areas
Prison Security Fencing	76.2mmx12.7mm mesh, 6mm diameter wires, anti-climb topping	Correctional facilities, detention centers

In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented
to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions
of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above
or below the aperture size.
There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including
capacity requirements. We adopt high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest
conditions.

MATERIALS & PARAMETERS

Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below.
Technical Parameters of Carbon Steel Wire

Grade	Chemical Composition(%)
Grade	C	Si	Mn
45	0.42-0.50	0.52-0.60	0.50-0.80
50	0.47-0.55
55	0.52-0.60
60	0.57-0.65
65	0.62-0.70
70	0.67-0.75
65Mn	0.62-0.70		0.90-1.20
72A	0.15-0.75	0.15-0.75	0.30-0.60

Technical Parameters of Stainless Steel Wire

Grade	Chemical Composition(%)
Grade	C	Si	Mn	Cr
304	≤0.08	8.0-10.5	≤2.0	18.0-20.0
321	≤0.08	9.0-12.0	≤2.0	17.0-19.0
316	≤0.08	10.0-14.0	≤2.0	16.0-18.0
2205	≤0.03	4.5-6.5	≤2.0	21.0-23.0
2207	≤0.03	6-8	≤1.2	24.0-26.0

Aperture Square Weave	Light duty Wire Dia kg/m²OA%			Medium Wire Dia kg/m OA%			Heavy Duty Wire Dia kg/m²OA%
2.00							1.37	7.1	35
3.15				2.00	9.9	37	2.50	14.1	31
4.0	2.00	8.50	44	2.50	12.2	38	3.05	16.8	32
5.0	2.00	7.80	51	2.50	16.6	44	3.05	14.7	38
5.6	2.50	9.80	48	3.05	13.7	41	4.00	21.2	34
6.35	2.50	8.89	51	3.05	12.6	46	4.00	19.6	38
6.8	2.50	9.00	51	3.05	10.0	44	4.00	19.7	37
7.1	2.50	8.80	55	3.05	11.9	48	4.00	18.3	41
8	2.50	10.80	54	4.00	16.9	44	5.00	24.4	38
9	3.05	9.80	55	4.00	15.6	48	5.00	22.7	44
10	3.05	9.10	58	4.00	14.5	51	5.00	21.2	44
11.2	3.05	10.40	54	5.00	19.6	48	5.60	28.6	44
12.5	4.00	12.30	57	5.00	18.1	51	5.60	20.0	47
14	4.00	16.70	54	5.00	20.0	51	6.80	24.6	48
16	5.00	15.10	58	5.60	19.5	56	6.80	22.6	51
18	5.00	14.50	58	6.80	20.7	55	7.10	25.0	51
20	5.60	14.00	61	6.80	19.2	58	7.10	24.0	54
22	5.60	17.60	61	7.10	21.5	57	8.00	26.7	54
25	6.80	16.10	64	7.10	20..1	60	8.00	24.6	57
28	7.00	14.70	63	8.00	19.0	61	9.00	27.8	57
32	8.00	20.60	64	9.00	26.0	60	10.00	30.4	58
38	8.00	18.70	67	9.00	28.1	64	10.00	27.9	61
40	9.00	21.00	67	10.00	25.4	64	11.20	31.1	61
45	9.00	19.50	69	10.00	23.4	67	11.20	28.4	64
50	10.00	23.20	69	11.20	26.0	67	12.50	31.8	64
56	10.00	19.20	72	11.20	28.7	69	12.50	29.0	67
63	10.00	17.40	75	11.20	24.5	72	12.50	25.1	70
76.2	10.00	14.80	78	11.20	16.0	75	12.50	20.0	73
80	10.00	16.00	79	11.20	17.5	72	12.50	21.5	75
90	10.00	14.00	81	11.20	15.7	79	12.70	19.4	77
100	10.00	10.00	82	11.20	14.3	81	12.70	17.6	79

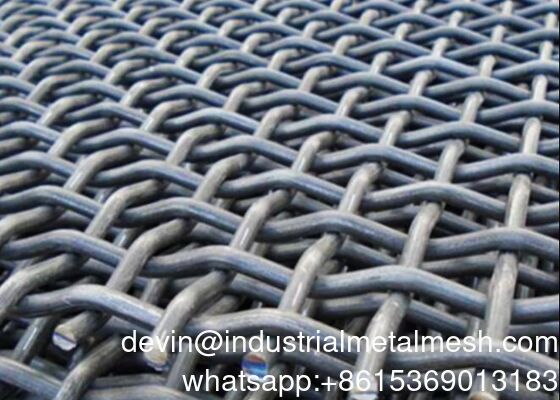

Ss 304 316 316L 321 Crimped Mesh for Coal Mine Vibrating Screen Crimped Wire Mesh 1

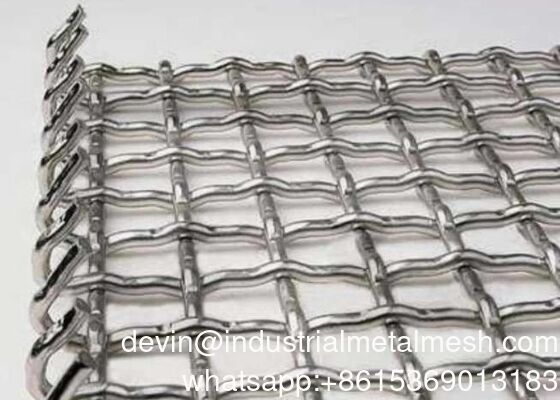

According to the different shapes we offer, our self-cleaning screen can be divided into three categories as shown below. Ss 304 316 316L 321 Crimped Mesh for Coal Mine Vibrating Screen Crimped Wire Mesh 2

ADVANTAGE OF MINING SCREEN

High mechanical strength, large carrying capability
High abrasion and chemical corrosion resistance
Excellent vibration and impact resistance
Large screening area
A long service life

Ss 304 316 316L 321 Crimped Mesh for Coal Mine Vibrating Screen Crimped Wire Mesh 3
