Painted Welded Steel Grating with Serrated Surface

Large Image : Painted Welded Steel Grating with Serrated Surface

Product Details:

Place of Origin:	China
Brand Name:	Dimpled Hole Metal Sheets
Model Number:	Dimpled Hole Metal Sheets

Payment & Shipping Terms:

Minimum Order Quantity:	10pieces
Packaging Details:	pallets
Delivery Time:	15-18days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	1000pieces

Contact Now

Detailed Product Description

Chemical Composition:	Fe, C, Si, Mn, S, P	Alloy Or Not:	Non-Alloy
Project Solution Capability:	Graphic Design, 3D Model Design, Total Solution For Projects	Application:	Villa
Surface Treatment:	Hot-DIP Galvanizing, Painting Or Untreated	Grate Length:	1000mm
Grate Width:	800mm	Bearing Bar Width X Thickness:	25x3mm
Bearing Bar Shape:	Plain, Serrated I Bar Type Style Steel Grating	Cross Bar Shape:	Round,twisted,bar Shape
Mesh Size:	30x100mm	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	painted welded steel grating , serrated steel grating , galvanized steel grating with warranty

Painted Welded Steel Grating with Serrated Surface

Grating, also called steel grating or steel bar grating, refers to the steel bar grating made of mild carbon steel through surface treatment.

Mild carbon steel provides an economical, high strength for uses in most industrial and commercial applications.

Steel grating is available in various material, such as stainless steel, aluminum, and galvanized steel.

Specifications of steel gratings
Bearing bar	20x5,25x3,25x4, 25x5,30x3,30x4,30x5,32x3,32x5,40x5,50...75x8mm, etc.
Bearing bar depth	25,30,30.16,32.5,34.3,40,50,60,62,65mm, etc.
Cross bar	5x5, 6x6,8x8mm (twisted bar or round bar)
Cross bar spacing	40, 50,60,65,76,100,101.6,120,130mm or as customers' requirement.
Flat bar type	Plain, Serrated (tooth-like), l bar (l section)
Surface treatment	Untreated
	Hot dip galvanized
	Cold dip galvanized
	PVC coated
	Powder coated
Note: 1.Special sizes avaliable at request. 2.Packing:in plastic in rolls. Custom packing available at request.

metal walking grates introduction-- galvanized road drainage grates

Bearing bar type	Flat bar	I bar	Serrated bar
Cross bar type	Twisted bar	Round bar	flat bar
Production process	welded	Pressure locked
Surface treatment	Self-colour	Galvanized	painted

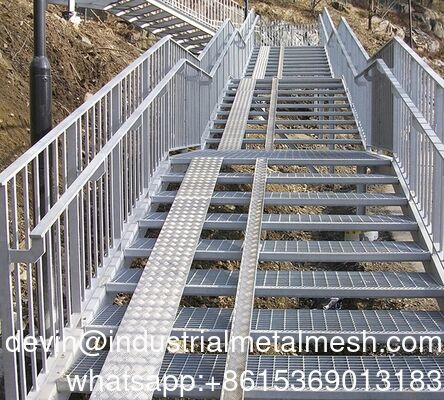

application	Platform	walkway&floor	Trench cover	Steel stair treads
	Suspended ceiling	Barrier fence

bearing bar types:

surface treatment: mill finish,hot dip galvanized,painted

steel grating standard-- galvanized road drainage grates

Steel Grating Standard
	Steel Grating Standard	Steel Standard	Galvanizing Standard
China Standard	YB/T 4001.1-2007	GB700-88	GB/T13912-2002
USA Standard	ANSI/NAAMM (MBG531)	ASTM (A36)	ASTM (A123)
U.K. Standard	BS4592	BS4360 (43A)	BS729
Australia Standard	AS1657	AS3679	AS1650
Deutsche Standard	DIN24537	DIN17100-80	DIN50976

Painted Welded Steel Grating with Serrated Surface 0
