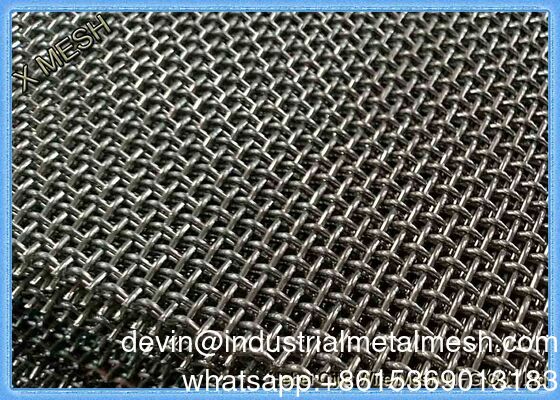

Ultra Fine Plain Heat-Resisting Woven Screen Wire Mesh Filter 304 316 Stainless Steel Filter Wire Mesh

Large Image : Ultra Fine Plain Heat-Resisting Woven Screen Wire Mesh Filter 304 316 Stainless Steel Filter Wire Mesh

Product Details:

Place of Origin:	China
Brand Name:	QIJIE
Certification:	ISO9001
Model Number:	QJ-004

Payment & Shipping Terms:

Minimum Order Quantity:	50 rolls
Price:	discuss
Packaging Details:	as requirement
Delivery Time:	15 - 20 days
Payment Terms:	TT/LC
Supply Ability:	1000 rolls per week

Contact Now

Detailed Product Description

Technique:	Woven	Material:	Stainless Steel Wire,316,304
Weave Style:	Plain/Twill Weave	Product Name:	Square 4X4 Woven Flour 100 Micron Stainless Steel Wire Mesh
Wire Diameter:	Requirement	Width:	Usually 1M
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	heat-resistant stainless steel wire mesh , 304 316 stainless steel filter mesh , woven wire mesh screen filter

Ultra Fine Plain Heat-Resisting Woven Screen Wire Mesh Filter 304 316 Stainless Steel Filter Wire Mesh

Woven Screen Wire Mesh Filter 304 316 Stainless Steel Filter Wire Mesh

Stainless steel wire mesh is made of stainless steel wire and then woven together to form a square opening or oblong opening. It is made of 304, 304L, 316, 316L, 310, 310s and other metal wire processing. In recent years, stainless steel nets have been widely used in many different fields.

1. Most of our products are customized products, please contact us for the latest factory quotation.

2. Materials, specifications, packaging, pictures, and logos can be customized.

3. Freight charges need to be calculated in detail according to your country and region, the quantity/volume of the goods, and the mode of transportation. Please contact us for more details.

Specification

Plain Weave Stainless Steel Woven Wire Mesh

Normal Specification Maishi Plain Weave Stainless Steel Woven Wire Mesh
Mesh/inch	Wire diameter (mm)	Aperture (mm)	--	Mesh/inch	Wire diameter (mm)	Aperture (mm)
2mesh	1.80	10.90		60mesh	0.15	0.273
3mesh	1.60	6.866		70mesh	0.14	0.223
4mesh	1.20	5.15		80mesh	0.12	0.198
5mesh	0.91	4.17		90mesh	0.11	0.172
6mesh	0.80	3.433		100mesh	0.10	0.154
8mesh	0.60	2.575		120mesh	0.08	0.132
10mesh	0.55	1.990		140mesh	0.07	0.111
12mesh	0.50	1.616		150mesh	0.065	0.104
14mesh	0.45	1.362		160mesh	0.065	0.094
16mesh	0.40	1.188		180mesh	0.053	0.088
18mesh	0.35	1.060		200mesh	0.053	0.074
20mesh	0.30	0.970		250mesh	0.04	0.061
26mesh	0.28	0.696		300mesh	0.035	0.049
30mesh	0.25	0.596		325mesh	0.03	0.048
40mesh	0.21	0.425		350mesh	0.03	0.042
50mesh	0.19	0.318		500mesh	0.025	0.0385
Technical Note: 1. Standard roll length: 15.24m, 30m, 30.5m, 61m 2. Standard roll width: 0.61m(2'), 0.9144m(3'), 1.22m(4'), 1.30m(4.265'), 1.524m(5), 1.60m(5.25') 3. Special sizes available at request 4. Packing: In waterproof paper, PVC bag, wooden case. Custom packing available at request.

1. Used for screening and filtration under acid and alkali environmental conditions. In the petroleum industry, it is used as a mud net, in the chemical and chemical fiber industry, as a screen filter, and in electroplating...
2 Used in mining, petroleum, chemical industry, food, medicine, machinery manufacturing, and other industries...

Features:
1. Uniform mesh, good production reproducibility;
2. Good resistance to acid, alkali, and corrosion;
3. High strength, tensile strength, toughness and wear resistance, long service life;
4. Uniform structure, non-crimp, easy to use, uniform thickness, antistatic;
5. High-temperature oxidation resistance, 304 stainless steel screen nominal tolerance temperature of 800 degrees Celsius, 310S stainless steel screen name it can withstand temperatures up to 1150 degrees Celsius

Product Name	Stainless Steel Weave Wire Mesh
Weaving Process	Plain weave; Twill weave; Five-heddle weave;Plain dutch weave;Twill dutch weave;Reverse Twill dutch weave
Wire diameter	Common:0.13mm
Mesh Count	Common:80
Width	1m,1.2m,1.5m, other can be customized
Length	30m,60m,other can be customized
Finished product	Regular: roll, can be cut into pieces
Packing	Paper tube, moisture-proof bag, wooden box or pallet packing
Customization	Our factory can design and produce various types of products according to user needs

Plain weave and twill weave stainless steel wire mesh reference specification:

Mesh	Wire Diameter (mm)	Opening (mm)	Mesh	Wire Diameter (mm)	Opening (mm)
2×2	1.60	11.10	40×40	0.25	0.38
3×3	1.37	7.09	50×50	0.20	0.31
4×4	1.60	4.75	60×60	0.18	0.23
4×4	1.19	5.16	60×60	0.18	0.25
5×5	1.00	4.04	70×70	0.12	0.24
6×6	0.89	3.35	80×80	0.14	0.15
8×8	0.71	2.46	90×90	0.12	0.16
10×10	0.64	1.91	100×100	0.10	0.15
12×12	0.58	1.52	120×120	0.09	0.12
12×12	0.50	1.60	150×150	0.063	0.11
14×14	0.23	1.22	180×180	0.053	0.09
14×14	0.50	1.30	200×200	0.053	0.07
16×16	0.45	1.13	250×250	0.04	0.063
18×18	0.43	0.98	300×300	0.04	0.044
20×20	0.40	0.87	325×325	0.035	0.043
24×24	0.35	0.70	350×350	0.03	0.042
30×30	0.30	0.54	400×400	0.028	0.036
30×30	0.23	0.62	450×450	0.028	0.028
35×35	0.28	0.45	500×500	0.025	0.026

Duth weaving stainless steel wire mesh reference specification:

mesh	wire dia (MM)	Material (AISI)
12 X 64	0.58/0.40	304 316
24 X 110	0.36/0.25	30.316
14 X88	0.50/0.33	30.316
30 X150	0.18/0.14	30.316
40 X200	0.14/0.11	30.316
50 X250	0.10/0.071	30.316
80 X700	0.06/0.05	30.316
165 X800	0.071/0.040	30.316
165 X1400	0.05/0.032	30.316
200 X1800	0.05/0.03	30.316
325 X2300	0.030/0.025	316L
400 X2800	0.030/0.02	316L

Ultra Fine Plain Heat-Resisting Woven Screen Wire Mesh Filter 304 316 Stainless Steel Filter Wire Mesh 1

Ultra Fine Plain Heat-Resisting Woven Screen Wire Mesh Filter 304 316 Stainless Steel Filter Wire Mesh 2
