5.5m 6m 5m 4m AISI304 316 Stainless Steel 1.2mm 5X5 Mesh Wire Mesh Screen for Paper Mill

Large Image : 5.5m 6m 5m 4m AISI304 316 Stainless Steel 1.2mm 5X5 Mesh Wire Mesh Screen for Paper Mill

Product Details:

Place of Origin:	China
Brand Name:	QIJIE
Certification:	ISO9001
Model Number:	QJ-004

Payment & Shipping Terms:

Minimum Order Quantity:	50 rolls
Price:	discuss
Packaging Details:	as requirement
Delivery Time:	15 - 20 days
Payment Terms:	TT/LC
Supply Ability:	1000 rolls per week

Contact Now

Detailed Product Description

Technique:	Woven	Material:	Stainless Steel Wire,316,304
Weave Style:	Plain/Twill Weave	Product Name:	Square 4X4 Woven Flour 100 Micron Stainless Steel Wire Mesh
Wire Diameter:	Requirement	Width:	Usually 1M
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	AISI304 stainless steel wire mesh , 5X5 mesh screen for paper mill , 1.2mm stainless steel woven mesh

5.5m 6m 5m 4m AISI304 316 Stainless Steel 1.2mm 5X5 Mesh Wire Mesh Screen for Paper Mill

Ultra width stainless steel wire mesh is a kind of weave stainless steel wire mesh. The mesh count can be 1-250 mesh. The weave type have plain and twill weaving. Because of its big width of the mesh, it is usually used in the field of high-precision filtration.

Application: wind tunnel test, for large size reactor screen,

Material: 304, 304L, 316, 316L, 904L, 2205, 2507, 430 etc.

Mesh: 2-12m

Roll size: can be custom as your requirement.

Stainless Steel Wire Mesh

Stainless steel wire mesh is a kind of mesh made of stainless steel.

Material: Stainless steel wire 304,304L,316,316L and so on
Weaving: Plain weave, twill weave, dutch weave
Mesh: 2 mesh-500 mesh
Usage:
1. For acid, alkali conditions for screening and filtering, the petroleum industry as mud mesh, chemical fiber industry, as the sieve plating.
2. For mining, petroleum, chemical, food, medicine, machinery manufacturing, and other industries.
3. For acid, alkali conditions sieving and filtering, the mud for the oil industry, chemical fiber industry as screen, electroplating industry for pickling net, the factory can according to user needs to design the production of various types of products.

Specification

Mesh	Wire Diameter (mm)	Opening (mm)	Mesh	Wire Diameter (mm)	Opening (mm)
2×2	1.60	11.10	40×40	0.25	0.38
3×3	1.37	7.09	50×50	0.20	0.31
4×4	1.60	4.75	60×60	0.18	0.23
4×4	1.19	5.16	60×60	0.18	0.25
5×5	1.00	4.04	70×70	0.12	0.24
6×6	0.89	3.35	80×80	0.14	0.15
8×8	0.71	2.46	90×90	0.12	0.16
10×10	0.64	1.91	100×100	0.10	0.15
12×12	0.58	1.52	120×120	0.09	0.12
12×12	0.50	1.60	150×150	0.063	0.11
14×14	0.23	1.22	180×180	0.053	0.09
14×14	0.50	1.30	200×200	0.053	0.07
16×16	0.45	1.13	250×250	0.04	0.063
18×18	0.43	0.98	300×300	0.04	0.044
20×20	0.40	0.87	325×325	0.035	0.043
24×24	0.35	0.70	350×350	0.03	0.042
30×30	0.30	0.54	400×400	0.028	0.036
30×30	0.23	0.62	450×450	0.028	0.028
35×35	0.28	0.45	500×500	0.025	0.026

Plain weave and twill weave stainless steel wire mesh reference specification:

Mesh	Wire Diameter (mm)	Opening (mm)	Mesh	Wire Diameter (mm)	Opening (mm)
2×2	1.60	11.10	40×40	0.25	0.38
3×3	1.37	7.09	50×50	0.20	0.31
4×4	1.60	4.75	60×60	0.18	0.23
4×4	1.19	5.16	60×60	0.18	0.25
5×5	1.00	4.04	70×70	0.12	0.24
6×6	0.89	3.35	80×80	0.14	0.15
8×8	0.71	2.46	90×90	0.12	0.16
10×10	0.64	1.91	100×100	0.10	0.15
12×12	0.58	1.52	120×120	0.09	0.12
12×12	0.50	1.60	150×150	0.063	0.11
14×14	0.23	1.22	180×180	0.053	0.09
14×14	0.50	1.30	200×200	0.053	0.07
16×16	0.45	1.13	250×250	0.04	0.063
18×18	0.43	0.98	300×300	0.04	0.044
20×20	0.40	0.87	325×325	0.035	0.043
24×24	0.35	0.70	350×350	0.03	0.042
30×30	0.30	0.54	400×400	0.028	0.036
30×30	0.23	0.62	450×450	0.028	0.028
35×35	0.28	0.45	500×500	0.025	0.026

Duth weaving stainless steel wire mesh reference specification:

mesh	wire dia (MM)	Material (AISI)
12 X 64	0.58/0.40	304 316
24 X 110	0.36/0.25	30.316
14 X88	0.50/0.33	30.316
30 X150	0.18/0.14	30.316
40 X200	0.14/0.11	30.316
50 X250	0.10/0.071	30.316
80 X700	0.06/0.05	30.316
165 X800	0.071/0.040	30.316
165 X1400	0.05/0.032	30.316
200 X1800	0.05/0.03	30.316
325 X2300	0.030/0.025	316L
400 X2800	0.030/0.02	316L

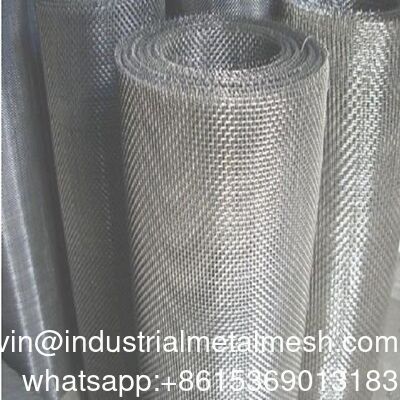

5.5m 6m 5m 4m AISI304 316 Stainless Steel 1.2mm 5X5 Mesh Wire Mesh Screen for Paper Mill 1

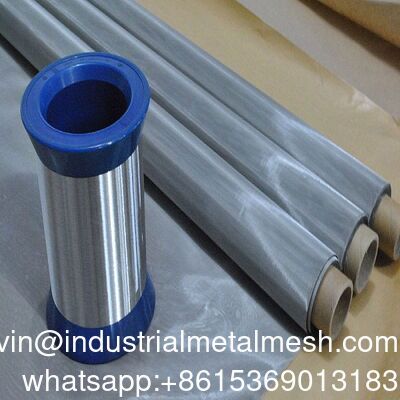

5.5m 6m 5m 4m AISI304 316 Stainless Steel 1.2mm 5X5 Mesh Wire Mesh Screen for Paper Mill 2

Features:
Corrosion resistance.
Anti-acid and alkali
Anti-high temperture.
Good filter performance.
Long using life

Application:

In acid, alkali environment conditions sieving and filtering.
Petroleum industry as mud mesh,.
Chemical fiber industry as screen mesh.
Plating industry as acid cleaning mesh.
