All Types Stainless Steel Perforated Metal Safety Grating

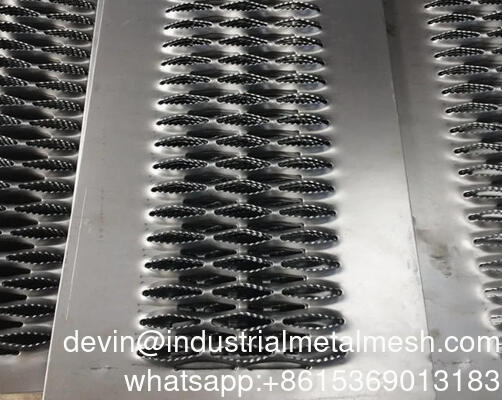

Large Image : All Types Stainless Steel Perforated Metal Safety Grating

Product Details:

Place of Origin:	hebei,China
Brand Name:	QIJIE
Certification:	iso
Model Number:	grip strut grating

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Packaging Details:	Pallets
Delivery Time:	15-18days
Payment Terms:	30%TT in advance,Balance before loading
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Material:	Aluminum,Galvanized Steel Wire	Products Name:	Grip Strut Grating
Type:	Perforated Mesh,Etching Or Stamping	Technique:	Perforated
Weave Style:	Perforated,Punched,Punching	Hole Shape:	Round,diamond,etc,plum Blossom,octagonal
Surface Treatment:	Spray Coating/Spray Painting/Fluorocarbon Coating,Hot Dipped Galvanized,galvanized And Fluoroca	Color:	All The Color Chip Have,White,blue,Silver,golden
Product Name:	Hexagonal Perforated Metal Sheet,expandable Sdiamond Mesh	Thickness:	0.5-8mm,0.3MM- 8MM
Feature:	Corrosion Resistance,Good-looking And Good Quality,Durable,Acid Resistance,anti-resistance	Width:	1m Or 1.22m,1.22 M Or Below
Usage:	Etc.,decorative,oil/air Filter,food	Length:	2m Or 2.44m
Size:	Customized Size,standard	Shape:	Square,Can Be Cut Into Round Or Square Shape,Round Shape,oval,Hexagon
Pitch:	1.0mm-100MM,or As Request.	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	stainless steel perforated metal grating , safety grating grip strut , perforated metal safety grating

All Types Stainless Steel Perforated Metal Safety Grating

Product Description

Anti-slip perforated safety grating is a type of metal plate that is manufactured using a CNC punching machine. This process allows us to create stamped and formed holes, giving the grating its unique design. One notable feature of this grating is that the edges of the holes are either raised or concave, providing a non-slip surface. That's why it is also known as anti-slip perforated metal plate.

We offer a wide variety of perforated metal safety grating products to suit your needs. Our range includes Perf-O grip safety grating, grip-strut safety grating, traction thread safety grating, interlocking safety grating, various patterns of anti-slip hole safety grating, and their corresponding accessories.

Grip Strut Safety Plank Grating Advantages

√ Reducing accident rates by providing a tiny serrated surface in all directions when walking
√ Meet American Federal Standard RR-G-1602D and OSHA requirements
√ Lightweight to assemble easily
√ High strength to provide enough load capacity and longer spans
√ Professional grating devices in different applications for you
√ Right angle channel bending to enlarge the higher strength and long life
√ Open Diamond design allowing a clean surface out of fluids, mud, chips, and debris.
√ No need to maintain

1. Varied material types
2. Greatly increased safety with a special non-slip serrated edge surface
3. Maintenance-free open diamond design with the self-cleaning feature
4. Heavy load-carrying capacity with minimal deflection
5. Easy to install with low erection cost
6. Versatile in applications

Product Features
Product Name	Anti Skid Perforated Slip-Resistant safety grating walkway grip strut
Hole type	Diamond ,Perf-O ,rectangular ,Embossed , Round ,Fish scalled
Width	Max 1250mm
Length	Max 6000mm
Bend Depth	50+20mm 35+20mm 75+20mm customized
MOQ	20pcs
Special Services	Site CAD Drawing , Free Samples , Installation Guide , Solid Packages
Loading Port	Tian Jin Port or Any Chinese Port

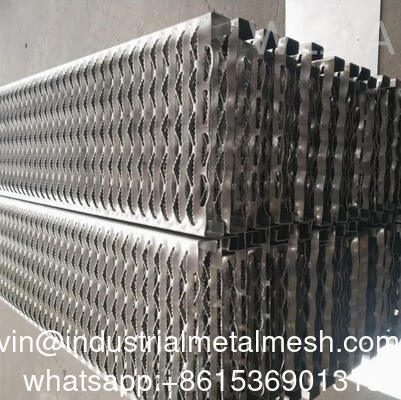

All Types Stainless Steel Perforated Metal Safety Grating 1

Item No.	Item Description	Standard Width	Standard Channel Depth	Standard Length
1	2-Diamond Plank	4.75'' (120.65mm)	1.5'', 2'' and 2.5'' (38.1mm, 50.8mm and 63.5mm)	10' and 12' (3048mm and 3657.6mm)
2	3-Diamond Plank	7'' (120.65mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
3	4-Diamond Plank	9.5'' (241.3mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
4	5-Diamond Plank	11.75'' (298.45mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
5	8-Diamond Plank	18.75'' (476.25mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
6	10-Diamond Plank	24'' (609.6mm)	2'' and 3'' (50.8mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
7	10-Diamond Walkway	24'' (609.6mm)	4.5'' (114.3mm)	10' and 12' (3048mm and 3657.6mm)

CAUTION:
Custom lengths, widths and channel depths are available upon request!

Diamond plank grating has a wide range of widths - from 4 3/4" (2-Diamond) to 24" (10-Diamond) for different applications. For example, standard walkway grating is usually 10-Diamond, and stair treads is available from 2-Diamond to 5-Diamond. Custom widths are welcome.

All Types Stainless Steel Perforated Metal Safety Grating 2

All Types Stainless Steel Perforated Metal Safety Grating 3

Features

Features: Anti-skid, anti-rust and anti-corrosion, uniform hole size, durable, without burs and broken holes, and lightweight design providing high strength-to-weight ratio and virtually maintenance free.
Surface pattern: Raised diamond pattern configuration in metal struts offering slip resistance in all directions of the steel grating.

Applications

Industrial walkways and platforms
Rooftop walkways and mezzanine flooring
Stair treads and ladders
Rack decking and work platforms
Signboard walkways

All Types Stainless Steel Perforated Metal Safety Grating 5

Advantages

1.Easy to maintain ,installation .2.Liquid slurry, ice ,snow in fast filtration channels .
3.High bearing capacity --High strength to weight ratio
4.Longer life than similar products
5.Light weight--easy to install and manufacturer
