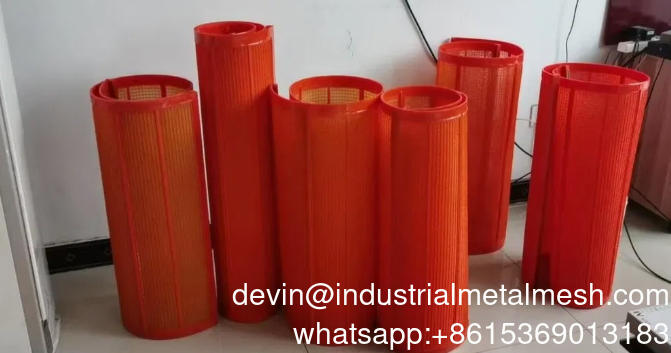

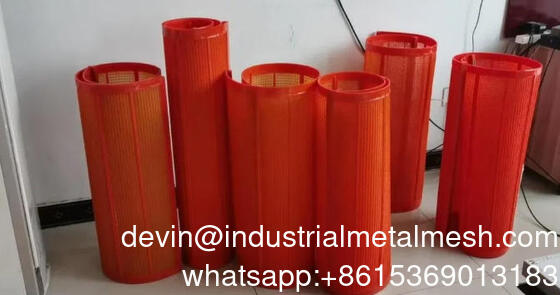

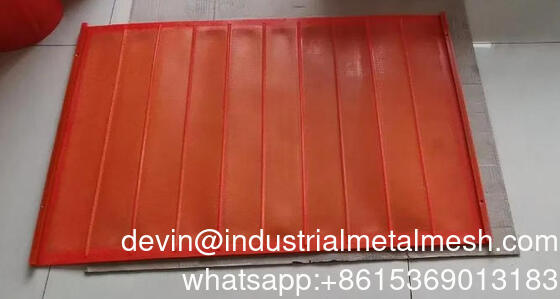

Premium Polyester Vibrating Wire Screen Mesh for Mining Applications



Material	Polyurethane elastomer with steel wire reinforcement
Aperture Range	0.1-170mm (customizable)
Max. Operating Temperature	-40°C to +80°C
Vibration Resistance	Up to 50G acceleration
Certifications	ISO-compliant, RoHS, and REACH standards



Key Features & Benefits

√ Unmatched Durability & Load Capacity

Steel-Reinforced Structure: Integrated steel wire skeleton and high-grade PU elastomers ensure high tensile strength and resistance to deformation, supporting heavy loads and harsh operating conditions.

Extended Service Life: Lasts 8-10x longer than metal screens and 3x longer than stainless steel alternatives, reducing replacement frequency and downtime.

√ Anti-Clogging & Self-Cleaning Design

140° Tapered Apertures: Unique hole geometry prevents material buildup, ideal for sticky or damp substances like coal, wet ores, and sludge.

Dynamic Self-Cleaning: Secondary harmonic vibrations during operation dislodge trapped particles, maintaining 95%+ screening efficiency.

√ Noise Reduction & Safety Compliance

Reduces operational noise by 5-20 dB compared to metal screens, ensuring compliance with workplace safety regulations.

Flame-retardant, non-toxic, and resistant to oils, chemicals, and extreme temperatures (-40°C to +80°C).

√ Easy Installation & Low Maintenance

Embedded Bolt-Free Design: Utilizes hook-type or tension-clamped mounting systems (e.g., 90° side clamps) for quick installation and minimal maintenance effort.

Lightweight (density: 1.32 kg/m³) reduces strain on vibrating equipment, lowering energy consumption by up to 30%.

√ Customizable Solutions

Aperture Sizes: Ranging from 0.1mm to 170mm, with options for square, round, or rectangular holes.

Compatible with all vibrating screen models, including flip-flow and linear motion systems.
