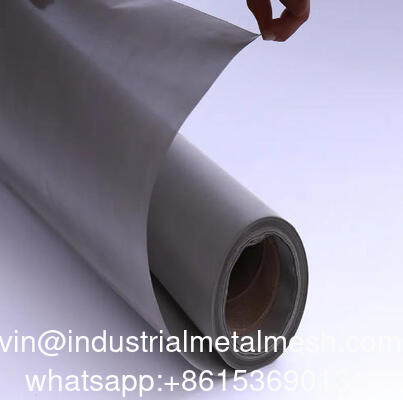

Low Price Fine Woven Stainless Steel Fine Polymer Extruder Mesh Screen

Large Image : Low Price Fine Woven Stainless Steel Fine Polymer Extruder Mesh Screen

Product Details:

Place of Origin:	China
Brand Name:	QIJIE
Certification:	ISO9001
Model Number:	QJ-004

Payment & Shipping Terms:

Minimum Order Quantity:	50 rolls
Price:	discuss
Packaging Details:	as requirement
Delivery Time:	15 - 20 days
Payment Terms:	TT/LC
Supply Ability:	1000 rolls per week

Contact Now

Detailed Product Description

Technique:	Woven	Material:	Stainless Steel Wire,316,304
Weave Style:	Plain/Twill Weave	Product Name:	Square 4X4 Woven Flour 100 Micron Stainless Steel Wire Mesh
Wire Diameter:	Requirement	Width:	Usually 1M
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	stainless steel extruder mesh screen , fine woven polymer mesh , stainless steel wire mesh screen

Low Price Fine Woven Stainless Steel Fine Polymer Extruder Mesh Screen

Stainless steel mesh is wire mesh, which is produced using weaving technology specially adapted to the material. The wires used can have a diameter of 12 µm to 7 mm, depending on the stainless steel alloy.

In industry, stainless steel mesh is mainly used in filtration and separation technology.

The stainless steel alloys used are crucial in determining the fields of use in terms of corrosion, temperatures and strengths. The currently available materials made of stainless steel and its alloys can be used in extremely corrosive environments as well as in applications exposed to very high temperatures.

1,Plain Weave: The most basic weaving pattern where warp and weft threads cross each other to form a flat surface.
2,Twill Weave: A weaving pattern in which weft threads pass over or under multiple warp threads, creating a diagonal line.
3,Plain Dutch Weave: Similar to plain weave but with different wire diameters, resulting in smaller mesh openings.
4,Twill Dutch Weave: Similar to twill weave but with different wire diameters, creating a denser mesh structure.
5,Reverse Dutch Weave: Differs from standard Dutch weave with thicker warp wires and fewer weft wires for higher strength and larger particle filtration capacity.

Usage:Filters ,sieve,chemical industry, mine industry, paper-making , etc
Material: SS 201,202,304,304L, 316,316L, 321, 430,ect
MOQ: 1 roll
Woven style: plain,twill,dutch
Mesh :1-635mesh
Diameter: 0.0008"-0.08"
Roll Width: Max 240"
Roll Length: Max 2000'
Packaging Details: inner kraft, outside plastic cloth, put into wooden pallet or case
Delivery Time: 5 days for stock material
Have exported: USA, EU , Japan and South America, etc

Stainless steel Wire Mesh Specification

Specification of stainless steel wire mesh

Type	Mesh/Inch	Wire Diameter(inch)	Open Area	Weight(LB)/100 Square Foot
Plain,Twill Weave Wire Mesh	1 × 1-635 × 635	0.0008"-0.08"	25 to 84.6	2.53 to 41.1
Type	Mesh/Inch	Wire Diameter(inch)	Absolute Filtration Finess µm	Nominal Filtration Finess µm
Plain Dutch Weave Wire Mesh	8× 85 - 80 × 400	0.014'' × 0.0216'' - 0.0049'' × 0.0028''	318-340 to 43-48	250-255 to 35-40
Twill Dutch Weave Wire Mesh	20 × 350-500 × 3200	0.0098'' × 0.0079'' - 0.0015'' × 0.0010''	110-120 to 8-9	98-105 to 2-3

Chemical composition of 316L stainless steel wire cloth(%)

C ≤	Si ≤	Mn ≤	P ≤	S ≤	Cr	Ni	Mo
0.03	1.00	2.00	0.045	0.030	16.0-18.0	10.0-14.0	2.0-3.0

Various standards of stainless steel 316L wire mesh

AISI	UNS	DIN	JIS	GB/T
316L	S31603	1.4404	SUS 316L	022Cr17Ni12Mo2

Key properties of ss316 wire mesh

Material	SUS 316L stainless steel wire
Color	Silver
Weave type	Plain dutch weave, Twill dutch weave and crimped
Mesh count	2 mesh – 500x3500mesh
Aperture	0.001mm – 25mm
Roll size	0.914mx30m, 1mx30m, 1.2mx30m, 2mx30m, etc
MOQ	1 square meter
Free Sample	A4 size of stock size
Package	Inside a paper tube, wrapped with moisture-proof paper, and then put into a box.

316L stainless steel mesh roll characteristics

Marine grade stainless steel.
Good machinability.
High strength and high toughness.
Good thermal stability.
Excellent corrosion resistance, especially in strong corrosive media such as chlorides.

316L stainless steel wire mesh application

For various filtration and separation requirements in the chemical industry, petroleum, Mining, shipbuilding, mining, food, .
Heat exchangers.
Decoration mesh.
Insect screen/mosquito screen.
Aerospace.
Waster water and ballast water filter.
Seawater treatment equipment.
Wire Mesh Basket Manufacturing.
Screen printing.

Other things you need to know about 316 stainless steel mesh

1. How to order?

When ordering the 316L stainless steel wire cloth, please specify the mesh count, wire diameter, hole size, weave type, mesh width, and length.

For example:
SS316L Screen Mesh 120 x 3′ x 100′ x 0.08mm Inquiry
SS316L Screen Mesh 100 x 3′ x 100′ x 0.1mm Inquiry.

More specifically such as:
Stainless steel mesh 316L, DTW 200/600, 40inch, 30meter , 1 roll
SUS 316L mesh, DTW 10 micron 200 x 1400 mesh, 0.07/ 0.04mm, size: 1m x 30m, 1 roll

2. Deep processing services

The wire mesh ss316 can be cut into different shapes of sheets, It can also be processed into filter tubes and filter caps.
For example, SS316L Screen Mesh 20 x 4 feet x 6 feet Long sheet, or SS316L Screen Mesh 60 x 59mm diameter Circular.
It can also be slit, for example, 200 mesh ss316 wire mesh can slit into 500mm width, and there will be 2 cutting rolls from 1m width 200 mesh 316 stainless steel mesh.

3. Detail application example

325 mesh 0.035mm wire diameter twill weave 316L stainless steel mesh used for stainless steel filter cartridge production.
300 mesh, 350 mesh, 400 mesh, 500 mesh Plain weave 316L stainless steel wire mesh used as screen printing mesh in Glass, ceramics, metals, plastics, rubber, and printed circuits industries.
24/110 mesh Dutch weave 316L stainless steel mesh used in the production of sunflower oil.

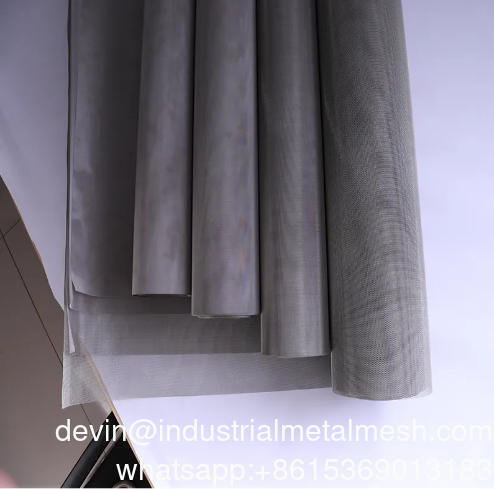

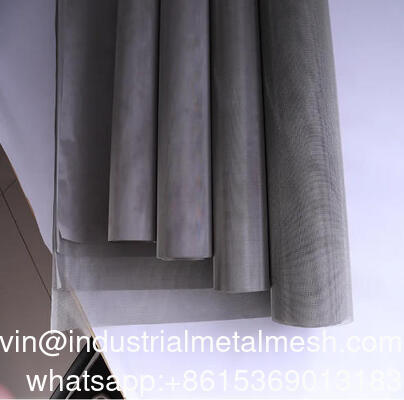

Low Price Fine Woven Stainless Steel Fine Polymer Extruder Mesh Screen 1

Low Price Fine Woven Stainless Steel Fine Polymer Extruder Mesh Screen 2

Low Price Fine Woven Stainless Steel Fine Polymer Extruder Mesh Screen 3

Low Price Fine Woven Stainless Steel Fine Polymer Extruder Mesh Screen 4
