316/304 Stainless Steel Filter Discs Fine Filter Mesh for Floor Drain Strainer

Large Image : 316/304 Stainless Steel Filter Discs Fine Filter Mesh for Floor Drain Strainer

Product Details:

Place of Origin:	China
Brand Name:	QIJIE
Certification:	ISO9001
Model Number:	QJ-004

Payment & Shipping Terms:

Minimum Order Quantity:	50 rolls
Price:	discuss
Packaging Details:	as requirement
Delivery Time:	15 - 20 days
Payment Terms:	TT/LC
Supply Ability:	1000 rolls per week

Contact Now

Detailed Product Description

Technique:	Woven	Material:	Stainless Steel Wire,316,304
Weave Style:	Plain/Twill Weave	Product Name:	Square 4X4 Woven Flour 100 Micron Stainless Steel Wire Mesh
Wire Diameter:	Requirement	Width:	Usually 1M
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	316 stainless steel filter disc , 304 stainless steel fine mesh , floor drain strainer filter

316/304 Stainless Steel Filter Discs Fine Filter Mesh for Floor Drain Strainer

Our ISO9001-certified Stainless Steel Woven Mesh is a high-performance, factory-direct product from China, crafted from premium grades (304, 304L, 316, 316L, etc.) using precision weaving technology. Available in 5 weave types (Plain/Twill/Sieve/Crimped/Square) and diverse specifications: wire diameter of 0.02–2.0mm, mesh count of 1–400 mesh/inch, standard roll sizes: 1–2.5m in width and 15–50m in length (fully customizable). It features excellent corrosion resistance, high temperature resistance, and a stable structure, suitable for industrial filtration, mining screening, architectural protection, decoration, and agricultural insect prevention. We offer flexible MOQ (100m² for spot orders) and customization services (7–15 working days lead time). Enjoy factory-direct pricing, free samples (buyer covers freight), a production capacity of 1000m²/day, and 24/7 after-sales support.

Exceptional Corrosion Resistance
Boasting exceptional corrosion resistance due to its chromium and nickel alloy composition: the 304 variant resists regular dampness and acid-base corrosion, while 316/316L models offer superior chloride ion corrosion resistance, ideal for harsh environments such as marine and chemical industries. It resists rust and degradation even with long-term use.

Superior Mechanical Stability
The tightly interwoven structure delivers high tensile strength and impact resistance. The mesh maintains its shape under pressure, ensuring stable screening/filtering accuracy for heavy industrial applications.

Precision Manufacturing AssuranceProduced with automated weaving equipment, mesh tolerance is controlled within ±0.01mm. The bidirectional weaving process for dense meshes further enhances filtration accuracy, meeting micron-level requirements in electronics, and other precision industries.

Versatile Multi-Scenario Application
From coarse-hole protective nets (construction fences, equipment protection) to fine-mesh filtration membranes (liquid filtration, dust separation), and from plain weave general-purpose nets to twill weave high-pressure-resistant nets, it can meet the customized needs of diverse industries.

Easy Processing & InstallationIt can be easily cut, bent, and welded into custom shapes to fit project requirements. The roll-based design enables convenient on-site deployment and secure fixation, significantly reducing construction time and labor costs.

Durability & Cost Efficiency
Boasting excellent wear and fatigue resistance, its service life is 5–10 times longer than that of ordinary nylon nets and standard wire meshes, minimizing the need for frequent replacements and long-term maintenance costs. Standardized roll packaging also reduces storage and logistics losses, further enhancing overall cost efficiency.

Usage:Filters ,sieve,chemical industry, mine industry, paper-making , etc
Material: SS 201,202,304,304L, 316,316L, 321, 430,ect
MOQ: 1 roll
Woven style: plain,twill,dutch
Mesh :1-635mesh
Diameter: 0.0008"-0.08"
Roll Width: Max 240"
Roll Length: Max 2000'
Packaging Details: inner kraft, outside plastic cloth, put into wooden pallet or case
Delivery Time: 5 days for stock material
Have exported: USA, EU , Japan and South America, etc

Stainless steel Wire Mesh Specification

Specification of stainless steel wire mesh

Type	Mesh/Inch	Wire Diameter(inch)	Open Area	Weight(LB)/100 Square Foot
Plain,Twill Weave Wire Mesh	1 × 1-635 × 635	0.0008"-0.08"	25 to 84.6	2.53 to 41.1
Type	Mesh/Inch	Wire Diameter(inch)	Absolute Filtration Finess µm	Nominal Filtration Finess µm
Plain Dutch Weave Wire Mesh	8× 85 - 80 × 400	0.014'' × 0.0216'' - 0.0049'' × 0.0028''	318-340 to 43-48	250-255 to 35-40
Twill Dutch Weave Wire Mesh	20 × 350-500 × 3200	0.0098'' × 0.0079'' - 0.0015'' × 0.0010''	110-120 to 8-9	98-105 to 2-3

Chemical composition of 316L stainless steel wire cloth(%)

C ≤	Si ≤	Mn ≤	P ≤	S ≤	Cr	Ni	Mo
0.03	1.00	2.00	0.045	0.030	16.0-18.0	10.0-14.0	2.0-3.0

Various standards of stainless steel 316L wire mesh

AISI	UNS	DIN	JIS	GB/T
316L	S31603	1.4404	SUS 316L	022Cr17Ni12Mo2

Key properties of ss316 wire mesh

Material	SUS 316L stainless steel wire
Color	Silver
Weave type	Plain dutch weave, Twill dutch weave and crimped
Mesh count	2 mesh – 500x3500mesh
Aperture	0.001mm – 25mm
Roll size	0.914mx30m, 1mx30m, 1.2mx30m, 2mx30m, etc
MOQ	1 square meter
Free Sample	A4 size of stock size
Package	Inside a paper tube, wrapped with moisture-proof paper, and then put into a box.

316L stainless steel mesh roll characteristics

Marine grade stainless steel.
Good machinability.
High strength and high toughness.
Good thermal stability.
Excellent corrosion resistance, especially in strong corrosive media such as chlorides.

316L stainless steel wire mesh application

For various filtration and separation requirements in the chemical industry, petroleum, Mining, shipbuilding, mining, food, .
Heat exchangers.
Decoration mesh.
Insect screen/mosquito screen.
Aerospace.
Waster water and ballast water filter.
Seawater treatment equipment.
Wire Mesh Basket Manufacturing.
Screen printing.

Other things you need to know about 316 stainless steel mesh

1. How to order?

When ordering the 316L stainless steel wire cloth, please specify the mesh count, wire diameter, hole size, weave type, mesh width, and length.

For example:
SS316L Screen Mesh 120 x 3′ x 100′ x 0.08mm Inquiry
SS316L Screen Mesh 100 x 3′ x 100′ x 0.1mm Inquiry.

More specifically such as:
Stainless steel mesh 316L, DTW 200/600, 40inch, 30meter , 1 roll
SUS 316L mesh, DTW 10 micron 200 x 1400 mesh, 0.07/ 0.04mm, size: 1m x 30m, 1 roll

2. Deep processing services

The wire mesh ss316 can be cut into different shapes of sheets, It can also be processed into filter tubes and filter caps.
For example, SS316L Screen Mesh 20 x 4 feet x 6 feet Long sheet, or SS316L Screen Mesh 60 x 59mm diameter Circular.
It can also be slit, for example, 200 mesh ss316 wire mesh can slit into 500mm width, and there will be 2 cutting rolls from 1m width 200 mesh 316 stainless steel mesh.

3. Detail application example

325 mesh 0.035mm wire diameter twill weave 316L stainless steel mesh used for stainless steel filter cartridge production.
300 mesh, 350 mesh, 400 mesh, 500 mesh Plain weave 316L stainless steel wire mesh used as screen printing mesh in Glass, ceramics, metals, plastics, rubber, and printed circuits industries.
24/110 mesh Dutch weave 316L stainless steel mesh used in the production of sunflower oil.

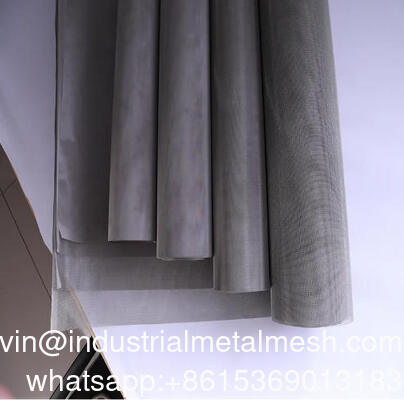

316/304 Stainless Steel Filter Discs Fine Filter Mesh for Floor Drain Strainer 1

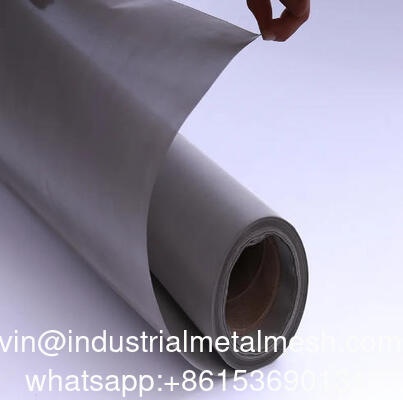

316/304 Stainless Steel Filter Discs Fine Filter Mesh for Floor Drain Strainer 2

316/304 Stainless Steel Filter Discs Fine Filter Mesh for Floor Drain Strainer 3

316/304 Stainless Steel Filter Discs Fine Filter Mesh for Floor Drain Strainer 4
