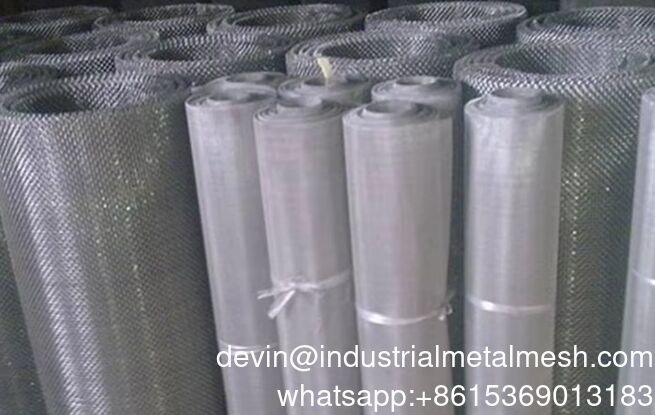

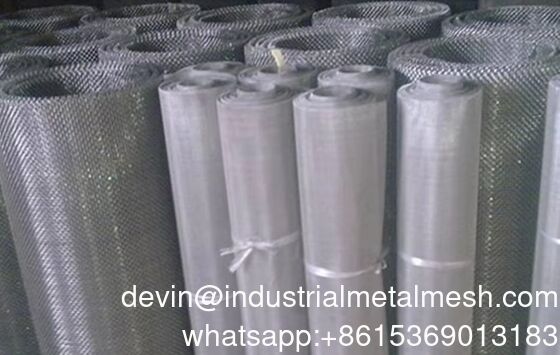

1m 1.2m1.5m Width Ss Dutch Weave Stainless Steel Wire Mesh

1m 1.2m1.5m Width Ss Dutch Weave Stainless Steel Wire Mesh

• Types:

• Plain Weave
• Twilled Dutch Weave
• Reverse Dutch Weave

• lain dutch weave
  Gauge No.	Mesh	Wire Dia.(MM)	Reference Aperture (um)
  40	10×64	0.55×0.42	260
  50	12×75	0.45×0.35	220
  80	24×110	0.35×0.25	160
  100	25×140	0.28×0.20	100
  120	30×150	0.25×0.18	80
  140	35×180	0.20×0.16	70
  160	40×200	0.18×0.13	60
  180	45×220	0.16×0.12	56
  200	50×250	0.15×0.11	50
  240	60×300	0.14×0.09	45
  260	65×320	0.13×0.08	36
  280	70×400	0.125×0.07	34
  300	80×700	0.11×0.039	32

  Twill dutch weave
  Gauge No.	Mesh	Wire Dia.(MM)	Reference Aperture (um)
  80II	20×250	0.28×0.2	38
  120II	30×300	0.25×0.18	36
  200II	50×500	0.14×0.11	34
  320I	80×700	0.10×0.17	32
  320II	80×780	0.10×0.07	30
  360	90×780	0.10×0.07	25
  400I	100×780	0.10×0.07	22
  400II	100×900	0.10×0.063	20
  500	120×1100	0.07×0.05	17
  630	150×1400	0.063×0.04	16
  650	165×1400	0.07×0.04	14
  685	180×1800	0.063×0.032	13
  795I	200×1400	0.07×0.04	12
  795II	200×1800	0.05×0.032	10
  850	210×1900	0.045×0.03	10
  1000	250×2000	0.045×0.028	8
  1125	280×2200	0.036×0.026	7
  1200	300×2200	0.036×0.026	6
  1280	325×2300	0.035×0.025	5
  1600	400×2800	0.03×0.018	3

  Plain Dutch Weave: Woven as a plain weave, but with the warp wires of greater diameter than the weft wires. The weft wires are very close together so that a so-called zero-mesh structure is formed; while the warp wires are thicker.

  Dutch Twill Weave: Each weft wire passes alternately over two, and then under two successive warp wires and each warp wire passes alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.

  Reverse Dutch Weave: Reverse Dutch Weave. The same weave as Dutch except the warp & weft wires are reversed, i. E the warp wires have a smaller diameter than the weft wires. The larger weft wires are woven closer together than would usually be seen in a Dutch weave.

  Applications of Stainless Steel Reverse Dutch Wire Mesh
  Stainless steel reverse dutch wire mesh is suitable for filtering of plastic wire drawing machine, stretch film machine and coating machine. Such as plastic woven bag, plastic film etc.

  Product Name	Dutch Wire Mesh/Dutch Woven Wire Mesh Cloth
  Material	Stainless steel 201 304 316 316L ,Nickel wire, Black iron wire, Inconel etc
  Filter Rating	1um-350um
  Weave Type	Plain Dutch Weave; Twilled Dutch Weave
  Width	1m-1.6m
  Feature	Stable and Fine Filtration Performance
  Application	Used for precision pressure filter, fuel filter, vacuum filter, also suitable for aerospace, petroleum, chemical, chemical fiber, rubber, tire manufacturing, metallurgy, medicine, food and other industries.
  Common Specifications	12 x 64 mesh * 0.58mm x 0.40mm * 280um 24 x 110 mesh * 0.355mm x 0.25mm * 120um 30 x 150 mesh * 0.25mm x 0.18mm * 80um 45 x 250 mesh * 0.16mm x 0.112mm * 56um 70 x 350 mesh * 0.11mm x 0.08mm * 35um 127 x 1100 mesh * 0.07mm x 0.05mm * 17um 165 x 1400 mesh * 0.071mm x 0.04mm * 16um 200 x 1400 mesh * 0.071mm x 0.04mm * 12um 254 x 2000 mesh * 0.04mm x 0.028mm * 8um 325 x 2300 mesh * 0.035mm x 0.025mm * 5um 400 x 3100 mesh * 0.035mm x 0.019mm * 3um

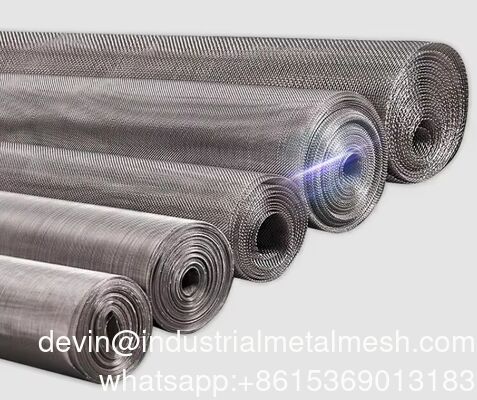

Dutch Weave Wire Mesh in different shapes :
