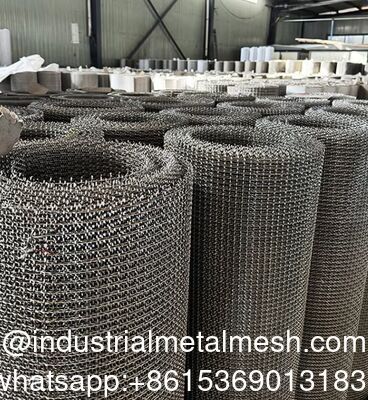

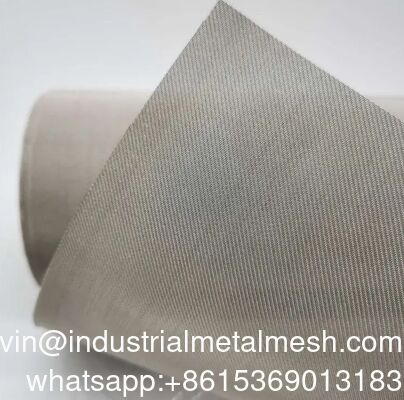

Best Sale Durable Ss 316 304 Stainless Steel/Galvanized Wires/Steel Wires Crimped Woven Wire Mesh

Stainless steel wire mesh is also called stainless steel wire cloth, Stainless steel woven wire mesh, Stainless steel filter mesh, Stainless steel screen mesh, used in a wide variety of industries since it is one of the most common materials for woven wire mesh products besides mild steel and galvanized steel with different properties. with its the excellent resistance against acid, alkali, heat and corrosion, find extensive uses in processing of oils, chemicals, food,  also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace, machine making, etc

• Stainless steel wire materials in SUS302, 304, 316, 304L, 316L.
  Typical Weaving Patterns for Stainless Steel Wire Mesh: Plain weave, twill weave, Dutch weave.
  Usually in 30m ( up to 200) long and in width of 1m 1.2m 1.5m 2.0metc. Or cut to strip or punched into disc as clients requirement
  We also can make supper width 2.0M to 6.0M , which usually used on paper-making mesh.

  Plain Weave

  Twill Weave

  Plain is the most common weave. Matching diameter warp and shute sires are woven in a simple over / under pattern producing screens with the same mesh count in both directions. This creates a square opening screen.

  Each shute wire passes over / under 2 warp wires in twill weave. Higher diameter wires can be used for higher mechanical strength, density and corrosion resistance.

  Twilled Dutch Weave

  Plain Dutch Weave

  Woven 2 over / 2 under with a smaller diameter shute wire, creating a tighter weave and higher particle retention than Plain Dutch Weave.
  The weaving process allows for the use of very fine wires, to micron size.

  Woven with a standard over / under pattern with heavier warp wires.Causes shute wires to weave very close together, creating a high density mesh with low flow rates, high strength and high particle retention.
  The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh.


  Use:
  1. Used for screening and filtration under acid and alkali environmental conditions. In the petroleum industry, it is used as a mud net, in the chemical and chemical fiber industry, as a screen filter, and in electroplating...
  2 Used in mining, petroleum, chemical industry, food, medicine, machinery manufacturing and other industries...

  Features:
  1. Uniform mesh, good production reproducibility;
  2. Good resistance to acid, alkali and corrosion;
  3. High strength,tensile strength, toughness and wear resistance, long service life;
  4. Uniform structure, non - crimp, easy to use, uniform thickness, antistatic;
  5. High temperature oxidation resistance, 304 stainless steel screen nominal tolerance temperature of 800 degrees Celsius, 310S stainless steel screen name it can withstand temperatures up to 1150 degrees Celsius

  Item	Details
  Material	304 / 316 / 316L Stainless Steel / other
  Weave Type	Plain Weave
  Mesh Size	1x1 to 635x635 (Customizable)
  Wire Diameter	0.016mm - 5mm
  Width	0.05m - 3m (or Custom)
  Length	1m - 30m (Roll) or Custom Cut
  Surface Treatment	Epoxy Coating / PTFE Coating / Ultrasonic cleaning
  Temperature Resistance	Up to 800°C (1472°F)
  Certification	ISO 9001, ASTM E2016, RoHS
  Packaging	Waterproof Film + Wooden Case



  Mesh/inch Diameter(mm) Aperture(mm) 100mesh 0.14 0.114 120mesh 0.1 0.111 150mesh 0.09 0.079 180mesh 0.07 0.071 200mesh 0.06 0.067 250mesh 0.045 0.0566 300mesh 0.04 0.0446 325mesh 0.035 0.043 350mesh 0.032 0.0405 400mesh 0.03 0.0335 450mesh 0.026 0.0304 500 mesh 0.025 0.0258 600 mesh 0.018 0.0243 635mesh 0.018 0.022
