New 304/316 7*7 Stainless Steel Woven Protection Fence Flexible Metal Wire Rope Bird Cage Cable Protecting Safety Mesh

New 304/316 7*7 Stainless Steel Woven Protection Fence Flexible Metal Wire Rope Bird Cage Cable Protecting Safety Mesh

Large Image :  New 304/316 7*7 Stainless Steel Woven Protection Fence Flexible Metal Wire Rope Bird Cage Cable Protecting Safety Mesh

Product Details:
Place of Origin: Hebei, China
Brand Name: QIJIE
Certification: CE,SGS,ISO
Model Number: SW-004
Payment & Shipping Terms:
Minimum Order Quantity: 10 square meters
Packaging Details: wooden case
Delivery Time: 10-15 working days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 3000 m2/month
Detailed Product Description
Material: STAINLESS STEEL WIRE Type: Rope Mesh, Ferrule Type Or Knotted Type
Application: Protecting Mesh Weave Style: Plain Weave
Technique: Woven Model Number: Steel Wire Rope Mesh
Processing Service: Weave Raw Material: Stainless Steel 304 316, Galvanized Wire
Accessories: All Could Be Provided Email: Devin@industrialmetalmesh.com
Whatsapp: +8615369013183
Highlight:

304 stainless steel wire rope mesh

,

flexible metal safety mesh fence

,

woven bird cage protection cable

New 304/316 7*7 Stainless Steel Woven Protection Fence Flexible Metal Wire Rope Bird Cage Cable Protecting Safety Mesh

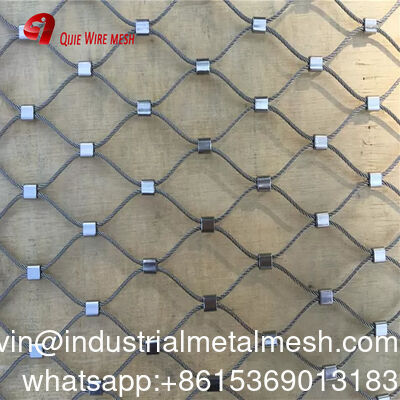

A premium fabric with strength and flexibility made up with a network of strands of stainless steel cables that are knotted and twisted. The construction is made up of stainless steel wire ropes parallel in pairs and mutually connected by crimped sleeves or weaving knots. When stretched, the net construction produces a spring force which varies from different opening degree and wire mesh rope diameter. Stainless Steel Rope Mesh is a vibrant and quality product with customized opening and various wire diameter (1.2 mm, 1.6 mm, 2 mm, 2.4 mm and 3.2 mm). All our meshes are made from either AISI 316 or 304 material group.

Stainless Steel Rope Mesh
Stainless steel rope mesh is made from high tensile stainless steel 304, 316, 304L and 316L. Stainless steel rope mesh can be divided into two kinds according to the combination method: stainless steel knotted rope mesh and stainless steel ferrule rope mesh. The former is combined by the ropes winded together. And the latter is combined by the ferrules which are made up from the same grade stainless steel.

Material: Stainless Steel 304, 304L, 316, 316L.

Wire diameter: 1.0 mm - 5.0 mm.

Construction of wire cable: 7 × 7, 7 × 19.

Weaving Types: Handwoven, Open type buckle, Closed type buckle.

Mesh opening sizes: 25-200 mm.
Mesh opening angles: 20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Surface treatment: primary color or black oxide finish.
Connection: Ferrule or knotted.
Ferrule material: stainless steel, tinned copper, nickel plated copper.
Product Specifications
(Custom configurations available upon request.)
Material
Twisting high-strength steel wire, common materials include stainless steel wire, galvanized steel wire, etc.
Features

High strength and impact resistance, Flexibility, Corrosion resistance, Transparency

Application
Slope protection, Active protection, Passive protection, Building protection, Zoos and breeding farms, Sports facilities
Size
Customizable



Specification
Structure
Diameter(mm)
Aperture(mm)
7*7
1.0
10*10
7*7
1.2
15*15
7*7
1.2
20*20
7*7
1.5
25*25
7*7/7*19
2.0
30*30, 50*50
7*7/7*19
2.5
50*50, 80*80
7*7/7*19
3.0
50*50, 80*80,100*100
7*7/7*19
3.5
80*80,100*100, 150*150
7*7/7*19
4.0
100*100, 150*150, 200*200
Length: 1-100m
Width:1-10m

New 304/316 7*7 Stainless Steel Woven Protection Fence Flexible Metal Wire Rope Bird Cage Cable Protecting Safety Mesh 0

Applications:
1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals

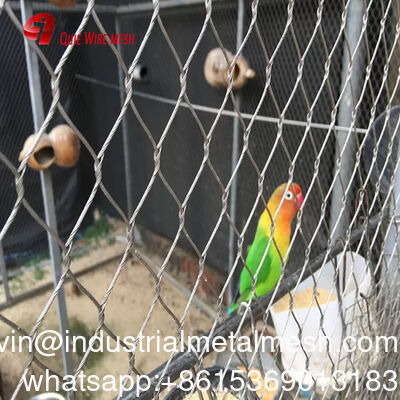

6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants





Advantages

· Durable and Corrosion-Resistant: This stainless steel rope mesh is made from 7x19 stainless steel wire, ensuring a durable and long-lasting product that resists corrosion and withstands harsh environments.
· Customizable Size and Length: The product is available in various sizes and lengths, allowing customers to choose the perfect fit for their specific needs, from 30m to a fully customizable option.
· Versatile Applications: This stainless steel rope mesh is suitable for various applications, including building and construction, making it an ideal choice for customers who require a versatile product.
· Easy to Install: The rope mesh features a plain weave style and a square hole shape, making it easy to install and assemble, saving customers time and effort.
· Fast Delivery and Competitive Pricing: With a delivery time of 8-14 days and a minimum order quantity of 1 roll, customers can receive their product quickly and at a competitive price, making it an excellent value for money.

New 304/316 7*7 Stainless Steel Woven Protection Fence Flexible Metal Wire Rope Bird Cage Cable Protecting Safety Mesh 1



New 304/316 7*7 Stainless Steel Woven Protection Fence Flexible Metal Wire Rope Bird Cage Cable Protecting Safety Mesh 2
