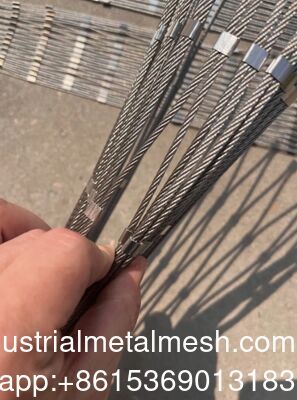

Stainless Steel Ferrule Woven Cable Rope Mesh: Beauty and Strength Combined

Stainless Steel Ferrule Woven Cable Rope Mesh: Beauty and Strength Combined

Large Image :  Stainless Steel Ferrule Woven Cable Rope Mesh: Beauty and Strength Combined

Product Details:
Place of Origin: Hebei, China
Brand Name: QIJIE
Certification: CE,SGS,ISO
Model Number: SW-004
Payment & Shipping Terms:
Minimum Order Quantity: 10 square meters
Packaging Details: wooden case
Delivery Time: 10-15 working days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 3000 m2/month
Detailed Product Description
Material: STAINLESS STEEL WIRE Type: Rope Mesh, Ferrule Type Or Knotted Type
Application: Protecting Mesh Weave Style: Plain Weave
Technique: Woven Model Number: Steel Wire Rope Mesh
Processing Service: Weave Raw Material: Stainless Steel 304 316, Galvanized Wire
Accessories: All Could Be Provided Email: Devin@industrialmetalmesh.com
Whatsapp: +8615369013183
Highlight:

stainless steel woven cable rope mesh

,

ferrule wire rope mesh

,

stainless steel cable mesh with warranty

Stainless Steel Ferrule Woven Cable Rope Mesh: Beauty and Strength Combined​



Stainless steel cable netting. also called X-TEND mesh/Webnet, is manufactured from robust, high-grade DIN 1.4401/AISI 316 stainless steel cables. The cables are swaged with tinned copper (type CX) or stainless steel (types CXE and CXS) clamps in a special process to form a mesh structure that is both stressable and flexible and suited for either two- or three-dimensional applications. X-TEND keeps its shape indefinitely and stands for long lasting use.
X-TEND is fabricated from high-quality and robust stainless steel cables (material: AISI316). These are linked together by a special method using stainless steel ferrules to form a stressable yet flexible structure for two- or three-dimensional applications. X-TEND keeps its shape indefinitely and requires little maintenance only during its long lifetime.



Stainless Steel Rope Mesh Specification:

Material: SS304, 304L, 316, 316L

Structure: 7x7 and 7x19

Rope diameter: 1.0, 1.2, 1.5, 1.6, 2.0, 2.4, 2.5, 3.0, 3.2, 4.0mm etc.

Hole Size: 20x20, 25.4x25.4, 30x30, 35x35, 38x38, 40x40, 45x45, 51x51, 60x60, 70x70, 76x76, 80x80, 90x90, 100x100, 120x120, 150x150mm etc.

Material
stainless steel 304, 304L, 316, 316L
Surface treatment
primary color or black oxide finish
Cable diameter
1.0-5.0 mm
Mesh opening sizes
25-200 mm
Mesh opening angles
20°, 30°, 60°, 70°, 75°. Mesh aperture at 60° as standard opening.
Construction of wire cable
7 × 7, 7 × 19
Connection
ferruled or knotted
Ordering
specific to order, according to the project.
Application
zoo mesh, green facades, aviary mesh, decorative mesh, fall protection netting, bridge cable mesh, stairwell guidance, etc.



Specification
Structure
Diameter(mm)
Aperture(mm)
7*7
1.0
10*10
7*7
1.2
15*15
7*7
1.2
20*20
7*7
1.5
25*25
7*7/7*19
2.0
30*30, 50*50
7*7/7*19
2.5
50*50, 80*80
7*7/7*19
3.0
50*50, 80*80,100*100
7*7/7*19
3.5
80*80,100*100, 150*150
7*7/7*19
4.0
100*100, 150*150, 200*200
Length: 1-100m
Width:1-10m

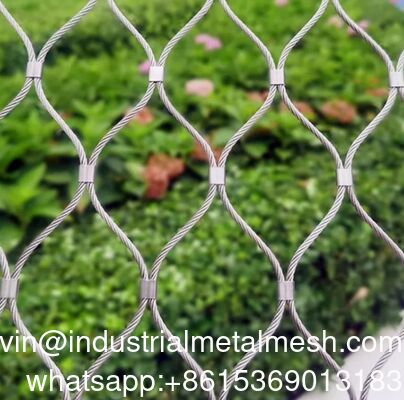

Stainless Steel Ferrule Woven Cable Rope Mesh: Beauty and Strength Combined 0

Applications:
1. Steel Mesh Balustrade - bridge, stair, balcony, path
2. Cable Mesh - Excellent Solution to Safety
3. Safety Net - Structural Measure to Prevent Suicide
4. Helipad Safety Net - Modular Heliport Webbing
5. Cable Zoo Mesh - Solution to Enclosing Most Animals
6. Aviary Netting - Lightweight, Durable and Long Lasting
7. Green Facade - Cable System for Most Climbing Plants





Advantages

· Durable and Corrosion-Resistant: This stainless steel rope mesh is made from 7x19 stainless steel wire, ensuring a durable and long-lasting product that resists corrosion and withstands harsh environments.
· Customizable Size and Length: The product is available in various sizes and lengths, allowing customers to choose the perfect fit for their specific needs, from 30m to a fully customizable option.
· Versatile Applications: This stainless steel rope mesh is suitable for various applications, including building and construction, making it an ideal choice for customers who require a versatile product.
· Easy to Install: The rope mesh features a plain weave style and a square hole shape, making it easy to install and assemble, saving customers time and effort.
· Fast Delivery and Competitive Pricing: With a delivery time of 8-14 days and a minimum order quantity of 1 roll, customers can receive their product quickly and at a competitive price, making it an excellent value for money.

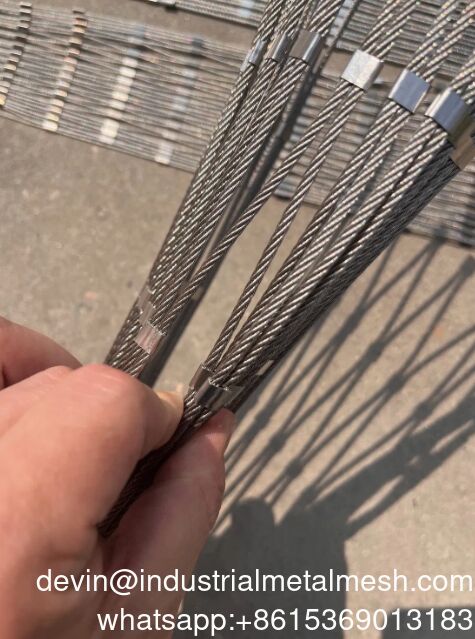

Stainless Steel Ferrule Woven Cable Rope Mesh: Beauty and Strength Combined 1



Stainless Steel Ferrule Woven Cable Rope Mesh: Beauty and Strength Combined 2
