High Ribbed Formwork 0.35mm Galvanised Metal Rib Lath for Construction

Large Image : High Ribbed Formwork 0.35mm Galvanised Metal Rib Lath for Construction

Product Details:

Place of Origin:	Hebei, China
Brand Name:	XMESH
Certification:	SGS
Model Number:	1/8" 0.35mm

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Packaging Details:	Pallets
Delivery Time:	15-25days
Payment Terms:	TT,LC,
Supply Ability:	1000/pcs

Contact Now

Detailed Product Description

Material:	Galvanized Steel Sheets	Size:	610x2440mm
Rib Height:	1/8"	Thickness:	0.35mm
Application:	Protecting Mesh,Screen	Type:	Expanded Mesh,Flattened And Standard,Raised Type
Technique:	Perforated,Woven	Weave Style:	EXPANDED METAL
Surface Treatment:	Hot Dipped Galvanized,Powder Coated,Galvanized,powder Coating	Product Name:	Expanded Metal Mesh,Aluminum Expanded Metal
Feature:	Corrosion Resistance,Durable,Beautiful,lacquer,Easily Assembled	Usage:	Liquid Filter,screen,Construction
Hole Shape:	Diamond Hole	Length:	30m
Width:	0.5-2m	Packing:	Wooden Box,plastic Film,pallet
Short Way Of Mesh:	2-40mm	Sample:	Free
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	galvanized metal rib lath , high ribbed formwork mesh , 0.35mm expanded metal lath

High Ribbed Formwork 0.35mm Galvanised Metal Rib Lath for Construction

High Ribbed formwork is manufactured from hot-dipped galvanized steel sheets. Because its meshes and U patterns, it has better anti-stress capability and forming flexibility than normal metal lath. This product has excellent engineering quality, construction security and widely used in building construction to form retaining walls, columns, stop ends, construction joints and used to support slab flooring.

Rib Metal Lath

High Bond Strength: The deep ribs allow the concrete or plaster to adhere more effectively, increasing the overall structural integrity. Flexibility

Rib Mesh can be easily shaped and adapted to complex forms, making it ideal for irregular or curved surfaces. Lightweight: Despite its strength,

Rib Mesh is relatively lightweight, reducing the load on structural elements and simplifying handling on-site. Efficient Installation:

The design reduces the need for extensive support structures during installation, cutting down on labor and material costs.

Rib lath is popularly known as Expanded Rib Lath, due to its process of expanding of metal sheet. Galvanized steel ribbed lathe
offers ideal building material for plastering base, structural form work and fireproofing construction.
Ribbed Lath made of galvanized steel has anti-corrosion properties and allows for smooth application of coatings such as plaster.
Ribbed Lath offers an adaptable, low cost and efficient solutions for a wide range of construction requirements.

3. Specification

Rib Lathes, 5 Rib, 7 Rib and 9 Rib Design

Rib Type	Thickness(mm)	Rib Distance(mm)	Weight (KG)	Width X length(mm)
7 Rib	0.30	100	1.79	610 X 2440
	0.35	100	2.09	610 X 2440
	0.40	100	2.38	610 X 2440
	0.45	100	2.68	610 X 2440
	0.5	100	2.98	610 X 2440
5 Rib	0.30	150	1.31	610 X 2440
	0.35	150	1.53	610 X 2440
	0.40	150	1.75	610 X 2440
	0.45	150	1.96	610 X 2440
	0.5	150	2.17	610 X 2440
9 Rib	0.30	75	1.89	610 X 2440
	0.35	75	2.28	610 X 2440
	0.40	75	2.53	610 X 2440
	0.45	75	2.84	610 X 2440
	0.5	75	3.15	610 X 2440
Other specifications can be customized according to customer requirements

Normal Weight Specification
The expanded metal lath is commonly available in following weights:
1.75 lbs per square yard;
2.5 lbs per square yard;
3.4 lbs pounds per square yard.

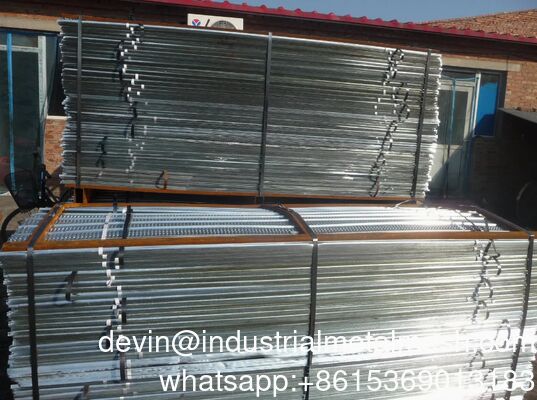

High Ribbed Formwork 0.35mm Galvanised Metal Rib Lath for Construction 0

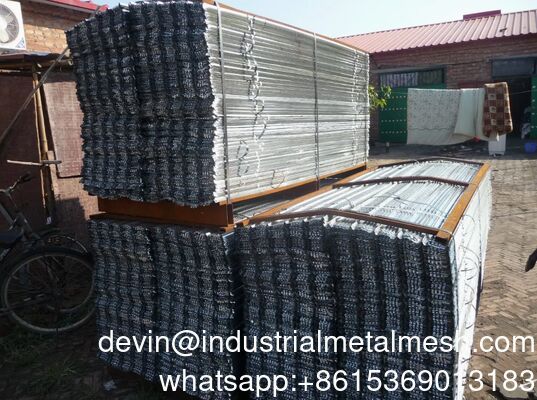

High Ribbed Formwork 0.35mm Galvanised Metal Rib Lath for Construction 1
