Non-Corrosive Security Window Screen Anti Mosquito Insect

Large Image : Non-Corrosive Security Window Screen Anti Mosquito Insect

Product Details:

Place of Origin:	Hebei, China
Brand Name:	XMESH
Certification:	SGS
Model Number:	18 x 14 mesh

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Packaging Details:	wood case, palelts
Delivery Time:	15-25days
Payment Terms:	TT/LC
Supply Ability:	1000meters per week

Contact Now

Detailed Product Description

Mesh:	18 X 14 Mesh	Surface Treatment:	Nature Color
Material:	SUS304	Color:	Nature
Products Name:	Stainless Steel Insect Screen	Width:	6ft
Length:	30meters	Use:	Window Insect Screen
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	non-corrosive security window screen , anti mosquito insect screen mesh , fly screen mesh with warranty

Non-Corrosive Security Window Screen Anti Mosquito Insect

King Kong net It also can be named anti-theft screen, bulletproof screen, crim-safe security screen. It's woven by high quality stainless steel wire and with coated surface, so it has the high performance of high strength,simple and powerful, resisting shear and anti-shock to reach the features of bulletproof, anti-theft, ventilate, light transmitting, artistic and safe. It's widely used government department, luxury villas and commercial buildings.

Product name	King Kong net
Material	SS302/304/304L/316/316L.
Weaving Patterns	Weaving after crimping.
Process	After first rolling,two-way wave bending, locked bending,flat-topped cured,two-way bending,on-way wave bending,rectangular mesh weaving,mesh has woven solid,durable,mesh uniform characteristics.
Use	Mailnly used in hotels,public buildings,civil residences against bugs,insects,ect.

DESCRIPTION	DESCRIPTION			APPLICATION
DESCRIPTION	MESH	WIRE GAUGE	SIZE	APPLICATION
STAINLESS STEEL WIRE SCREENING	10X10 14X14 16X16 18X18 18X14 22X22 24X24	BWG18 BWG24 BWG38 BWG37 BWG36 BWG35 BWG34	3'X100' 4'X100' 1X25M 1.5X25M	MATERIAL 304,316,316L
GAL.IRON WINDOW SCREENING	10X10 14X14 16X16 18X18 18X14 22X22 24X24	BWG31 BWG32 BWG33 BWG34	3'X100' 4'X100' 1X25M 1.2X30M 1.5X25M	ELECTRIC GAL. AFTER WEAVING WHITE OR LIGHT-BLUE
ENAMELLED IRON WINDOW SCREENING	10X10 14X14 16X16 18X18 18X14 22X22 24X24	BWG31 BWG32 BWG33 BWG34	3'X100' 4'X100' 1X25M 1.2X30M 1.5X25M	GREEN OR DARK GREEN
ALUMINIUM COATED WINDOW SCREENING	10X10 14X14 16X16 18X18 18X14 22X22 24X24	BWG31 BWG32 BWG33 BWG34	3'X100' 4'X100' 1X25M 1.2X30M 1.5X25M	SILVER
PLASTIC WIRE WINDOW SCREENING	10X10 14X14 16X16 18X18 18X14 22X22 24X24	BWG31 BWG32	3'X100' 4'X100' 1X25M 1.5X25M	MESH12,14,16 HINGED WEAVE MESH18,22,24 PLAIN WEAVE WHITE,BLUE GREEN,ECT
ALUMINIUM WIRE WINDOWSCREENING	10X10 14X14 16X16 18X18 18X14 22X22 24X24	BWG31 BWG32 BWG33 BWG34	3'X100' 4'X100' 1X25M 1.2X30M 1.5X25M	MATERIAL:AL-MG ALLOY OR ENAMELLED ALUMINIUM WINDOW SCREENING

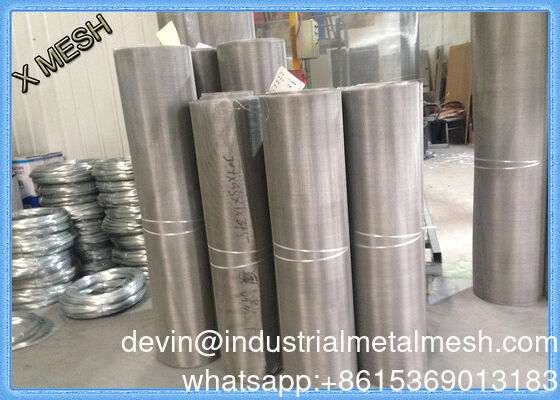

Non-Corrosive Security Window Screen Anti Mosquito Insect 0

stainless steel window screen-001

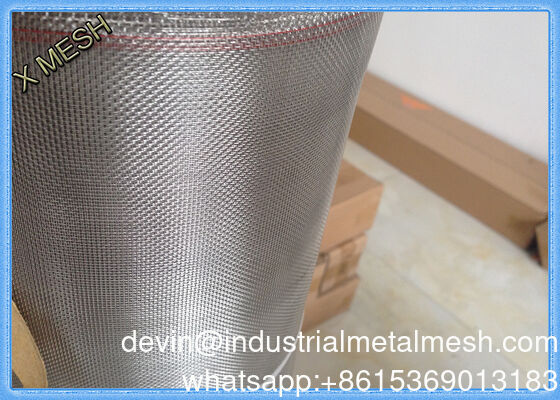

Non-Corrosive Security Window Screen Anti Mosquito Insect 1

stainless steel window screen-002

Material Of stainless steel insect screen:
stainless steel 304 ,316,316L mesh, carbon steel mesh
Aperture: 11x11mesh, 12x12 mesh, 14x14mesh,etc. .
Wire diameter: 0.7mm,0.80mm, 0.90mm, etc.

Characteristics of stainless steel insect screen:
Stainless steel insect screen has nice properties, such as good stablity, rust-resistance, heat-resistance, acid-resistance and corrosion-resistance and so on.
With those unique features, stainless steel window screening could be applied under high temperature workshops and civil constructions.
Various of Colors:
The color of stainless steel window screening could be white, green, black,etc. which could be ordered according to cunstomers' requirements.

Material	Mesh per inch	Wire Dia (mm)	Wire Dia (inch)	Open Area
AISI 316 or 304	10 x 10	0.9mm	0.035"	41.7
AISI 316 or 304	10 x 10	1.2mm	0.028"	27.8
AISI 316 or 304	10 x 10	0.8mm	0.032"	46.9
AISI 316 or 304	10 x 10	1.15mm	0.045"	29.9
AISI 316 or 304	11 x 11	0.8mm	0.032"	42.5
AISI 316 or 304	11 x 11	0.7mm	0.027"	48.3
AISI 316 or 304	12 x 12	0.7mm	0.027"	44.8
AISI 316 or 304	12 x 12	0.58mm	0.023"	52.8
Special mesh can be made according to customers requirement

Features

• Durability: Resistant to wear, tear, and foot traffic, easy to clean. Lifespan: 10-15 years
• Corrosion resistance: 201 and 304 materials: Suitable for general indoor/outdoor environments; 316 material: Exceptional salt spray resistance, ideal for coastal humid areas and high-corrosion environments.
• Safety and Environmental Protection: Food-grade Stainless Steel Material
• Powerful insect and theft prevention
• High transparency and wear resistance: Excellent light transmittance and breathability, smooth surface, high hardness, and scratch resistance.
• Fireproof and flame-retardant: does not burn upon exposure to open flame and does not produce toxic smoke.

Application:

· Civil buildings such as residences, hotels, and office buildings.
· Livestock farms, food processing plants, warehouses, and other high-protection requirement facilities.
· Agricultural and horticultural facilities such as greenhouses, tunnels, and nurseries.
· Commercial premises like restaurant terraces, bar patios, and mall ventilation openings.
· Industrial environments with cleanliness requirements, such as laboratories, clean rooms, and electronic workshops.
· Locations with dual high demands for ventilation and safety, including hospital wards, school classrooms, and nursing homes.
· Special environments prone to corrosion or high humidity, such as chemical plants, coastal buildings, and swimming pool areas.

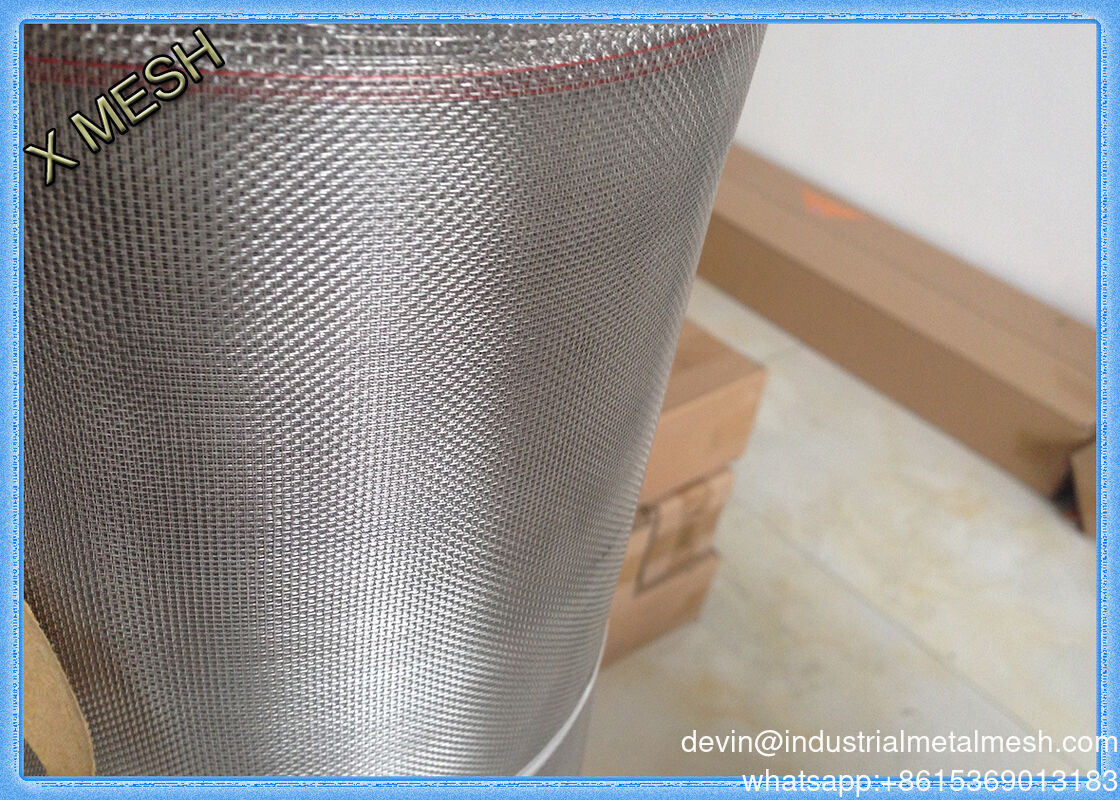

Non-Corrosive Security Window Screen Anti Mosquito Insect 2

SUS 304 Stainless Steel Insect Screen-S0001

Non-Corrosive Security Window Screen Anti Mosquito Insect 3

SUS 304 Stainless Steel Insect Screen-S0002

Application:

Stainless steel security screen can resist the thieves and intruders, so it is used in the residences, hotels and other place for security.
Due to the anti-mosquitoes and flies feature, it can be used in the windows, doors, porches and patios to prevent the harmful insects.
Stainless steel security screen can resist the corrosion, rust and fire, it can be used in the harsh environments where is corrosive, dusty. It can also be used in the fire fighting accesses.
Another importance feature of the stainless steel security screen is bullet-proof, so it can be used in industry base, and other safety places.

Non-Corrosive Security Window Screen Anti Mosquito Insect 4

SUS 304 Stainless Steel Insect Screen - S0003

Non-Corrosive Security Window Screen Anti Mosquito Insect 5

SUS 304 Stainless Steel Insect Screen - S0004
