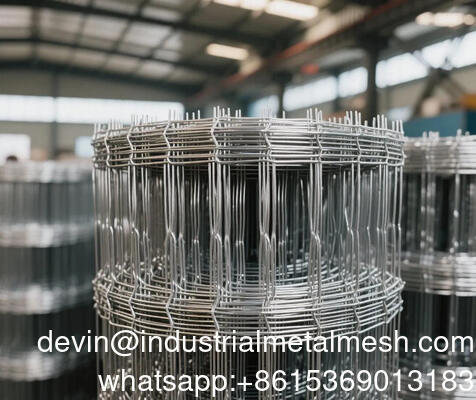

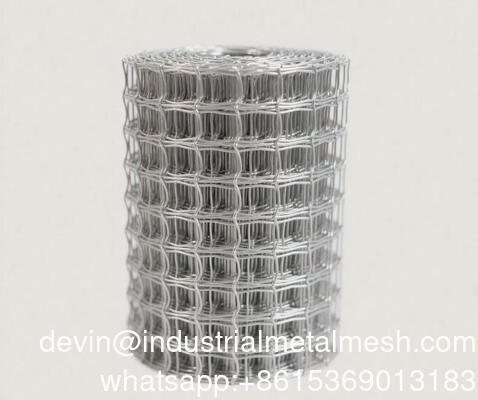

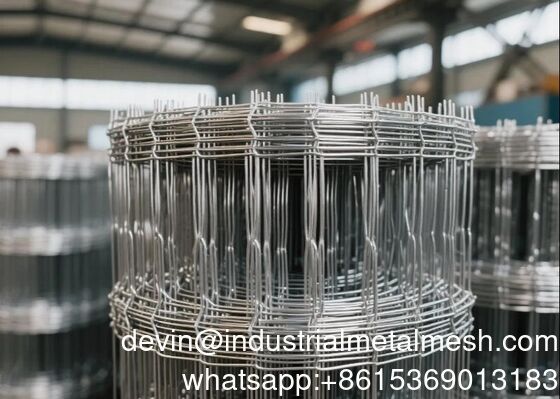

High Quality Welded Wire Mesh Fence PVC Coated Galvanized Welded Wire Mesh Panel

High Quality Welded Wire Mesh Fence PVC Coated Galvanized Welded Wire Mesh Panel

Welded wire mesh can be divided into 2 types according to different flexibility: welded mesh panel and welded mesh roll. Panel common size is 1800 mm × 3000 mm, we also accept other requirements. Welded mesh roll has better flexibility.
Welded wire mesh is made of low carbon steel wire, which has galvanized and PVC-coated surfaces, which have great anti-corrosion, anti-rust, and weather resistance. Firm structure and high tensile strength are also the features of welded wire mesh, which makes it widely used to make gabion, plaster walls, animal cages, and plant trellis.

Tolerances on Mesh Dimensions
Mesh Dimensions(mm)	Tolerance(mm)
< 50	±2.0
≥50 to < 200	±3.0

Mesh Size and Wire Diameter
Mesh Size		Wire Diameter Before & After PVC Coat
mm	inch	BWG No.	Before Coated (mm)	After Coated (mm)
6.4	1/4	24-22	0.56-0.71	0.90-1.05
9.5	3/8	23-19	0.64-1.07	1.00-1.52
12.7	1/2	22-16	0.71-1.65	1.10-2.20
15.9	5/8	21-16	0.81-1.65	1.22-2.30
19.1	3/4	21-16	0.81-1.65	1.24-2.40
25.4 × 12.7	1 × 1/2	21-16	0.81-1.65	1.24-2.42
25.4	1	21-14	0.81-2.11	1.28-2.90
38.1	1 1/2	19-14	1.07-2.11	1.57-2.92
25.4 × 50.8	1 × 2	17-14	1.47-2.11	2.00-2.95
50.8	2	16-12	1.65-2.77	2.20-3.61

Welded Wire Mesh Roll Size
Mesh Inch	Width × Length
1/2	3 ft. × 50 ft.
1/2	4 ft. × 50 ft
1/2	5 ft. × 50 ft.
1/2	6 ft. × 50 ft.
3/4	3 ft. × 50 ft
3/4	4 ft. × 50 ft.
3/4	5 ft. × 50 ft
3/4	6 ft. × 50 ft.
1	3 ft. × 50 ft.
1	4 ft. × 50 ft.
1	5 ft. × 50 ft.
1	6 ft. × 50 ft.

Welded wire Mesh Panels Common Specification
Mesh		Wire Diameter
Expressed in Inches	Millimeters	Diameter	Millimeters
1" × 1"	25 mm × 25 mm	11 G - 14 G	2 mm - 3 mm
2" × 1"	50 mm × 25 mm	8 G - 14 G	2 mm - 4 mm
2" × 2"	50 mm × 50 mm	8 G - 14 G	2 mm - 4 mm
3" × 2"	75 mm × 50 mm	6 G - 14 G	2 mm - 5 mm
3" × 3"	75 mm × 75 mm	6 G - 14 G	2 mm - 5 mm
4" × 2"	100 mm × 50 mm	4 G - 14 G	2 mm - 6 mm
4" × 4"	100 mm × 100 mm	4 G - 14 G	2 mm - 6 mm
5" × 5"	125 mm × 125 mm	4 G - 14 G	2 mm - 6 mm
6" × 6"	150 mm × 150 mm	4 G - 14 G	2 mm - 6 mm
Note: Special specifications can be customized.



Mesh		Width
inch	mm
2.0mm ~ 3.2mm	1"	25.40	0.914m ~ 1.83m
2.0mm ~ 4.5mm	2"	50.80	0.914m ~ 2.75m
2.0mm ~ 6.0mm	3"	70.20	0.914m ~ 2.75m
2.0mm ~ 6.0mm	4"	101.6	0.914m ~ 2.75m
2.0mm ~ 6.0mm	5"	127.0	0.914m ~ 2.75m
2.0mm ~ 6.0mm	6"	152.4	0.914m ~ 2.75m
2.0mm ~ 6.0mm	7"	177.8	0.914m ~ 2.75m
2.0mm ~ 6.0mm	8"	203.2	0.914m ~ 2.75m

This street light features high brightness, energy saving, environmental protection, and easy installation. It has a waterproof rating of IP67 and has passed CE certification. It is suitable for schools, parks, roadsides, factories, squares, etc. It has a warranty period of 3 years. Moreover, we can provide various styles to meet your needs.

Features of Welded Wire Mesh
Easily workable
Solid construction
Extremely versatile
Easy to install
Lightweight
Can have a low resistance to wind loads
Easily cut to fit

Applications of Welded Wire Mesh
Welded wire mesh's combination of low cost, ease of use, and versatility make it a popular choice for many different applications.
1. Fences and gates: You'll find welded wire mesh fences and gates installed at residences and all types of commercial and industrial
properties.
2. Architectural uses such as building facades: Although welded wire fabric is known for its strength and durability, architects and designers
often use it to enhance aesthetic appeal.
3. Architectural Wire Mesh for Green Building Design: Using welded wire mesh can help achieve LEED(Leadership in Energy and Environmental
Design) credits and certification.
4. Infill panels for railings and divider walls: Woven wire infill panels are used often as partitions or divider walls due to its clean and
sometimes modern look.
5. Animal control: Farmers, ranchers, and animal control professionals use fencing made from welded wire mesh to contain livestock and
stray animals.
6. Screens for doors and windows: Welded wire mesh screens provide a sturdy material and effective insect control when installed in windows.
7. Machine guards: Use welded wire cloth guards for industrial machinery.
8. Shelving and partitions: Welded wire mesh's strength and stability enable it to serve as shelving for storing heavy products and as partitions
that promote visibility.
9. Behind-the-scenes use in plumbing, walls, and ceilings: Wire mesh provides support for pipes installed in the walls and ceilings of a structure.
10. Gardens to keep bugs away from their plants and vegetables: Mesh with a low open area percentage serves as a screen that prevents
insects from destroying plants.
11. Agriculture: To serve as barrier fencing, corn cribs, livestock shade panels, and temporary holding pens.
