Cyclone Wire Mesh Diamond Chain Link Fence for Factory Farm or Playground
Product descriptions
Chain link fence is also known as diamond fence, chain link wire fencing , it is woven with high quality mild steel wire. It has the features of woven simple, beauty and practical. It's finish treatment is galvanized and plastic coated with long- time use and corrosion protection. They are widely used as protective fence in residential sites, roads and sports fields.
Materials: High quality mild steel wire, stainless steel wire, aluminum alloy wire, PVC wires, galvanized steel wire.
Features: Chain link fence has the features: smooth surface, durable, knit simple and elegant appearance. And the products are easy to transport and install. PVC chain link fences have different colors with decorative and antiseptic features in harmony with environment. They are popular protective fence at home and abroad.
Fence Type: Galvanized chain link fence, PVC coated chain link fence, stainless steel chain link fence.
drawing of chain link fence
| Mesh opening |
1'' |
1.5'' |
2'' |
2-1/4" |
2-3/8'' |
2-1/2" |
2-5/8" |
3'' |
4'' |
| |
25mm |
40mm |
50mm |
57mm |
60mm |
65mm |
70mm |
75mm |
100mm |
| Wire diameter |
18Ga - 13Ga |
16Ga - 8Ga |
14Ga-6Ga |
| |
1.2mm-2.4mm |
1.6mm - 4.2mm |
2.0mm-5.00mm |
| Width of per roll |
50M - 100M(or more) |
| Length of per roll |
0.5M - 6.0M |
| Round post & rail diameter |
32mm, 42mm,48mm,60mm,76mm,89mm |
| Round post & rail thickness |
0.8-5.0mm |
| Surface treatment |
Hot dipped galvanized or PVC coated |
| Materials and specification can be made according to customer detailed requirements |
1. Gauge of wire is 'finish size' inclusive of vinyl coating in this instance;
2. Meets ASTM F 668-04, Class 1, thickness of polymer coating between 0.015 - 0.025 inch(0.38 - 0.64mm);

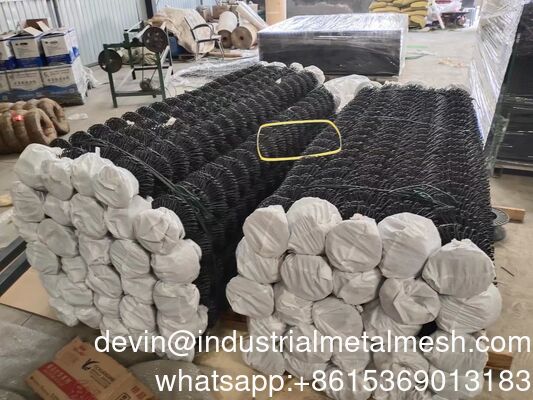

Loading of PVC coated Chain Link Fence
install of chain link fence
4' High x 250' Galvanized Chain Link Fence Packages Include:
- 250' - 4' High Galvanized Chain Link Fence Fabric
- 12 - 1-3/8" x 21' Galvanized Top Rails
- 20 - 1-5/8" x 6' Galvanized Line Posts
- 10 - 2-1/2" x 6'6" Galvanized Terminal Posts
- 20 - 1-5/8" x 1-3/8" Chain Link Loop Caps
- 10 - 2-1/2" Chain Link Post Caps
- 14 - 48" Galvanized Chain Link Tension Bars
- 42 - 2-1/2" Galvanized Tension Bands
- 14 - 2-1/2" Galvanized Brace Bands
- 14 - 1-3/8" Rail End Cups
- 56 - 5/16" x 1-1/4" Carriage Bolts/Hex Nuts
- 1 - 4' High x 5' Wide Galvanized Single Chain Link Swing Gate w/ Hinges and Latch
- 1 - 4' High x 12' Wide Galvanized Double Chain Link Swing Gate w/ Hinges and Drop Rod
- 2 - 1-5/8" Aluminum Pig Tail Tie Wire - Bag of 100
pvc coated chain link fence-001
galvanized chain link fence-001
galvanized chain link fence-002
galvanized chain link fence-003
galvanized chain link fence-004
galvanized chain link fence-005
