Factory OEM Cyclone Wire Mesh PVC Hot Dipped Galvanized Chain Link Fence

Large Image : Factory OEM Cyclone Wire Mesh PVC Hot Dipped Galvanized Chain Link Fence

Product Details:

Place of Origin:	Hebei, China
Brand Name:	XMESH
Certification:	SGS
Model Number:	QJ-102

Payment & Shipping Terms:

Minimum Order Quantity:	200pcs
Packaging Details:	loose packed or with pallets
Delivery Time:	15-25days
Payment Terms:	TT,LC,
Supply Ability:	1500 rolls one month

Contact Now

Detailed Product Description

Material:	PVC Coated Steel Wire	Wire Diameter:	2.5 Mm, 3.05 Mm, 3.76 Mm, 4.88 Mm
Mesh:	50x50 Mm, 60x60 Mm	Height:	1.5 M, 1.8 M, 2.4 M
Length:	15.2 M / 50 Feet	Zinc Mass:	60 G, 120 G
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	PVC chain link fence , galvanized chain link fence , OEM cyclone wire mesh fence

Factory OEM Cyclone Wire Mesh PVC Hot Dipped Galvanized Chain Link Fence

Product descriptions

Chain link fencing is a system based on single- or double-twist wire mesh. The mesh size varies from 30 x 30 mm to 70 x 70 mm, and is diamond-shaped. The wires of a chain link fence packaged in rolls have a thickness ranging from 2 mm to 4 mm in diameter. They are made with low-carbon steel. The galvanised wire is then coated with PVC or epoxy, a coating that is perfectly resistant to UV.

Inner Wire Material
1. Black wire: just black wire, without any surface finish.
2. Electro galvanzied, hot-dipped galvanzied
Two standard zinc coating for hot-dipped galvanzied:
1) normal zinc coating(50-60g/m2)
2) heavy zinc coating(260g/m2)
Tips: Hot-dipped galvanized has better corrosion resistance than electro galvanized, because the thickness of zinc coating is thicker.

drawing of chain link fence

drawing of chain link fence

Chain Link Fence Specifications
Wire Dia.	Material	Hole size	Roll Height	Roll Length	Edge woven
2.5mm 3mm 3.5mm 4mm 4.5mm	Electric galvanized wire Hot-dipped galvanized wire Galfan wire PE/PVC coated wire	40x40mm 50x50mm 60x60mm 75x75mm 100x100mm	1.2m 1.5m 1.8m 2.0m 2.4m 2.8m 3.0m	9m 10m 15m 18m 20m 25m 30m	Ordinary type Wring type Selvage knuckled

Galvanized Chain Link Fence Post specifications
Post view	Post size	Rails	Thickness	Mesh Height	Post length
Round post	Φ40 Φ48 Φ60 Φ75	Φ32 Φ40 Φ48	1.5mm 1.8mm 2.0mm 2.5mm	1.2m 1.5m 1.8m 2.0m 2.4m 2.8m 3.0m	1.6m 2.0m 2.3m 2.5m 3.0m 3.5m 3.7m
Angle iron	40x40mm 50x50mm 60x60mm 70x70mm	40x40mm 50x50mm	4mm 5mm 6mm	1.2m 1.5m 1.8m 2.0m 2.4m 2.8m 3.0m	1.6m 2.0m 2.3m 2.5m 3.0m 3.5m 3.7m
Surace treatment	1.Pre-galvanized tube 2.Galvanized tube powder coated 3.Hot-dipped galvanized

1. Gauge of wire is 'finish size' inclusive of vinyl coating in this instance;

2. Meets ASTM F 668-04, Class 1, thickness of polymer coating between 0.015 - 0.025 inch(0.38 - 0.64mm);

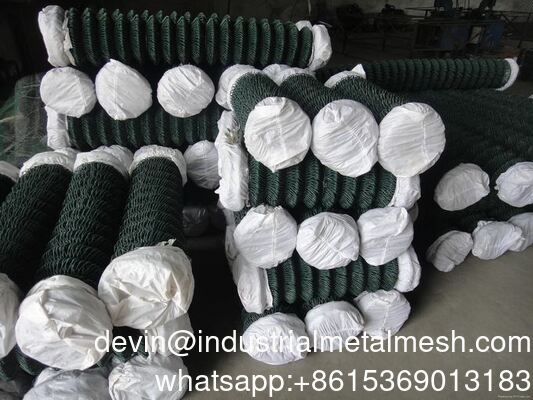

Loading of PVC coated Chain Link Fence

install of chain link fence

4' High x 250' Galvanized Chain Link Fence Packages Include:

250' - 4' High Galvanized Chain Link Fence Fabric
12 - 1-3/8" x 21' Galvanized Top Rails
20 - 1-5/8" x 6' Galvanized Line Posts
10 - 2-1/2" x 6'6" Galvanized Terminal Posts
20 - 1-5/8" x 1-3/8" Chain Link Loop Caps
10 - 2-1/2" Chain Link Post Caps
14 - 48" Galvanized Chain Link Tension Bars
42 - 2-1/2" Galvanized Tension Bands
14 - 2-1/2" Galvanized Brace Bands
14 - 1-3/8" Rail End Cups
56 - 5/16" x 1-1/4" Carriage Bolts/Hex Nuts
1 - 4' High x 5' Wide Galvanized Single Chain Link Swing Gate w/ Hinges and Latch
1 - 4' High x 12' Wide Galvanized Double Chain Link Swing Gate w/ Hinges and Drop Rod
2 - 1-5/8" Aluminum Pig Tail Tie Wire - Bag of 100

pvc coated chain link fence-001

galvanized chain link fence-001

galvanized chain link fence-002

galvanized chain link fence-003

galvanized chain link fence-004

galvanized chain link fence-005
