Easy Install Galvanized Steel Grating Bar Grating Walkway Platforms

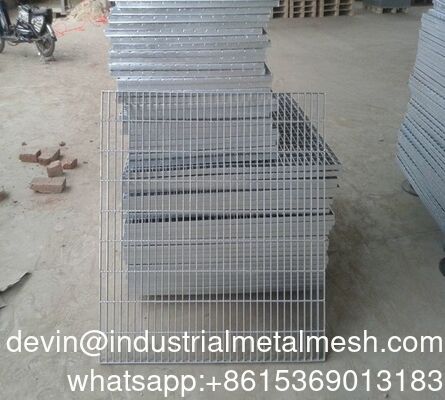

Large Image : Easy Install Galvanized Steel Grating Bar Grating Walkway Platforms

Product Details:

Place of Origin:	China
Brand Name:	Dimpled Hole Metal Sheets
Model Number:	Dimpled Hole Metal Sheets

Payment & Shipping Terms:

Minimum Order Quantity:	10pieces
Packaging Details:	pallets
Delivery Time:	15-18days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	1000pieces

Contact Now

Detailed Product Description

Chemical Composition:	Fe, C, Si, Mn, S, P	Alloy Or Not:	Non-Alloy
Project Solution Capability:	Graphic Design, 3D Model Design, Total Solution For Projects	Application:	Villa
Surface Treatment:	Hot-DIP Galvanizing, Painting Or Untreated	Grate Length:	1000mm
Grate Width:	800mm	Bearing Bar Width X Thickness:	25x3mm
Bearing Bar Shape:	Plain, Serrated I Bar Type Style Steel Grating	Cross Bar Shape:	Round,twisted,bar Shape
Mesh Size:	30x100mm	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	galvanized steel grating walkway , easy install steel grating platforms , galvanized bar grating platforms

Easy Install Galvanized Steel Grating Bar Grating Walkway Platforms

Galvanized Steel Grating

Galvanized Steel Grating, is extremely strong and durable for all load bearing applications and is primarily used for pedestrian and light vehicle traffic. Our galvanized coating process provides for years of corrosion resistance in acidic and high moisture environments.

Galvanized Steel Expanded Metal is a sheet product that has been slit and stretched to diamond shaped openings. Galvanized expanded metal offers savings in weight and allows free passage of light, liquid, sound and air while providing corrosion resistance in harsh environments.

Item	Description
Bearing bar	20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, or as customers' requirements.
Bearing bar pitch	25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, or as customers' requirements.
Cross bar	5x5, 6x6, 8x8mm (twisted bar or round bar) or as customers' requirements.
Cross bar pitch	40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers' requirements.
Surface treatment	Untreated, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as per customers' requirement.
Flat bar type	Plain, Serrated (tooth-like), I bar (I section)
Material standard	Low carbon steel (CN: Q235, US: A36, UK: 43A)

bearing bar types:
surface treatment: mill finish,hot dip galvanized,painted

Material	Carbon Steel, Stainless Steel, Aluminum
Surface treatment	Hot dipped galvanized, Spray painting, Polished and powder coated
Bearing bar type	Plain(Flat) bar, Serrated bar, I-bar, etc.
Common specification
Bearing bar pitch (mm)	Cross bar pitch (mm)	Bearing bar size (WSG_Height×Thickness_Bearing bar pitch_Cross bar pitch)
30	100	WSG_203/253/323/403/205/325/405/455/505/555_30_100
	50	WSG_203/253/323/403/205/325/405/455/505/555_30_50
40	100	WSG_203/253/323/403/205/325/405/455/505/555_40_100
	50	WSG_203/253/323/403/205/325/405/455/505/555_40_50
60	50	WSG_203/253/323/403/205/325/405/455/505/555_60_50
If you have any questions regarding the dimensions or specific specifications, please feel free to contact us immediately.

Advantages:
high strength, anti-slip, ventilation and light transmission properties.

Packaging Details

Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.

Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.

steel grating Easy Install Galvanized Steel Grating Bar Grating Walkway Platforms 1

Key Features

· Exceptional Strength-to-Weight Ratio:Engineered to support heavy loads while remaining relatively lightweight, reducing structural support requirements.
· Superior Safety:Serrated or plain surfaces provide excellent slip resistance, even in wet or oily conditions. The open design allows passage of light, air, and liquids, minimizing puddles and ice accumulation.
· Long-Lasting Durability:Manufactured from high-quality carbon steel or stainless steel, with optional hot-dip galvanizing, powder coating, or other finishes for outstanding corrosion resistance.
· Low Maintenance & Easy Installation:The modular design allows for quick cutting, fitting, and installation with standard tools. Its open structure prevents the accumulation of dirt, debris, and snow, minimizing cleaning needs.
· Versatile & Aesthetic:Available in various materials, surface types, and finishes to meet functional requirements and architectural aesthetics.
