Maintenance Platform Grating for Steel Mill High-Heat Zones

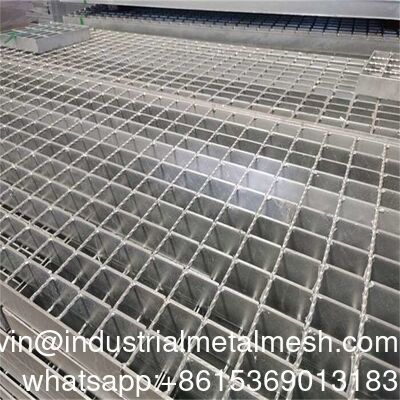

Large Image : Maintenance Platform Grating for Steel Mill High-Heat Zones

Product Details:

Place of Origin:	China
Brand Name:	Dimpled Hole Metal Sheets
Model Number:	Dimpled Hole Metal Sheets

Payment & Shipping Terms:

Minimum Order Quantity:	10pieces
Packaging Details:	pallets
Delivery Time:	15-18days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	1000pieces

Contact Now

Detailed Product Description

Chemical Composition:	Fe, C, Si, Mn, S, P	Alloy Or Not:	Non-Alloy
Project Solution Capability:	Graphic Design, 3D Model Design, Total Solution For Projects	Application:	Villa
Surface Treatment:	Hot-DIP Galvanizing, Painting Or Untreated	Grate Length:	1000mm
Grate Width:	800mm	Bearing Bar Width X Thickness:	25x3mm
Bearing Bar Shape:	Plain, Serrated I Bar Type Style Steel Grating	Cross Bar Shape:	Round,twisted,bar Shape
Mesh Size:	30x100mm	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	galvanized steel grating for high-heat zones , maintenance platform grating for steel mills , steel mill grating with high-heat resistance

Maintenance Platform Grating for Steel Mill High-Heat Zones

Galvanized Steel Grating

As a leading Steel Grating manufacturer, we specialize in high-quality Steel Bar Grating designed for extreme durability. Our Metal Floor Grating is produced via a professional forge-welding process, combining load-bearing flat bars with cross rods to create a robust open grid structure.

Whether you need Mild Steel Grating for general construction or Stainless Steel Bar Grating for corrosive environments, our products meet international standards including ASTM A36 and BS4592.

Steel grating is available in varied form suitable for different application and overall load conditions. Hot dip galvanizing or painting can make them in excellent appearance, durability and enhanced economy. Galvanized steel grating is widely used in Power Station, Chemical Industry, Oil & Gas Industry, Boiler Plant, Mining and Refinery, etc.

Introducing our groundbreaking Premium Steel Grating-a marvel of engineering precision. With its robust serrated bearing bar, this product is designed to excel in both performance and aesthetics. The intelligent structural design makes it the perfect choice where high load-bearing capability and visual appeal are paramount. Crafted meticulously from a specified size of serrated steel, it undergoes a series of precise processes involving slotting, inserting, welding, and finishing. The result is an outstanding product that effortlessly manages substantial loads, making it a reliable solution for heavy-duty industrial platforms with enhanced safety. Our surface treatments are versatile to suit your needs, offering galvanizing, painting, or dipping.

Specification

Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar(widthxthickness)
		20×3	25×3	32×3	40×3	20×5	25×5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar(widthxthickness)
		32×5	40×5	45×5	50×5	55×5	60×5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

Materials	Q195, Q235 ,Q235B / 304 316 Stainless Steel
Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
Bearing Bar	US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
Bearing Bar Pitch	12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
Bearing Bar Pitch	US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
Twisted Cross Bar Pitch	38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
Steel Grade	ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Grating Standard	China: YB/T 4001.1-2007
	USA: ANSI/NAAMM(MBG531-88)
	UK: BS4592-1987
	Australia: AS1657-1985
	Japan: JJS

Advantages:
high strength, anti-slip, ventilation and light transmission properties.

Packaging Details

Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.

Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.

steel grating Maintenance Platform Grating for Steel Mill High-Heat Zones 1

Key Features

· Exceptional Strength-to-Weight Ratio:Engineered to support heavy loads while remaining relatively lightweight, reducing structural support requirements.
· Superior Safety:Serrated or plain surfaces provide excellent slip resistance, even in wet or oily conditions. The open design allows passage of light, air, and liquids, minimizing puddles and ice accumulation.
· Long-Lasting Durability:Manufactured from high-quality carbon steel or stainless steel, with optional hot-dip galvanizing, powder coating, or other finishes for outstanding corrosion resistance.
· Low Maintenance & Easy Installation:The modular design allows for quick cutting, fitting, and installation with standard tools. Its open structure prevents the accumulation of dirt, debris, and snow, minimizing cleaning needs.
· Versatile & Aesthetic:Available in various materials, surface types, and finishes to meet functional requirements and architectural aesthetics.
