Durable Steel Sheet Grating with Variable Bearing Bar Pitch Options

Large Image : Durable Steel Sheet Grating with Variable Bearing Bar Pitch Options

Product Details:

Place of Origin:	China
Brand Name:	Dimpled Hole Metal Sheets
Model Number:	Dimpled Hole Metal Sheets

Payment & Shipping Terms:

Minimum Order Quantity:	10pieces
Packaging Details:	pallets
Delivery Time:	15-18days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	1000pieces

Contact Now

Detailed Product Description

Chemical Composition:	Fe, C, Si, Mn, S, P	Alloy Or Not:	Non-Alloy
Project Solution Capability:	Graphic Design, 3D Model Design, Total Solution For Projects	Application:	Villa
Surface Treatment:	Hot-DIP Galvanizing, Painting Or Untreated	Grate Length:	1000mm
Grate Width:	800mm	Bearing Bar Width X Thickness:	25x3mm
Bearing Bar Shape:	Plain, Serrated I Bar Type Style Steel Grating	Cross Bar Shape:	Round,twisted,bar Shape
Mesh Size:	30x100mm	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	Durable steel sheet grating with warranty , Galvanized steel grating variable pitch , Steel grating bearing bar options

Durable Steel Sheet Grating with Variable Bearing Bar Pitch Options

Steel grating, also known as steel grid or bar grating, is a versatile and robust flooring solution designed for industrial, commercial, and architectural applications. Made from high-quality carbon or stainless steel, our steel grating features a lightweight yet durable design that ensures excellent load-bearing capacity and long-lasting performance.

Key features include a slip-resistant surface, customizable sizes, and various spacing options to suit different needs. The open design allows for optimal drainage and air circulation, making it ideal for demanding environments such as factories, walkways, and drainage covers.

Whether you require heavy-duty steel grating for energy sectors or lightweight options for pedestrian areas, our products meet safety standards while facilitating easy installation and maintenance. Enhance your project with our top-quality steel grating to achieve maximum efficiency and safety.

Keywords: steel grating, steel grid, bar grating, industrial flooring, slip-resistant, customizable, drainage, load-bearing capacity.

Product Features

Durability: Constructed from high-quality carbon or stainless steel, ensuring long-lasting performance in demanding environments.

Load-Bearing Capacity: Engineered to support heavy loads, making it ideal for industrial applications such as factories and warehouses.

Slip-Resistant Surface: Features a textured surface that enhances safety by reducing the risk of slips and falls.

Customizable Sizes: Available in various sizes and spacing options to meet specific project requirements and applications.

Optimal Drainage: Open design allows for effective water drainage and air circulation, reducing the risk of pooling and enhancing hygiene.

Specification

STEEL GRATING
Product Name	Steel Grating
Keywords	Steel Grating
Type	Steel Sheet
Thickness	Customizable
Length	Customizable
Width	Customizable
Height	Customizable
Grade	Galvanized
Technique	Cold Rolled Based
Surface	Galvanized Coated
Shape	Flat Sheet
Material	Q235 Q345 Carbon Steel/316Stainless Steel
MOQ	LOW MOQ
Sample	Accept
OEM & ODM Custom	Accept
Logo Custom	Accept

Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar(widthxthickness)
		20×3	25×3	32×3	40×3	20×5	25×5
30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar(widthxthickness)
		32×5	40×5	45×5	50×5	55×5	60×5
30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50

Features of Steel Grating - What is Steel Grating?
Steel Grating is welded bearing steel bars and cross twisted bars accoring to required pitch space between steel bars by steel grating welding machines.it is a grid building material.
All gratings are made using high quality standard steel materials which exhibit good hardness and high tensile strength. It is extremely strong, durable and corrosion resistance and great anti-slip performance.
Based on where the grating will be used and its load bearing requirements, steel bars are available in a range of spacing pitch, thicknesses and heights.

Surface Treatment Finishing of Steel Grating:
Generally Steel Grating is made with hot-dipped galvanized. Also zinc coating can be made according to the client's requirement.
Steel Grating can be called hot-dip galvanized steel grating,stainless steel gratings.Beautiful surface appearance and excellent performance in industry construction projects.

Materials of Steel Grating:
1) Carbon Steel Smooth Flat Bars,Carbon Steel Serrated Bars,I-Type Steel Bars.
2) Steel Twisted Square Cross Bars,Steel Round Cross Bars.
3)Stainless Steel 304 Grade Flat Bars, Stainless Steel 304 Grade Round Bars.

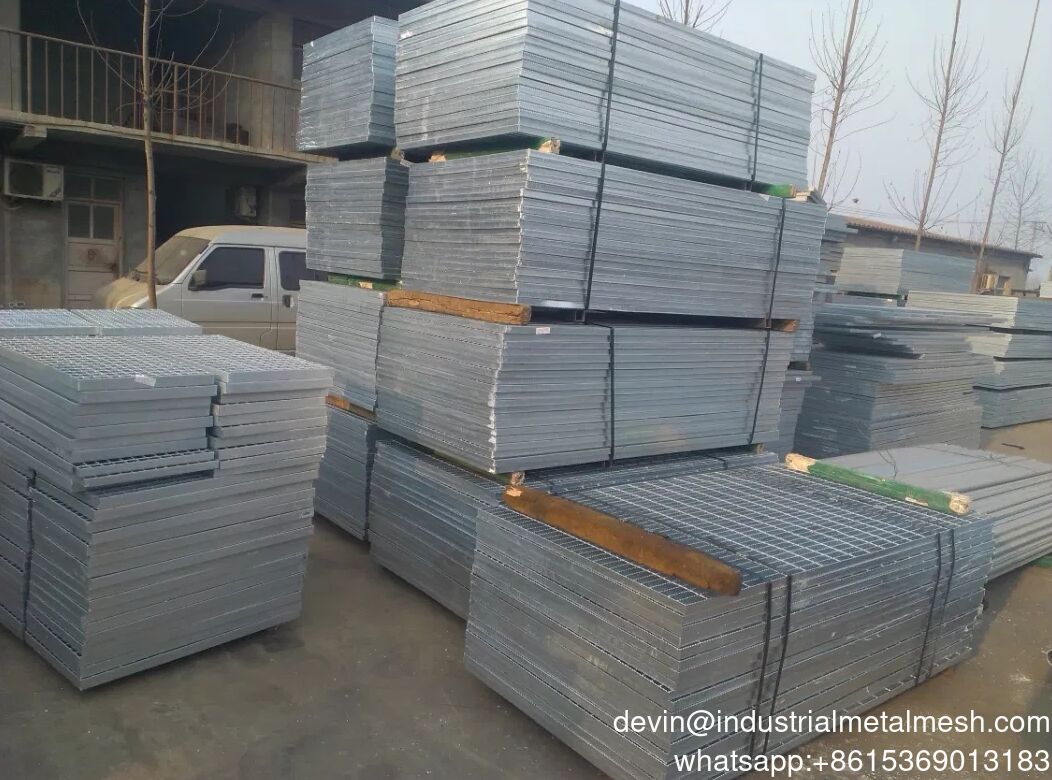

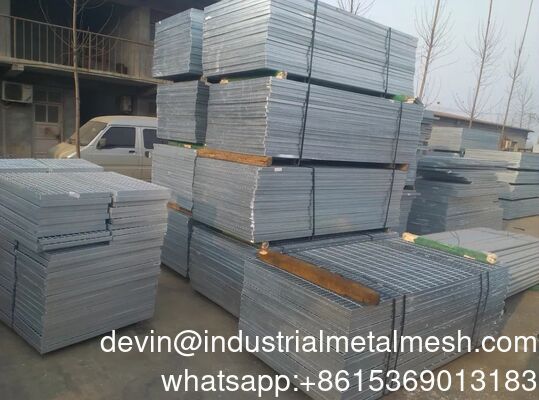

Packaging Details

Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.

Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.

steel grating Durable Steel Sheet Grating with Variable Bearing Bar Pitch Options 1

Key Features

· Exceptional Strength-to-Weight Ratio:Engineered to support heavy loads while remaining relatively lightweight, reducing structural support requirements.
· Superior Safety:Serrated or plain surfaces provide excellent slip resistance, even in wet or oily conditions. The open design allows passage of light, air, and liquids, minimizing puddles and ice accumulation.
· Long-Lasting Durability:Manufactured from high-quality carbon steel or stainless steel, with optional hot-dip galvanizing, powder coating, or other finishes for outstanding corrosion resistance.
· Low Maintenance & Easy Installation:The modular design allows for quick cutting, fitting, and installation with standard tools. Its open structure prevents the accumulation of dirt, debris, and snow, minimizing cleaning needs.
· Versatile & Aesthetic:Available in various materials, surface types, and finishes to meet functional requirements and architectural aesthetics.
