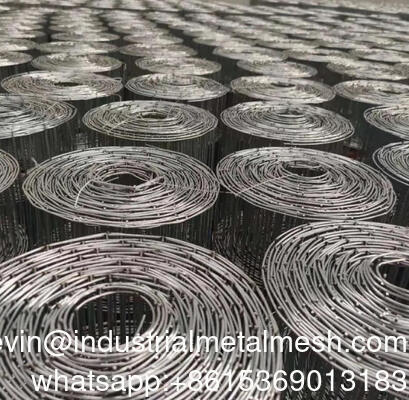

Hot Dipped Galvanized Fencing Netting 10 Gauge Steel Welded Wire Mesh

Large Image : Hot Dipped Galvanized Fencing Netting 10 Gauge Steel Welded Wire Mesh

Product Details:

Place of Origin:	CHINA
Brand Name:	QiJie
Certification:	ISO9001:2008, SGS, CE
Model Number:	01WWM

Payment & Shipping Terms:

Minimum Order Quantity:	50 rolls
Price:	USD9.90-USD45.90
Packaging Details:	Plastic film or water proof paper
Delivery Time:	10-25days
Payment Terms:	TT,LC,
Supply Ability:	1000 rolls/per day

Contact Now

Detailed Product Description

Material:	Carbon Steel Wire	Mesh Opening:	12 × 12, 20 × 20, 25 × 25, 12 × 25mm
Wire Diameter:	0.4mm - 1.5mm	Roll Width:	0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m
Roll Length:	15M,30M,50M Ect	Surface Treatment:	Hot Dipped Galvanized Or Electric Galvanized
Model Number:	Xx-01001	Application::	Fence Mesh
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	hot dipped galvanized welded wire mesh , 10 gauge steel fencing netting , galvanized steel welded mesh fencing

Hot Dipped Galvanized Fencing Netting 10 Gauge Steel Welded Wire Mesh

Product Description:

Welded wire mesh is also called steel wire mesh, butt welded wire mesh, construction mesh, square mesh, screen mesh

Welded wire mesh is widely used in agriculture, construction, transportation, mining and other industries. Such as machine protective netting, animal and livestock fences, flower and tree fences, window guards, passage fences, poultry cages, egg baskets and home office food baskets, paper baskets and decorations. Mainly used for general building exterior walls, pouring concrete, high-rise residential buildings, etc. It plays an important structural role in the thermal insulation system. During construction, the hot-dip galvanized welded grid mesh is placed on the inner side of the outer wall outer mold to be poured , The external insulation board and the wall are alive at one time, and the insulation board is integrated with the wall after the mold is removed. .

Packaging: Welded wire meshes are generally packaged with Plastic film + kraft paper outside

The wire of the welded wire mesh is straight or wavy (also called Dutch wire). According to the shape of the mesh surface, it can be divided into: welded mesh sheet and welded mesh roll

specification:

wire diameter: 22guage, 20guage, 0.7mm, 1mm, 1.2mm, 1.5mm, 2mm
length:30m,20m,2.4m,2m,or as per you request
width: 1m,48",24" 3',4',5',
Mesh Opening Size:1/2", 1/4", 1", 3/8", 1 1/2", 2", 3/4", 1"*2" etc
Roll Size: 3′*100′, 4′*100′. 3FT*100FT, 4FT*100FT, 4FT*50FT

Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.

Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant. Galvanized welded wire mesh is galvanized after welding.

Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.

Specification List of Welded Wire Mesh:
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1.Standard roll length: 30m;width:2-6feet 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Specification List of Welded Wire Mesh:
Opening		Wire Diameter<BWG>
In inch	In metric unit(mm)	Wire Diameter<BWG>
1/4" x 1/4"	6.4mm x 6.4mm	22,23,24
3/8" x 3/8"	10.6mm x 10.6mm	19,20,21,22
1/2" x 1/2"	12.7mm x 12.7mm	16,17,18,19,20,21,22,23
5/8" x 5/8"	16mm x 16mm	18,19,20,21,
3/4" x 3/4"	19.1mm x 19.1mm	16,17,18,19,20,21
1" x 1/2"	25.4mm x 12.7mm	16,17,18,19,20,21
1-1/2" x 1-1/2"	38mm x 38mm	14,15,16,17,18,19
1" x 2"	25.4mm x 50.8mm	14,15,16
2" x 2"	50.8mm x 50.8mm	12,13,14,15,16
Technical Note: 1.Standard roll length: 30m;width: 0.5m to 1.8m 2.Special sizes available at request 3.Packing: in waterproof paper in rolls. Custom packing available at request.

Welded Wire Plaster Wall Mesh

Applications:

Widely used in industry, agriculture, construction, transportation, mining, and other industries. Such as machine protective hoods, beasts and animal fences, window fences, channel fences, poultry cages, paper baskets, and decorations.

Welded Wire Plaster Wall Mesh

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
