Industrial Grade 304 316L 317L 904L Stainless Steel Wire Mesh Metal Wire Mesh

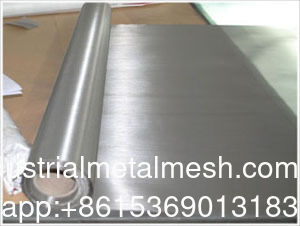

Large Image : Industrial Grade 304 316L 317L 904L Stainless Steel Wire Mesh Metal Wire Mesh

Product Details:

Place of Origin:	China
Brand Name:	QIJIE
Certification:	ISO9001
Model Number:	QJ-004

Payment & Shipping Terms:

Minimum Order Quantity:	50 rolls
Price:	discuss
Packaging Details:	as requirement
Delivery Time:	15 - 20 days
Payment Terms:	TT/LC
Supply Ability:	1000 rolls per week

Contact Now

Detailed Product Description

Technique:	Woven	Material:	Stainless Steel Wire,316,304
Weave Style:	Plain/Twill Weave	Product Name:	Square 4X4 Woven Flour 100 Micron Stainless Steel Wire Mesh
Wire Diameter:	Requirement	Width:	Usually 1M
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	Industrial grade stainless steel wire mesh , 304 316L stainless steel mesh , Stainless steel woven wire mesh

Industrial Grade 304 316L 317L 904L Stainless Steel Wire Mesh Metal Wire Mesh

Stainless steel wire mesh is a durable and precise material widely used for filtration, screening, sieving, drying and protection in industrial environments.
We provide woven stainless steel mesh, stainless steel mesh sieve, stainless steel filter mesh, and stainless steel wire mesh net in plain weave, twill weave, and dutch weave woven types.

Available materials include 304, 316, 316L, 430, 310S, 2205, 2507 and 904L, covering a full range of openings from coarse meshes to fine filtration grades, including 1 mm stainless steel wire mesh, various micron-rated stainless steel mesh (120–355 microns), and high mesh counts up to mesh 400 in plain weave.
For micron filtration, our dutch weave stainless steel mesh can achieve filtration accuracy down to 1 micron, and we keep regular stock for 1–100 micron dutch weave specifications.
Custom mesh counts and micron ratings are available upon request.

Product Name	Stainless Steel Wire Mesh
Material	304/316/316L Stainless steel wire
Key words	Stainless steel wire mesh/plain weave mesh/metal wire mesh
Weaving method	Plain weaving
Use scenarios	Filtration, sieving, protection, ventilation, isolation, decoration
Feature	High-temperature resistant and corrosion-resistant
Pore size	Customized according to your requirements
Size	The length and width are as per your requirements
Application field	Industry/Construction/Environmental protection/ChemicalEngineering/Food/Protection/Decoration
Processing services	Bending, uncoiling, cutting, weaving
Product Advantages	High and low temperature resistant, easy to clean, and structurally

Plain /Twill Square Woven Mesh
Mesh count	Wire Dia		Width of Opening		Open area
Mesh count	Inches	mm	Inches	mm	%
1X1	0.157	4	0.84	21.4	71
4X4	0.063	1.6	0.187	4.75	56
8X8	0.043	1.1	0.08	2.08	42
10X10	0.039	1	0.06	1.54	36
12X12	0.023	0.584	0.06	1.52	51.8
14X14	0.023	0.584	0.048	1.22	45.2
16X16	0.018	0.457	0.0445	1.13	50.7
18X18	0.017	0.432	0.0386	0.98	48.3
20X20	0.016	0.406	0.034	0.86	46.2
24X24	0.014	0.356	0.0277	0.7	44.2
30X30	0.012	0.305	0.0213	0.54	40.8
35X35	0.011	0.279	0.0176	0.45	37.9
40X40	0.01	0.254	0.015	0.38	36
50X50	0.008	0.203	0.012	0.31	36

304 / 316 / 316L Stainless Steel Mesh

2205 / 2507 Duplex Stainless Steel Mesh

304, 316, and 316L are the most commonly used grades for woven mesh.
They are suitable for a wide range of mesh counts—from coarse mesh #10–#80 used in general screening, to medium-fine mesh #100–#300 used in liquid filtration and particle separation.

316 and 316L offer improved corrosion resistance, making them preferred for food processing, chemical liquids, and outdoor environments.

316L is particularly suitable for fine mesh used in precision filters, thanks to its low carbon content and stable wire-drawing performance.

Duplex stainless steels combine high mechanical strength with excellent resistance to chloride corrosion.

They perform well in medium to fine mesh ranges (typically #40–#200) where higher pressure resistance is required, such as petrochemical filtration, seawater systems, and desalination equipment.

These grades maintain structural stability even when the mesh is under continuous flow or vibration.

Grade	Cr (%)	Ni (%)	Mo (%)	C (%)	Mn (%)	Si (%)	N / Cu (%)
304	18–20	8–10.5	—	≤0.07	≤2.0	≤1.0	—
316	16–18	10–14	2–3	≤0.08	≤2.0	≤1.0	—
316L	16–18	10–14	2–3	≤0.03	≤2.0	≤1.0	—
2205	22–23	4.5–6.5	3–3.5	≤0.03	≤2.0	≤1.0	N 0.14–0.20
2507	24–26	6–8	3–4	≤0.03	≤1.2	≤0.8	N 0.14–0.20
430	16–18	≤0.5	—	≤0.12	≤1.0	≤1.0	—
310S	24–26	19–22	—	≤0.08	≤2.0	≤1.5	—
904L	19–23	23–28	4–5	≤0.02	≤2.0	≤1.0	Cu 1–2

430 Stainless Steel Netting Mesh

310S Stainless Steel Mesh

904L Stainless Steel Micron Mesh

430 stainless steel is a ferritic, magnetic grade and cost-effective option.

It is typically used in coarse mesh specifications (#10–#50) for particle separation, general screening, protective guards and ventilation panels.

It is not recommended for corrosive environments but performs well in dry, indoor or mechanically protective applications.

310S is selected for high-temperature environments due to its excellent oxidation resistance.

It is commonly supplied in coarse to medium mesh (#10–#80) for drying trays, heating chambers, furnaces, and thermal insulation structures.

When higher temperature strength is required, thicker wire diameters and lower mesh counts are typically specified.

904L offers superior resistance to strong acids and aggressive chemicals.

It is suitable for fine filtration meshes (#100–#250) used in chemical processing, pharmaceutical equipment, and environments where standard stainless steels cannot maintain long-term corrosion stability.

Material: SUS302, 201, 304, 304L, 316, 316L, 310, 310S, etc.

Use:

1. Used for screening and filtration under acid and alkali environmental conditions. In the petroleum industry, it is used as a mud net, in the chemical and chemical fiber industry, as a screen filter, and in electroplating...
2 Used in mining, petroleum, chemical industry, food, medicine, machinery manufacturing and other industries...

Features:
1. Uniform mesh, good production reproducibility;
2. Good resistance to acid, alkali and corrosion;
3. High strength,tensile strength, toughness and wear resistance, long service life;
4. Uniform structure, non - crimp, easy to use, uniform thickness, antistatic;
5. High temperature oxidation resistance, 304 stainless steel screen nominal tolerance temperature of 800 degrees Celsius, 310S stainless steel screen name it can withstand temperatures up to 1150 degrees Celsius

316L stainless steel wire mesh application

For various filtration and separation requirements in the chemical industry, petroleum, Mining, shipbuilding, mining, food, .
Heat exchangers.
Decoration mesh.
Insect screen/mosquito screen.
Aerospace.
Waster water and ballast water filter.
Seawater treatment equipment.
Wire Mesh Basket Manufacturing.
Screen printing.

Other things you need to know about 316 stainless steel mesh

1. How to order?

When ordering the 316L stainless steel wire cloth, please specify the mesh count, wire diameter, hole size, weave type, mesh width, and length.

For example:
SS316L Screen Mesh 120 x 3′ x 100′ x 0.08mm Inquiry
SS316L Screen Mesh 100 x 3′ x 100′ x 0.1mm Inquiry.

More specifically such as:
Stainless steel mesh 316L, DTW 200/600, 40inch, 30meter , 1 roll
SUS 316L mesh, DTW 10 micron 200 x 1400 mesh, 0.07/ 0.04mm, size: 1m x 30m, 1 roll

2. Deep processing services

The wire mesh ss316 can be cut into different shapes of sheets, It can also be processed into filter tubes and filter caps.
For example, SS316L Screen Mesh 20 x 4 feet x 6 feet Long sheet, or SS316L Screen Mesh 60 x 59mm diameter Circular.
It can also be slit, for example, 200 mesh ss316 wire mesh can slit into 500mm width, and there will be 2 cutting rolls from 1m width 200 mesh 316 stainless steel mesh.

3. Detail application example

325 mesh 0.035mm wire diameter twill weave 316L stainless steel mesh used for stainless steel filter cartridge production.
300 mesh, 350 mesh, 400 mesh, 500 mesh Plain weave 316L stainless steel wire mesh used as screen printing mesh in Glass, ceramics, metals, plastics, rubber, and printed circuits industries.
24/110 mesh Dutch weave 316L stainless steel mesh used in the production of sunflower oil.
