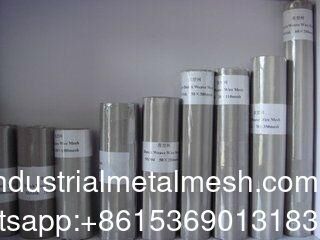

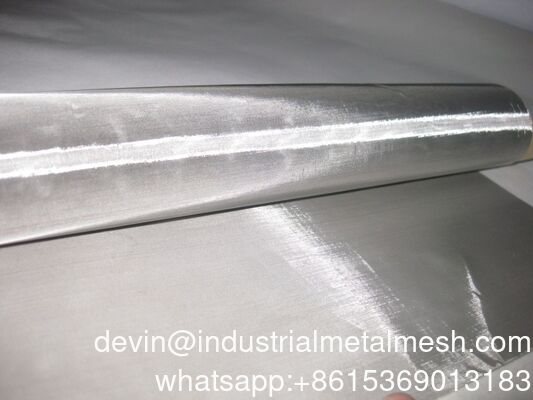

304 304L 316 316L Plain Weave Metal Filter Screen Square Stainless Steel Woven Wire Mesh for Industry filtration and Construction

304 304L 316 316L Plain Weave Metal Filter Screen Square Stainless Steel Woven Wire Mesh for Industry filtration and Construction

•

  Plain /Twill Square Woven Mesh
  Mesh count	Wire Dia		Width of Opening		Open area
  	Inches	mm	Inches	mm	%
  1X1	0.157	4	0.84	21.4	71
  4X4	0.063	1.6	0.187	4.75	56
  8X8	0.043	1.1	0.08	2.08	42
  10X10	0.039	1	0.06	1.54	36
  12X12	0.023	0.584	0.06	1.52	51.8
  14X14	0.023	0.584	0.048	1.22	45.2
  16X16	0.018	0.457	0.0445	1.13	50.7
  18X18	0.017	0.432	0.0386	0.98	48.3
  20X20	0.016	0.406	0.034	0.86	46.2
  24X24	0.014	0.356	0.0277	0.7	44.2
  30X30	0.012	0.305	0.0213	0.54	40.8
  35X35	0.011	0.279	0.0176	0.45	37.9
  40X40	0.01	0.254	0.015	0.38	36
  50X50	0.008	0.203	0.012	0.31	36



  304 / 316 / 316L Stainless Steel Mesh

  2205 / 2507 Duplex Stainless Steel Mesh

  304, 316, and 316L are the most commonly used grades for woven mesh.
  They are suitable for a wide range of mesh counts—from coarse mesh #10–#80 used in general screening, to medium-fine mesh #100–#300 used in liquid filtration and particle separation.


  316 and 316L offer improved corrosion resistance, making them preferred for food processing, chemical liquids, and outdoor environments.


  316L is particularly suitable for fine mesh used in precision filters, thanks to its low carbon content and stable wire-drawing performance.

  Duplex stainless steels combine high mechanical strength with excellent resistance to chloride corrosion.


  They perform well in medium to fine mesh ranges (typically #40–#200) where higher pressure resistance is required, such as petrochemical filtration, seawater systems, and desalination equipment.


  These grades maintain structural stability even when the mesh is under continuous flow or vibration.

  Grade	Cr (%)	Ni (%)	Mo (%)	C (%)	Mn (%)	Si (%)	N / Cu (%)
  304	18–20	8–10.5	—	≤0.07	≤2.0	≤1.0	—
  316	16–18	10–14	2–3	≤0.08	≤2.0	≤1.0	—
  316L	16–18	10–14	2–3	≤0.03	≤2.0	≤1.0	—
  2205	22–23	4.5–6.5	3–3.5	≤0.03	≤2.0	≤1.0	N 0.14–0.20
  2507	24–26	6–8	3–4	≤0.03	≤1.2	≤0.8	N 0.14–0.20
  430	16–18	≤0.5	—	≤0.12	≤1.0	≤1.0	—
  310S	24–26	19–22	—	≤0.08	≤2.0	≤1.5	—
  904L	19–23	23–28	4–5	≤0.02	≤2.0	≤1.0	Cu 1–2

  430 Stainless Steel Netting Mesh

  310S Stainless Steel Mesh

  904L Stainless Steel Micron Mesh

  430 stainless steel is a ferritic, magnetic grade and cost-effective option.


  It is typically used in coarse mesh specifications (#10–#50) for particle separation, general screening, protective guards and ventilation panels.


  It is not recommended for corrosive environments but performs well in dry, indoor or mechanically protective applications.

  310S is selected for high-temperature environments due to its excellent oxidation resistance.


  It is commonly supplied in coarse to medium mesh (#10–#80) for drying trays, heating chambers, furnaces, and thermal insulation structures.


  When higher temperature strength is required, thicker wire diameters and lower mesh counts are typically specified.

  904L offers superior resistance to strong acids and aggressive chemicals.


  It is suitable for fine filtration meshes (#100–#250) used in chemical processing, pharmaceutical equipment, and environments where standard stainless steels cannot maintain long-term corrosion stability.

  Material: SUS302, 201, 304, 304L, 316, 316L, 310, 310S, etc.

  Use:

  1. Used for screening and filtration under acid and alkali environmental conditions. In the petroleum industry, it is used as a mud net, in the chemical and chemical fiber industry, as a screen filter, and in electroplating...
  2 Used in mining, petroleum, chemical industry, food, medicine, machinery manufacturing and other industries...

  Features:
  1. Uniform mesh, good production reproducibility;
  2. Good resistance to acid, alkali and corrosion;
  3. High strength,tensile strength, toughness and wear resistance, long service life;
  4. Uniform structure, non - crimp, easy to use, uniform thickness, antistatic;
  5. High temperature oxidation resistance, 304 stainless steel screen nominal tolerance temperature of 800 degrees Celsius, 310S stainless steel screen name it can withstand temperatures up to 1150 degrees Celsius
