316L Woven Wire Mesh Screen for Chemical Filtration

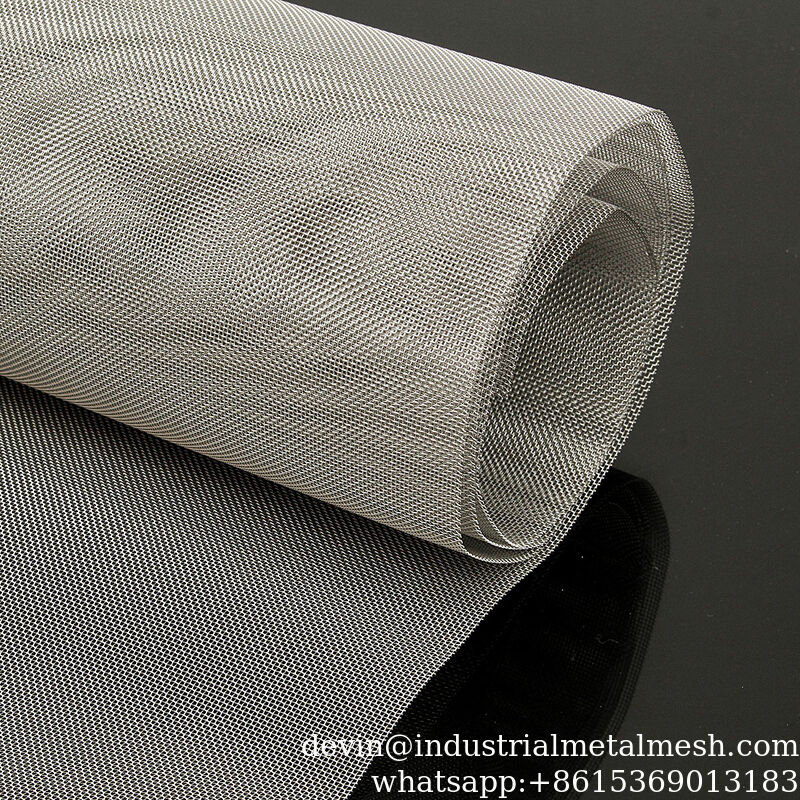

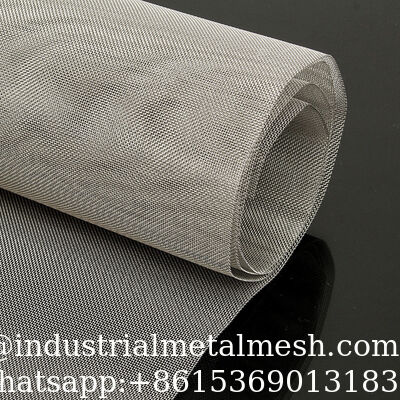

Large Image : 316L Woven Wire Mesh Screen for Chemical Filtration

Product Details:

Place of Origin:	China
Brand Name:	QIJIE
Certification:	ISO9001
Model Number:	QJ-004

Payment & Shipping Terms:

Minimum Order Quantity:	50 rolls
Price:	discuss
Packaging Details:	as requirement
Delivery Time:	15 - 20 days
Payment Terms:	TT/LC
Supply Ability:	1000 rolls per week

Contact Now

Detailed Product Description

Technique:	Woven	Material:	Stainless Steel Wire,316,304
Weave Style:	Plain/Twill Weave	Product Name:	Square 4X4 Woven Flour 100 Micron Stainless Steel Wire Mesh
Wire Diameter:	Requirement	Width:	Usually 1M
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	316L stainless steel wire mesh , woven wire mesh for filtration , chemical filtration wire mesh screen

316L Woven Wire Mesh Screen for Chemical Filtration

Stainless steel wire mesh is made by stainless steel wire and then woven together to form a square opening or oblong opening.It is made of 304, 304L, 316, 316L, 310, 310s and other metal wire processing.In recent years, stainless steel net is widely used in many different fields.

1. Most of our products are customized products, please contact us for the latest factory quotation.

2. Materials, specifications, packaging, pictures, logo can be customized.

3. Freight charges need to be calculated in detail according to your country and region, the quantity/volume of the goods and the mode of transportation. Please contact us for more details.

Plain Weave This classic plain weave is crafted by skillfully threading the shute wire over and under the warp wire in a successive manner, resulting in a perfect square opening mesh that balances simplicity with functional elegance.
Twill Weave The twill weave, a testament to advanced craftsmanship, is formed by intricately passing the shute wire over and under two strands of warp wire. This sophisticated technique creates denser, more resilient meshes, ideal for applications requiring additional strength.

Twill Dutch Weave A marvel of engineering, the twill Dutch weave stainless steel wire screen melds the intricate patterns of twill and Dutch weaves. By guiding the larger diameter warp over and under a finer shute wire, this technique produces a robust and compact mesh capable of enduring significant pressure.

Plain Dutch Weave The plain Dutch weave stainless steel mesh combines simplicity with strength. Emulating the plain weave pattern, it features a larger warp wire diameter compared to the shute, ensuring durability and versatility in various applications.

Features:

1. Uniform mesh, good production reproducibility;
2. Good resistance to acid, alkali and corrosion;
3. High strength,tensile strength, toughness and wear resistance, long service life;
4. Uniform structure, non - crimp, easy to use, uniform thickness, antistatic;
5. High temperature oxidation resistance, 304 stainless steel screen nominal tolerance temperature of 800 degrees Celsius, 310S stainless steel screen name it can withstand temperatures up to 1150 degrees Celsius

The Common Mesh Count

The Common Mesh Count of Plain Weave
Mesh (inch)	Wire diameter(inch)	Aperture (inch)	Mesh (inch)	Wire diameter(inch)	Aperture (inch)
2	0.063	0.437	60	0.007	0.010
5	0.041	0.159	80	0.006	0.007
10	0.025	0.075	100	0.004	0.007
14	0.020	0.051	120	0.037	0.006
18	0.017	0.039	150	0.003	0.004
20	0.016	0.034	180	0.002	0.003
24	0.014	0.028	200	0.002	0.003
30	0.009	0.024	300	0.005	0.002
40	0.010	0.015	Accpet Custom

The Common Mesh Count of Twill Weave
Mesh (inch)	Wire diameter(inch)	Aperture (inch)	Mesh (inch)	Wire diameter(inch)	Aperture (inch)
30	0.017	0.0163	400	0.0011	0.0014
60	0.011	0.0057	500	0.0010	0.001
80	0.007	0.0055	635	0.0008	0.0008
270	0.0016	0.0021
325	0.0014	0.0017	Accpet Custom

The Common Mesh Count of Plain Dutch Weave
Mesh (inch)	Wire diameter(inch)	Absolute Filtration Fineness (µm)
8 × 85	0.014 × 0.0126	318-340
12 × 64	0.024 × 0.0165	270-285
14 × 88	0.020 × 0.013	225-245
20 × 150	0.0098 × 0.007	155-165
24 × 100	0.015 × 0.010	115-125
30 × 150	0.009 × 0.007	95-100
40 × 200	0.007 × 0.0055	65-70
50 × 250	0.0055 × 0.0045	55-60
80 × 400	0.0049 × 0.0028	43-48
Accpet Custom

The Common Mesh Count of Twill Dutch Weave
Mesh (inch)	Wire diameter(inch)	Absolute Filtration Fineness (µm)
20 × 250	0.0098 × 0.079	110-120
30 × 360	0.0098 × 0.0060	90-100
120 × 400	0.0040 × 0.0025	50-55
80 × 700	0.0040 × 0.0030	35-40
165 × 800	0.0028 × 0.0020	24-26
200 × 600	0.0024 × 0.0018	28-32
250 × 1400	0.0022 × 0.0016	11-12
325 × 2300	0.0015 × 0.0010	8-9
Accpet Custom

316L stainless steel wire mesh application

For various filtration and separation requirements in the chemical industry, petroleum, Mining, shipbuilding, mining, food, .
Heat exchangers.
Decoration mesh.
Insect screen/mosquito screen.
Aerospace.
Waster water and ballast water filter.
Seawater treatment equipment.
Wire Mesh Basket Manufacturing.
Screen printing.

Other things you need to know about 316 stainless steel mesh

1. How to order?

When ordering the 316L stainless steel wire cloth, please specify the mesh count, wire diameter, hole size, weave type, mesh width, and length.

For example:
SS316L Screen Mesh 120 x 3′ x 100′ x 0.08mm Inquiry
SS316L Screen Mesh 100 x 3′ x 100′ x 0.1mm Inquiry.

More specifically such as:
Stainless steel mesh 316L, DTW 200/600, 40inch, 30meter , 1 roll
SUS 316L mesh, DTW 10 micron 200 x 1400 mesh, 0.07/ 0.04mm, size: 1m x 30m, 1 roll

2. Deep processing services

The wire mesh ss316 can be cut into different shapes of sheets, It can also be processed into filter tubes and filter caps.
For example, SS316L Screen Mesh 20 x 4 feet x 6 feet Long sheet, or SS316L Screen Mesh 60 x 59mm diameter Circular.
It can also be slit, for example, 200 mesh ss316 wire mesh can slit into 500mm width, and there will be 2 cutting rolls from 1m width 200 mesh 316 stainless steel mesh.

3. Detail application example

325 mesh 0.035mm wire diameter twill weave 316L stainless steel mesh used for stainless steel filter cartridge production.
300 mesh, 350 mesh, 400 mesh, 500 mesh Plain weave 316L stainless steel wire mesh used as screen printing mesh in Glass, ceramics, metals, plastics, rubber, and printed circuits industries.
24/110 mesh Dutch weave 316L stainless steel mesh used in the production of sunflower oil.
