Heavy Duty Grip Strut Perforated Metal Plank Grating for Transportation Servicing Areas

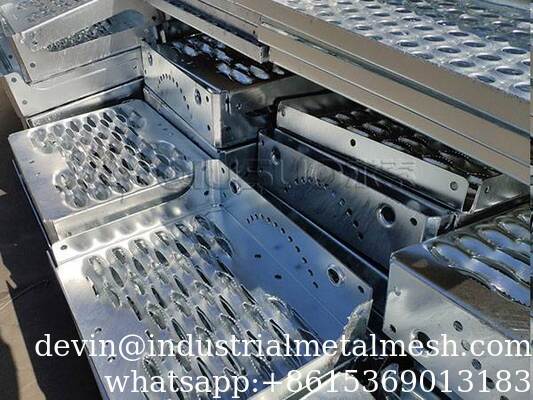

Large Image : Heavy Duty Grip Strut Perforated Metal Plank Grating for Transportation Servicing Areas

Product Details:

Place of Origin:	hebei,China
Brand Name:	QIJIE
Certification:	iso
Model Number:	grip strut grating

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Packaging Details:	Pallets
Delivery Time:	15-18days
Payment Terms:	30%TT in advance,Balance before loading
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Material:	Aluminum,Galvanized Steel Wire	Products Name:	Grip Strut Grating
Type:	Perforated Mesh,Etching Or Stamping	Technique:	Perforated
Weave Style:	Perforated,Punched,Punching	Hole Shape:	Round,diamond,etc,plum Blossom,octagonal
Surface Treatment:	Spray Coating/Spray Painting/Fluorocarbon Coating,Hot Dipped Galvanized,galvanized And Fluoroca	Color:	All The Color Chip Have,White,blue,Silver,golden
Product Name:	Hexagonal Perforated Metal Sheet,expandable Sdiamond Mesh	Thickness:	0.5-8mm,0.3MM- 8MM
Feature:	Corrosion Resistance,Good-looking And Good Quality,Durable,Acid Resistance,anti-resistance	Width:	1m Or 1.22m,1.22 M Or Below
Usage:	Etc.,decorative,oil/air Filter,food	Length:	2m Or 2.44m
Size:	Customized Size,standard	Shape:	Square,Can Be Cut Into Round Or Square Shape,Round Shape,oval,Hexagon
Pitch:	1.0mm-100MM,or As Request.	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	heavy duty grip strut grating , perforated metal plank grating , transportation servicing area grating

Stainless Steel Metal Mesh Diamond Hole Grip Strut Plank Safety Grating for Walkway

Product Description

Grip strut safety grating is used to create non-slip walkways and stair treads. The planks have a high strength-to-weight performance, which ensures a high load capacity and long life.
The product is made from a lightweight metal grating specifically designed for safety underfoot. The unique one-piece diamond shaped construction provides slip-resistance in all directions.

Grip strut is ideally suited for all walking/working surfaces where mud, ice, snow, grease, oil and detergents create slippery or hazardous conditions.

The serrated surface is designed in an open diamond pattern. This allows drainage of fluids, mud, chips and other accident-causing debris.

Walkway Channels: Walkway channels are designed to provide a safe walking surface in industrial settings. It is typically used in areas with a risk of slips and falls, such as platforms, mezzanines, and catwalks.

Stair Tread: Stair treads provide a slip-resistant surface on stairways. They are available in a variety of sizes and styles to suit different applications, including standard and heavy-duty treads.

Ladder Rung: Ladder rungs are used to provide a safe and slip-resistant surface on industrial ladders. AGICO supplies a variety of sizes and styles to suit different metal ladders, it can be classified into standard and heavy-duty rungs.

Floor Resurfacing Sheets: Grip strut safety grating can be used as a floor resurfacing material to provide slip resistance and traction in areas that are prone to slips and falls, such as loading docks, ramps, and walkways.

What are the features of Grip Strut Safety Grating from Tec-Sieve?
1. Varied material types
2. Greatly increased safety with a special non-slip serrated edge surface
3. Maintenance-free open diamond design with the self-cleaning feature
4. Heavy load-carrying capacity with minimal deflection
5. Easy to install with low erection cost
6. Versatile in applications

It is worthwhile for you to note that nonstandard specifications are available upon request!
Additionally, a variety of metal sheet thicknesses are available from Tec-Sieve in response to the corresponding load-bearing requirements, and they include 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm and so on.

anti skid grating plate sheet Specifications:

Standard Lengths - 10' & 12'
Type 316 Stainless Steel available upon special quote
Stainless only available in plank form and up to 113/4" wide
Relief hole available upon request on 3, 4, & 5-diamond planks
Special fabrication, cutting or specialty configurations available upon request

Product Name	Perforated Grip Strut Grating
Material	Mild Steel, Pre-Galvanised Steel, Aluminium, Stainless Steel, Corten Steel etc.
Specifications	Stainless Steel, Hot Rolled Steel, Cold Rolled Steel, Aluminum plate
Thickness	0.5mm-4mm (additional thickness are available on request)
Hole Size	2mm-50mm (other hole sizes are also available)
Width	Customized
Length	Customized
Application	Ideal for elevated applications such as suspended walkways or conveyor catwalks, these channels provide safe, economical, slip resistant options for long span walkways.
Note	Perforations must be the same or larger in size than the material thickness.

Item No.	Item Description	Standard Width	Standard Channel Depth	Standard Length
1	2-Diamond Plank	4.75'' (120.65mm)	1.5'', 2'' and 2.5'' (38.1mm, 50.8mm and 63.5mm)	10' and 12' (3048mm and 3657.6mm)
2	3-Diamond Plank	7'' (120.65mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
3	4-Diamond Plank	9.5'' (241.3mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
4	5-Diamond Plank	11.75'' (298.45mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
5	8-Diamond Plank	18.75'' (476.25mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
6	10-Diamond Plank	24'' (609.6mm)	2'' and 3'' (50.8mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
7	10-Diamond Walkway	24'' (609.6mm)	4.5'' (114.3mm)	10' and 12' (3048mm and 3657.6mm)

grip strut grating

Item No.	Item Description	Standard Width	Standard Channel Depth	Standard Length
1	2-Diamond Plank	4.75'' (120.65mm)	1.5'', 2'' and 2.5'' (38.1mm, 50.8mm and 63.5mm)	10' and 12' (3048mm and 3657.6mm)
2	3-Diamond Plank	7'' (120.65mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
3	4-Diamond Plank	9.5'' (241.3mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
4	5-Diamond Plank	11.75'' (298.45mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
5	8-Diamond Plank	18.75'' (476.25mm)	1.5'', 2'', 2.5'' and 3'' (38.1mm, 50.8mm, 63.5mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
6	10-Diamond Plank	24'' (609.6mm)	2'' and 3'' (50.8mm and 76.2mm)	10' and 12' (3048mm and 3657.6mm)
7	10-Diamond Walkway	24'' (609.6mm)	4.5'' (114.3mm)	10' and 12' (3048mm and 3657.6mm)

CAUTION:
Custom lengths, widths and channel depths are available upon request!

Diamond plank grating has a wide range of widths - from 4 3/4" (2-Diamond) to 24" (10-Diamond) for different applications. For example, standard walkway grating is usually 10-Diamond, and stair treads is available from 2-Diamond to 5-Diamond. Custom widths are welcome.

grip strut grating

Features

Features: Anti-skid, anti-rust and anti-corrosion, uniform hole size, durable, without burs and broken holes, and lightweight design providing high strength-to-weight ratio and virtually maintenance free.
Surface pattern: Raised diamond pattern configuration in metal struts offering slip resistance in all directions of the steel grating.

Applications

Industrial walkways and platforms
Rooftop walkways and mezzanine flooring
Stair treads and ladders
Rack decking and work platforms
Signboard walkways

grip strut grating

Advantages

1.Easy to maintain ,installation .2.Liquid slurry, ice ,snow in fast filtration channels .
3.High bearing capacity --High strength to weight ratio
4.Longer life than similar products
5.Light weight--easy to install and manufacturer
