Hot Dipped Durable Conventional Welded Wire Mesh Panel 50*50mm

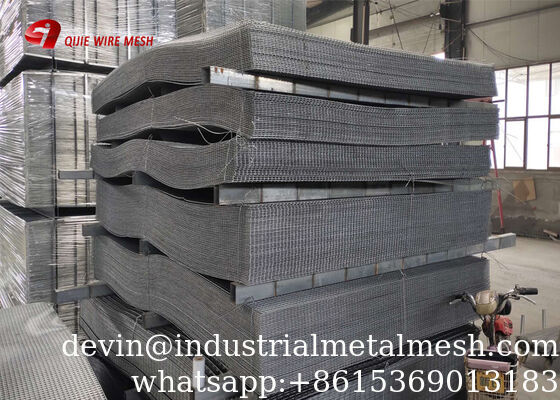

Large Image : Hot Dipped Durable Conventional Welded Wire Mesh Panel 50*50mm

Product Details:

Place of Origin:	CHINA
Brand Name:	QiJie
Certification:	ISO9001:2008, SGS, CE
Model Number:	01WWM

Payment & Shipping Terms:

Minimum Order Quantity:	50 rolls
Price:	USD9.90-USD45.90
Packaging Details:	Plastic film or water proof paper
Delivery Time:	10-25days
Payment Terms:	TT,LC
Supply Ability:	1000 rolls/per day

Contact Now

Detailed Product Description

Material:	Carbon Steel Wire	Mesh Opening:	12 × 12, 20 × 20, 25 × 25, 12 × 25mm
Wire Diameter:	0.4mm - 1.5mm	Roll Width:	0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m
Roll Length:	15M,30M,50M Ect	Surface Treatment:	Hot Dipped Galvanized Or Electric Galvanized
Model Number:	Xx-01001	Application::	Fence Mesh
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	Hot Dipped Welded Wire Mesh Panel , Durable Welded Wire Mesh 50x50mm , Conventional Welded Wire Mesh with Warranty

Hot Dipped Durable Conventional Welded Wire Mesh Panel 50*50mm

Product Description:

WELDED WIRE MESH PANEL

Welded Wire Mesh Panel is made of superior quality welded wire mesh, with flat even surface, firm structure, be used extensively in building, food, agriculture and so on. Welded Wire Mesh Panel mainly serves as fencing mesh.

Assortments available:
Welded Stainless Steel Wire Mesh Panels
Galvanized Welded Mesh Panels
Hot-dip Zinc Plating Welded Mesh Panels

Property: Welded wire mesh panels enjoy such properties as corrosion resistance, aging resistance, sunshine resistance and weather resistance.

Welded Wire Mesh Panel
Welded wire mesh panel also called welded wire fabric is a steel reinforcement material in concrete. The mesh is used for replacing the traditional "cut & bend" and placing of steel thermo-mechanical treated bars. The mesh is an electric fusion welded prefabricated reinforcement consisting of a series of parallel longitudinal wires with accurate spacing welded to cross wires at the required spacing. Machines are used to produce the mesh with precise dimensional control. The product results in considerable savings in time, labour and money.
Welded wire mesh panels types
black wire welded wire mesh panel
Hot dipped galvanised before welded wire mesh panel
Hot dipped galvanised after welded wire mesh panel
Electro galvanised before welded wire mesh panel
Electro galvanised after welded wire mesh panel
PVC coated welded wire mesh panel (galvanized inner wire /black inner wire)
Powder coated welded wire mesh panel
High zinc coating welded wire mesh panel
Galfan welded wire mesh panel

2. Surface Treatment & Anti-corrosion Grade

Treatment Type	Coating Thickness	Advantages	Application Scenarios
Electro-galvanizing	≥20g/m²	Low cost, easy processing	Indoor & short-term use
Hot-dip galvanizing	≥60g/m²	Strong rust resistance	Outdoor long-term use (service life ≥10 years)
PVC/PE Plastic Dipping	Customized thickness	Corrosion-resistant, insulated, aesthetically pleasing	Garden fencing, breeding cages
Stainless Steel	No additional treatment	Permanent corrosion resistance	Humid & corrosive environments

3. Common Specifications

Wire Diameter: 0.5-5.0 mm (Light-duty: 0.5-1.2 mm; Heavy-duty: 1.5-5.0 mm)
Mesh Opening (Square):
- Construction insulation: 12.7×12.7 mm, 25×25 mm
- Fencing & protection: 25×25 mm, 50×50 mm
- Heavy-duty & gabion: 80×100 mm, 100×120 mm
Product Form: Roll mesh (width: 1m/1.2m/1.5m); Mesh panel (standard: 1×2m, customizable up to 3×6m)

Wire Diameter	Mesh		Width
Wire Diameter	inch	mm	Width
2.0mm ~ 3.2mm	1"	25.40	0.914m ~ 1.83m
2.0mm ~ 4.5mm	2"	50.80	0.914m ~ 2.75m
2.0mm ~ 6.0mm	3"	70.20	0.914m ~ 2.75m
2.0mm ~ 6.0mm	4"	101.6	0.914m ~ 2.75m
2.0mm ~ 6.0mm	5"	127.0	0.914m ~ 2.75m
2.0mm ~ 6.0mm	6"	152.4	0.914m ~ 2.75m
2.0mm ~ 6.0mm	7"	177.8	0.914m ~ 2.75m
2.0mm ~ 6.0mm	8"	203.2	0.914m ~ 2.75m

4. Core Advantages

Stable structure, no loose joints

Easy to cut, bend and splice, adaptable to complex terrain

High cost performance, low maintenance cost

Multiple anti-corrosion options, suitable for various environments

5. Typical Applications

Construction Engineering: External wall insulation, plastering crack prevention, concrete reinforcement, floor heating mesh, foundation pit support
Agricultural Breeding: Chicken/rabbit/sheep cages, breeding fences, gardening supports, orchard protection
Industry & Transportation: Equipment protection covers, workshop partitions, shelf laminates, highway anti-throw nets
Daily Protection: Window guards, pet cages, decorative nets, filtration & screening

Welded Wire Plaster Wall Mesh

1,High Strength & Durability
Strong welded joints provide reliable reinforcement and extend the service life of concrete structures.
2,Improved Construction Efficiency
Prefabricated mesh panels reduce on-site labor, speed up installation, and ensure consistent quality.
3,Crack Resistance
Enhances tensile strength of concrete and effectively prevents cracking under load.
4,Cost-Effective
Minimizes material waste, lowers labor costs, and shortens project time.
5,Wide Applications
Suitable for residential, commercial, and infrastructure projects such as highways, bridges, tunnels, airports, and industrial buildings.
6,Customization Available
Mesh size, wire diameter, and panel dimensions can be tailored to meet specific project requirements.
7,Corrosion Resistance
Galvanized or coated options ensure long-term protection in harsh environments.

Applications:

Widely used in industry, agriculture, construction, transportation, mining, and other industries. Such as machine protective hoods, beasts and animal fences, window fences, channel fences, poultry cages, paper baskets, and decorations.

Welded Wire Plaster Wall Mesh

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
