Cutable High Strength Customizable Welded Wire Mesh Panel for Building Fence

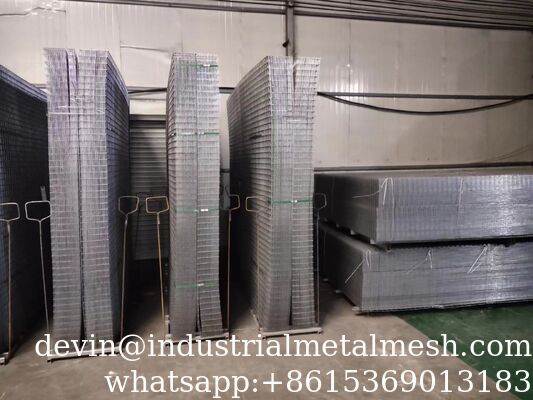

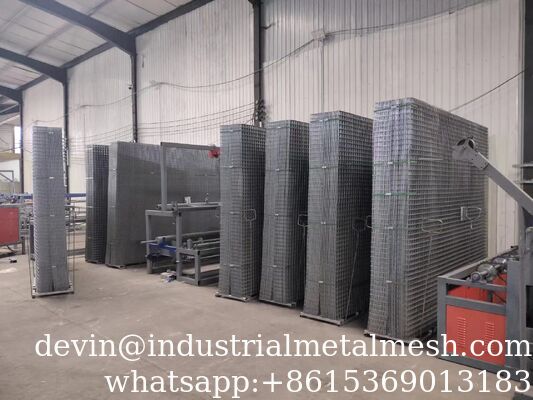

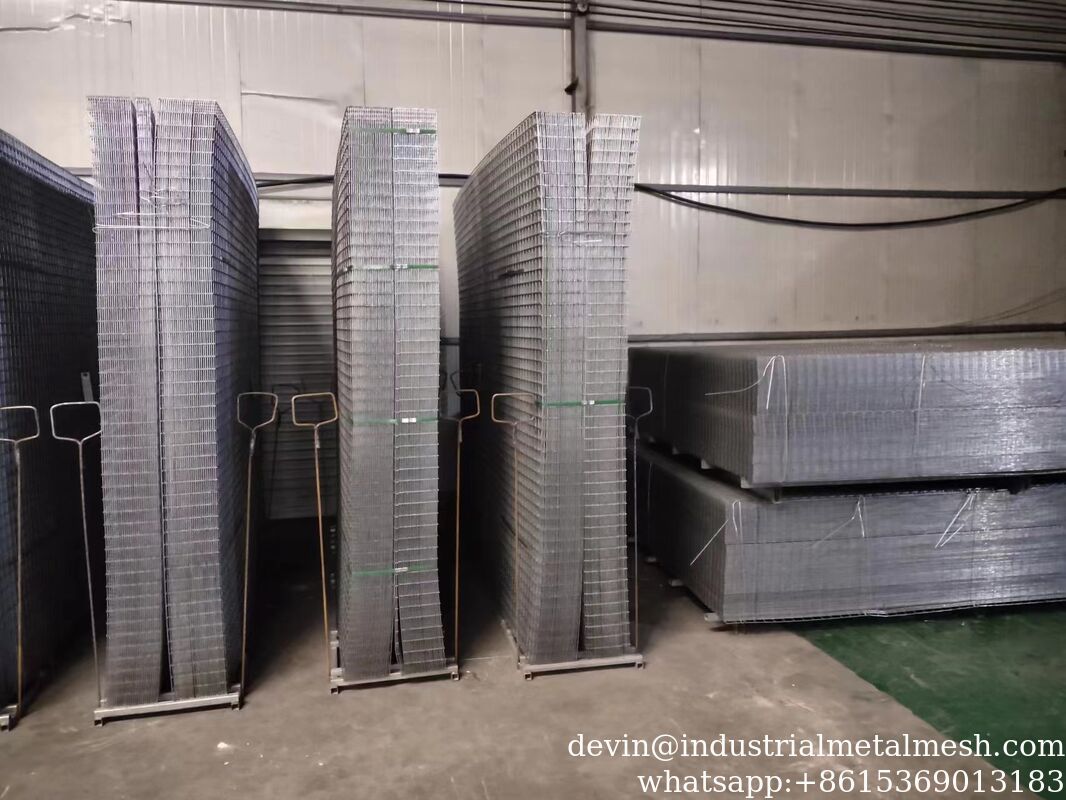

Large Image : Cutable High Strength Customizable Welded Wire Mesh Panel for Building Fence

Product Details:

Place of Origin:	CHINA
Brand Name:	QiJie
Certification:	ISO9001:2008, SGS, CE
Model Number:	01WWM

Payment & Shipping Terms:

Minimum Order Quantity:	50 rolls
Price:	USD9.90-USD45.90
Packaging Details:	Plastic film or water proof paper
Delivery Time:	10-25days
Payment Terms:	TT,LC
Supply Ability:	1000 rolls/per day

Contact Now

Detailed Product Description

Material:	Carbon Steel Wire	Mesh Opening:	12 × 12, 20 × 20, 25 × 25, 12 × 25mm
Wire Diameter:	0.4mm - 1.5mm	Roll Width:	0.4m,0.5m,0.6m,0.8m, 1.0m, 1.25m, 1.5m, 2.0m
Roll Length:	15M,30M,50M Ect	Surface Treatment:	Hot Dipped Galvanized Or Electric Galvanized
Model Number:	Xx-01001	Application::	Fence Mesh
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	cutable welded wire mesh panel , high strength fence wire mesh , customizable welded mesh fence panel

Cutable High Strength Customizable Welded Wire Mesh Panel for Building Fence

Product Description:

Our high-quality Welded Wire Mesh Panel is manufactured from premium low carbon steel wire that has been precisely straightened, cut, and welded using advanced electric welding equipment.

This galvanized welded wire mesh is engineered to deliver superior strength, durability, and corrosion resistance for a wide range of construction and fencing applications. Designed for both structural integrity and visual appeal, this welded wire fabric features firm spot-welded joints, a flat mesh surface, consistent openings, and excellent rigidity — making it one of the most reliable and versatile welded mesh panels on the market today.

With multiple surface treatment options, customizable wire diameters, and flexible panel dimensions, this product offers an ideal balance of strength, practicality, and easy installation for contractors, builders, and wholesalers alike.

Welded wire mesh panels types
black wire welded wire mesh panel
Hot dipped galvanised before welded wire mesh panel
Hot dipped galvanised after welded wire mesh panel
Electro galvanised before welded wire mesh panel
Electro galvanised after welded wire mesh panel
PVC coated welded wire mesh panel (galvanized inner wire /black inner wire)
Powder coated welded wire mesh panel
High zinc coating welded wire mesh panel
Galfan welded wire mesh panel

2. Surface Treatment & Anti-corrosion Grade

Treatment Type	Coating Thickness	Advantages	Application Scenarios
Electro-galvanizing	≥20g/m²	Low cost, easy processing	Indoor & short-term use
Hot-dip galvanizing	≥60g/m²	Strong rust resistance	Outdoor long-term use (service life ≥10 years)
PVC/PE Plastic Dipping	Customized thickness	Corrosion-resistant, insulated, aesthetically pleasing	Garden fencing, breeding cages
Stainless Steel	No additional treatment	Permanent corrosion resistance	Humid & corrosive environments

3. Common Specifications

Wire Diameter: 0.5-5.0 mm (Light-duty: 0.5-1.2 mm; Heavy-duty: 1.5-5.0 mm)
Mesh Opening (Square):
- Construction insulation: 12.7×12.7 mm, 25×25 mm
- Fencing & protection: 25×25 mm, 50×50 mm
- Heavy-duty & gabion: 80×100 mm, 100×120 mm
Product Form: Roll mesh (width: 1m/1.2m/1.5m); Mesh panel (standard: 1×2m, customizable up to 3×6m)

Specification Of Welded Wire Mesh Panel
Opening		Wire diameter
Inch	mm	BWG	mm
1" × 1"	25mmx25mm	14# - 11#	2.0mm - 3mm
2" × 1"	50mmx25mm	14# - 8#	2.0mm - 4mm
2" × 2"	50mmx50mm	14# - 8#	2.0mm - 4mm
3" × 2"	75mmx50mm	14# - 6#	2.0mm - 5mm
3" × 3"	75mmx75mm	14# - 6#	2.0mm - 5mm
4" × 2"	100mmx50mm	14# - 4#	2.0mm - 6mm
4" × 4"	100mmx100mm	14# - 4#	2.0mm - 6mm
5" × 5"	125mmx125mm	14# - 4#	2.0mm - 6mm
6" × 6"	150mmx150mm	14# - 4#	2.0mm - 6mm
Material: Low carbon steel wire
Surface treatment: Electro Galvanized, Hot dipped galvanized, PVC coated, Powder coated
Note: Special size and specifications can be made according to customers requires.

4. Core Advantages

Stable structure, no loose joints

Easy to cut, bend and splice, adaptable to complex terrain

High cost performance, low maintenance cost

Multiple anti-corrosion options, suitable for various environments

5. Typical Applications

Construction Engineering: External wall insulation, plastering crack prevention, concrete reinforcement, floor heating mesh, foundation pit support
Agricultural Breeding: Chicken/rabbit/sheep cages, breeding fences, gardening supports, orchard protection
Industry & Transportation: Equipment protection covers, workshop partitions, shelf laminates, highway anti-throw nets
Daily Protection: Window guards, pet cages, decorative nets, filtration & screening

Welded Wire Plaster Wall Mesh

1,High Strength & Durability
Strong welded joints provide reliable reinforcement and extend the service life of concrete structures.
2,Improved Construction Efficiency
Prefabricated mesh panels reduce on-site labor, speed up installation, and ensure consistent quality.
3,Crack Resistance
Enhances tensile strength of concrete and effectively prevents cracking under load.
4,Cost-Effective
Minimizes material waste, lowers labor costs, and shortens project time.
5,Wide Applications
Suitable for residential, commercial, and infrastructure projects such as highways, bridges, tunnels, airports, and industrial buildings.
6,Customization Available
Mesh size, wire diameter, and panel dimensions can be tailored to meet specific project requirements.
7,Corrosion Resistance
Galvanized or coated options ensure long-term protection in harsh environments.

Applications:

Widely used in industry, agriculture, construction, transportation, mining, and other industries. Such as machine protective hoods, beasts and animal fences, window fences, channel fences, poultry cages, paper baskets, and decorations.

Welded Wire Plaster Wall Mesh

Qijie Wire Mesh MFG Co.,ltd is a professional manufacturer of fences, wire mesh products with more than 20 years experience. Welcome to visit our factory located in Anping city at any time!
