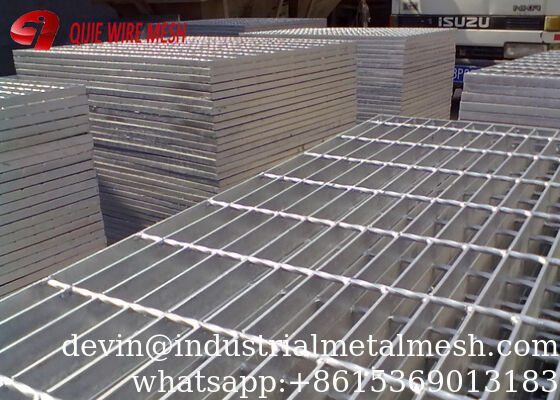

19-W-4 Light Duty Welded Steel Grating - Smooth Surface

Large Image : 19-W-4 Light Duty Welded Steel Grating - Smooth Surface

Product Details:

Place of Origin:	China
Brand Name:	Dimpled Hole Metal Sheets
Model Number:	Dimpled Hole Metal Sheets

Payment & Shipping Terms:

Minimum Order Quantity:	10pieces
Packaging Details:	pallets
Delivery Time:	15-18days
Payment Terms:	30%TT in advance, Balance before loading
Supply Ability:	1000pieces

Contact Now

Detailed Product Description

Chemical Composition:	Fe, C, Si, Mn, S, P	Alloy Or Not:	Non-Alloy
Project Solution Capability:	Graphic Design, 3D Model Design, Total Solution For Projects	Application:	Villa
Surface Treatment:	Hot-DIP Galvanizing, Painting Or Untreated	Grate Length:	1000mm
Grate Width:	800mm	Bearing Bar Width X Thickness:	25x3mm
Bearing Bar Shape:	Plain, Serrated I Bar Type Style Steel Grating	Cross Bar Shape:	Round,twisted,bar Shape
Mesh Size:	30x100mm	Email:	Devin@industrialmetalmesh.com
Whatsapp:	+8615369013183
Highlight:	19-W-4 welded steel grating , light duty steel grating , smooth surface steel grating

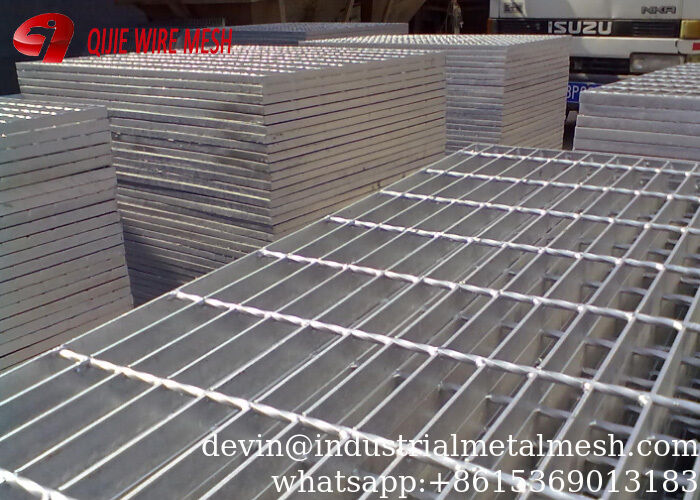

19-W-4 Light Duty Welded Steel Grating - Smooth Surface

Heavy Duty Bar Grating

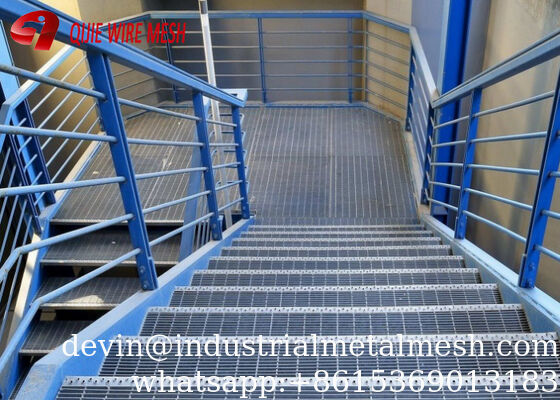

19W4 Light Duty Welded Steel Bar Grating is one of the most commonly stocked grating and is used for pedestrian traffic only. Panels are manufactured to 2’ and 3’ widths, while providing standard lengths up to 24’ long. 19W4 Light Duty Grating is available in bearing bar sizes ranging from 3/4" to 2 1/2" depths and thicknesses of 3/16” and 1/8”. 19W4 is spaced 1-3/16” c.c. for the bearing bars and 4” c.c. for the cross rods. Typical applications include: catwalks, platforms, pedestrian trenches, pedestrian sump pits, stair treads, etc. Available finishes include mill, painted black, or hot dipped galvanized.

Spacing

The inherent strength of bar grating is partially dependent on the spacing between each bar. Our narrowest spacing, 7W4, is ADA approved. Spacing options are based on your configuration for 3/4" deep Carbon Steel Smooth Light-Duty Bar Grating.

19W4

19W2

15W4

15W2

Depth

The inherent strength of bar grating is partially dependent on the depth or height of each bar. A deeper product will generally provide more strength. Depth options are based on your configuration for 15W4 Carbon Steel Smooth Light-Duty Bar Grating.

3/4"

1-1/4"

1-1/2"

1-3/4"

2-1/4"

2-1/2"

3-1/2"

Material

Carbon steel is our most economical choice, while stainless is our most durable. Material options are based on your configuration for 15W4 3/4" deep Smooth Light-Duty Bar Grating.

Carbon Steel

Surface

Our standard surface option is smooth. Where slip-resistance is important, serrated and SlipNOT surfaces provide additional traction. Surface options are based on your configuration for 15W4 3/4" Carbon Steel Light-Duty Bar Grating.

Smooth

19-W-4 Light Duty Welded Steel Grating - Smooth Surface

15-W-4 Carbon Steel Light-Duty Bar Grating 75-15 Smooth (3/4" Depth)

15-W-4 welded, light-duty carbon steel bar grating is available in widths up to 3’ and lengths up to 24’. Available in bar thicknesses of 3/4" x 3/16". It is available in mill, painted black, and hot dipped galvanized . The light-duty carbon steel grating is manufactured by a resistance-weld process. Cross bars are fused to bearing bars to form a permanent joint. Bearing bars are spaced at 15/16” on center and cross bars are 4” on center. Available in smooth, serrated, and non-slip surfaces.

19-W-4 Light Duty Welded Steel Grating - Smooth Surface

Features of Steel Grating - What is Steel Grating?
Steel Grating is welded bearing steel bars and cross twisted bars accoring to required pitch space between steel bars by steel grating welding machines.it is a grid building material.
All gratings are made using high quality standard steel materials which exhibit good hardness and high tensile strength. It is extremely strong, durable and corrosion resistance and great anti-slip performance.
Based on where the grating will be used and its load bearing requirements, steel bars are available in a range of spacing pitch, thicknesses and heights.

Surface Treatment Finishing of Steel Grating:
Generally Steel Grating is made with hot-dipped galvanized. Also zinc coating can be made according to the client's requirement.
Steel Grating can be called hot-dip galvanized steel grating,stainless steel gratings.Beautiful surface appearance and excellent performance in industry construction projects.

Materials of Steel Grating:
1) Carbon Steel Smooth Flat Bars,Carbon Steel Serrated Bars,I-Type Steel Bars.
2) Steel Twisted Square Cross Bars,Steel Round Cross Bars.
3)Stainless Steel 304 Grade Flat Bars, Stainless Steel 304 Grade Round Bars.

Packaging Details

Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
Package Type: 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing.

Steel grating is widely used in the following fields:
1. Petrochemical, power and metallurgy, sewage treatment and other industrial fields.
2. Drainage systems, stairs and railings, commercial decoration and other municipal and architectural fields.
3. Bridges and tunnels, ports and ships and other transportation and marine engineering.
4. Garbage treatment plants, agricultural facilities and other environmental protection and agricultural fields.

steel grating 19-W-4 Light Duty Welded Steel Grating - Smooth Surface

Key Features

· Exceptional Strength-to-Weight Ratio:Engineered to support heavy loads while remaining relatively lightweight, reducing structural support requirements.
· Superior Safety:Serrated or plain surfaces provide excellent slip resistance, even in wet or oily conditions. The open design allows passage of light, air, and liquids, minimizing puddles and ice accumulation.
· Long-Lasting Durability:Manufactured from high-quality carbon steel or stainless steel, with optional hot-dip galvanizing, powder coating, or other finishes for outstanding corrosion resistance.
· Low Maintenance & Easy Installation:The modular design allows for quick cutting, fitting, and installation with standard tools. Its open structure prevents the accumulation of dirt, debris, and snow, minimizing cleaning needs.
· Versatile & Aesthetic:Available in various materials, surface types, and finishes to meet functional requirements and architectural aesthetics.
