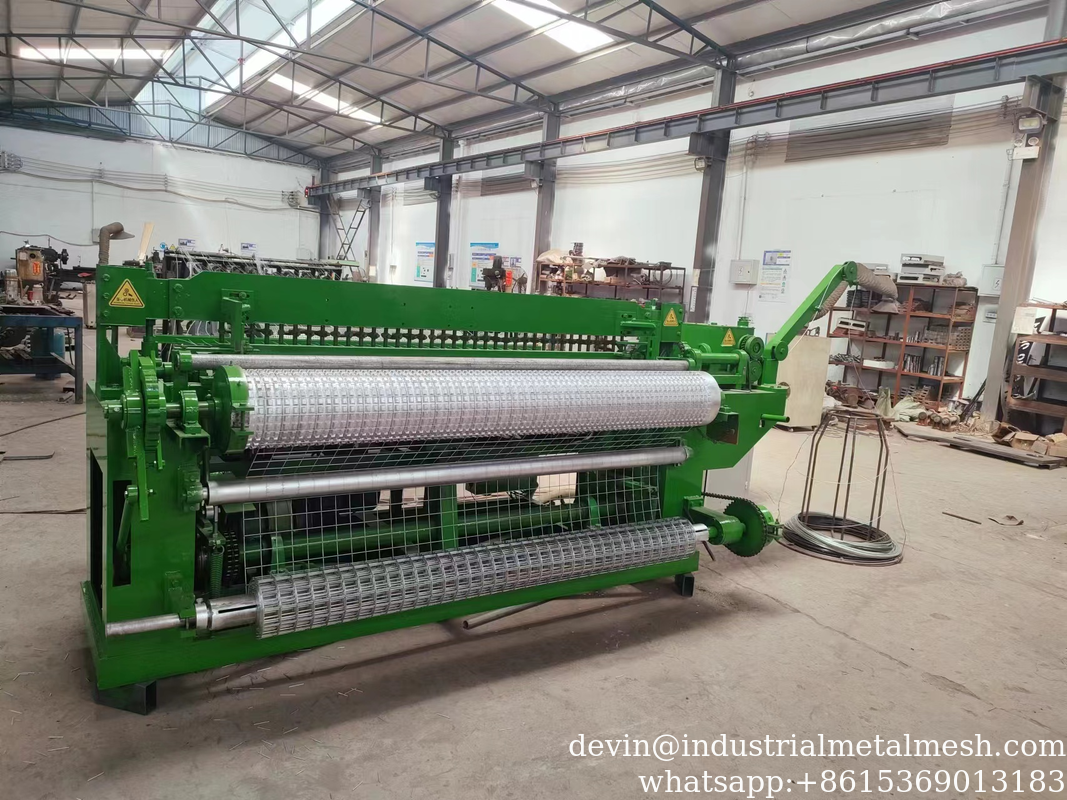

Fully Automatic Welded Wire Mesh Manufacturing Machine 0.6-1.8mm Wire Diameter

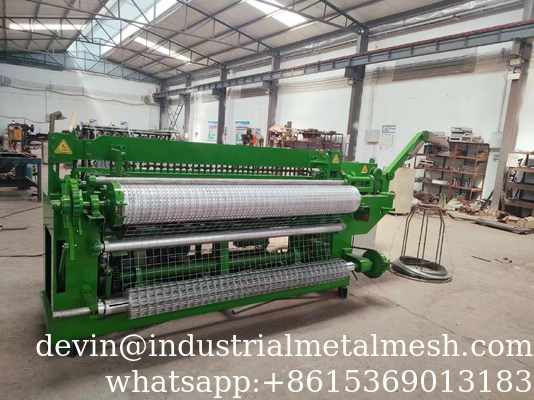

Large Image : Fully Automatic Welded Wire Mesh Manufacturing Machine 0.6-1.8mm Wire Diameter

Product Details:

Place of Origin:	Heibei, China
Brand Name:	Qijie
Certification:	ISO CE SGS
Model Number:	QJ-0432

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	USD 12000 -- 25000
Packaging Details:	plastic film
Delivery Time:	20-25 days
Payment Terms:	TT,LC,
Supply Ability:	1000/pcs

Contact Now

Detailed Product Description

Hole Shape:	Square, Rectangle	Width:	1-3m
Hole Size:	2.5cm-150cm	Material:	Black Or Galvanized Wire
Operation:	Fully Automatic	Control System:	PLC Touch Screen
Voltage:	220V/380V/415V/440V	Welding Head Material:	High Chromium Copper
Email:	Devin@industrialmetalmesh.com	Whatsapp:	+8615369013183
Highlight:	fully automatic wire mesh machine , welded wire mesh manufacturing machine , wire mesh machine 0.6-1.8mm diameter

Fully Automatic Welded Wire Mesh Manufacturing Machine 0.6-1.8mm Wire Diameter

1	型号 Model	HT-2000
2	网宽 Welding max width	2000mm
3	网目 Mesh	31.25*15mm
4	焊点数 Welding electrodes	65个
5	丝径范围 Welding Wire diameter	0.6-1.8mm
6	焊接速度 Welding speed	70-120times/min
7	卷网长度 No roll length	80m(adjustable)
8	用人工数 Using manual labor	1
9	电压/频率 Rated voltage	380V/50HZ 3P
10	变压器功率及数量 Welding transformers	65KVA*5台
11	主电机功率Motor	5.5KW
12	机器占地 Machine size	3700Ⅹ1900*1500mm
13	机器重量 Weight	3.8t

Welding machine	1)	Machine host 1台
	2)	Electric cabinet 1台
	3)	Weaving frame 1个
	5)	Network repair machine 1台
	6)	Supplement network station 1台
