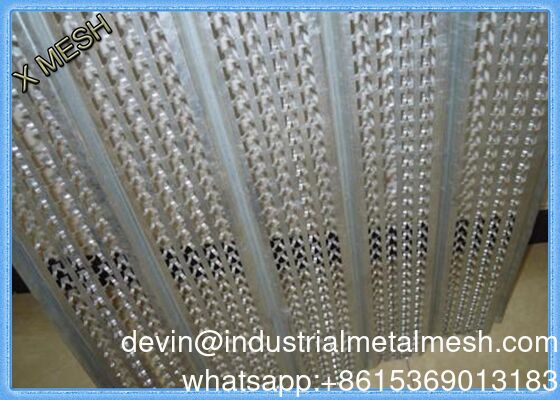

1/8'' 0.35mm Galvanized High Rib Expanded Metal Lath 610X2440 For Construction

Certification
China Hebei Qijie Wire Mesh MFG Co., Ltd certification
China Hebei Qijie Wire Mesh MFG Co., Ltd certification
Customer Reviews
Yes we have received the reinforcing mesh and we are pretty happy with the quality. Many thanks! Chris

—— Chris Johnson

I have been ordering powder coated T 316 fly screen mesh from Qijie; unlike others, they never cut orders and always supply quality material to me.

—— Michael Jr. Venida

I had very bad purchasing experience with the previous supplier, for they always postpone shipment time. To my excitement, Qijie is always punctual.

—— Susan Miller

Your product good

—— Jatuporn Tae-Ngug

I'm Online Chat Now

1/8'' 0.35mm Galvanized High Rib Expanded Metal Lath 610X2440 For Construction

1/8'' 0.35mm Galvanized High Rib Expanded Metal Lath 610X2440 For Construction
1/8'' 0.35mm Galvanized High Rib Expanded Metal Lath 610X2440 For Construction 1/8'' 0.35mm Galvanized High Rib Expanded Metal Lath 610X2440 For Construction 1/8'' 0.35mm Galvanized High Rib Expanded Metal Lath 610X2440 For Construction

Large Image :  1/8'' 0.35mm Galvanized High Rib Expanded Metal Lath 610X2440 For Construction

Product Details:
Place of Origin: Hebei, China
Brand Name: XMESH
Certification: SGS
Model Number: 1/8" 0.35mm
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Packaging Details: Pallets
Delivery Time: 15-25days
Payment Terms: 30%TT in advance, Balance before loading
Supply Ability: 1000pieces per week
Detailed Product Description
Material: Galvanized Steel Sheets Size: 610x2440mm
Rib Height: 1/8" Thickness: 0.35mm
Application: Protecting Mesh,Screen Type: Expanded Mesh,Flattened And Standard,Raised Type
Technique: Perforated,Woven Weave Style: EXPANDED METAL
Surface Treatment: Hot Dipped Galvanized,Powder Coated,Galvanized,powder Coating Product Name: Expanded Metal Mesh,Aluminum Expanded Metal
Feature: Corrosion Resistance,Durable,Beautiful,lacquer,Easily Assembled Usage: Liquid Filter,screen,Construction
Hole Shape: Diamond Hole Length: 30m
Width: 0.5-2m Packing: Wooden Box,plastic Film,pallet
Short Way Of Mesh: 2-40mm Sample: Free
High Light:

expanded metal lath

,

expanded mesh panels


1/8'' 0.35mm Galvanized High Rib Lath 610X2440 for Construction

Rib lath is expanded metal-lath stiffened with longitudinal ribs.
The furring design of the mesh provides efficient background plaster for construction of partition,
suspended ceilings and refurbishment works. The advantage of ribbed-lath over metal-lathing is that support centers can be increased or widened.

Rib lath has excellent engineering quality and construction security. It is widely used in construction reinforcement of tunnels bridges, valve basement systems, sewage systems, subways, retaining walls, nuclear power plants, shipyards, water pools and marine engineering works and high rise building projects and non-regular or bending pattern as concrete permanent assembly-free formwork lath.

High Rib Lath is produced from galvanized steel expanded metal sheets. It provides longitudinal 3/8" ribs and small inverted ribs, together with a small herringbone mesh offering superior strength and spanning capabilities.
Specifications and sizes can be customized.

high rib lathhigh rib lath


Name: Rib lath
Mesh Size: 686*2500mm
Material Th.: 0.5mm
Rib height: 21mm
Opening size: 9*7mm
Material: Pre-galvanized mild steel
Steel zinc coating weight: Z60
1. Usage: building, construction. Material: galvanized sheet
2. Specificaton:
Thickness:
0.30mm-0.50mm
Rib Height:15-20mm
Width: 600mm 610mm
Length: 2000mm-2500mm



Type
Sheet thickness
(mm)
Rib Distance
(mm)
Weight
(kg)
WidthXLength
(mm)
78300.301001.79610X2440
78350.351002.09610X2440
78400.401002.38610X2440
78450.451002.68610X2440
78500.501002.98610X2440
TypeSheet thickness
(mm)
Rib Distance
(mm)
Weight
(kg)
WidthXLength
(mm)
74300.301001.26610X2440
74350.351001.49610X2440
74400.401001.68610X2440
74450.451001.89610X2440
74500.501002.11610X2440
TypeSheet thickness
(mm)
Rib Distance
(mm)
Weight
(kg)
WidthXLength
(mm)
94300.30751.89610X2440
94350.35752.28610X2440
94400.40752.53610X2440
94450.45752.84610X2440
94500.50753.15610X2440
TypeSheet thickness
(mm)
Rib Distance
(mm)
Weight
(kg)
WidthXLength
(mm)
58300.301501.31610X2440
58350.351501.53610X2440
58400.401501.75610X2440
58450.451501.96610X2440
58500.501502.17610X2440


3. Advantages we have:
1) More than 10 Experiences supplier
2) T/24 service for you,all the question will be dealed anytime.
4. Benifit you get:
1. Stable quality:Coming from good material
2. Low price:No cheapest but the lowest at the best quality.
3. Good service:Satisfactory service before and after sale.
4. Delievey time:10-20 days for mass production
5. Packing & Shipping: Pallets

3/8" Hi-Rib with K-Paper
3/8" Hi-Rib with K-Paper
3/8” Hi-Rib Lath is the most rigid of all metal laths. With full 3/8” ribs running longitudinally, and a 1/8” rib between them, Hi-Rib lath is able to span up to 24” on center. The 3” strips of K-Paper attached to the spaces between the 3/8” ribs to minimize blow through of plaster when machine applied. This lath can be used in both vertical and horizontal applications. Please consult CEMCO’s Technical Services for specifics.

  • ASTM A653
  • ASTM A924
  • ASTM C841 (Installation)
  • ASTM C847
  • ICC ESR-1623
  • Fed. Spec. QQ-1-101C
  • ANSI A42.3, ANSI A42.4
  • U.S. HUD 4930.1
Sheet SizePcs./Bdl.Yds./Bdl.Yds./PalletBdl./Pallet
27" x 96"1020100050


3/8" Hi-Rib no paper
3/8" Hi-Rib no paper
3/8” Hi-Rib Lath is the most rigid of all metal laths. With full 3/8” ribs running longitudinally, and a 1/8” rib between them, Hi-Rib lath is able to span up to 24” on center. This lath can be used in both vertical and horizontal applications. Please consult CEMCO’s Technical Services for specifics.

  • ASTM A653
  • ASTM A924
  • ASTM C841 (Installation)
  • ASTM C847
  • ICC ESR-1623
  • Fed. Spec. QQ-1-101C
  • ANSI A42.3, ANSI A42.4
  • U.S. HUD 4930.1
SHEET SIZEPCS./BDL.YDS./BDL.YDS./PALLETBDL./PALLET
27" x 96"1020100050

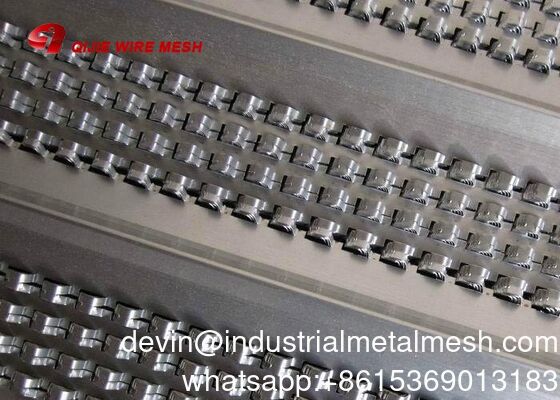

Detail Photo:

high rib lath-001high rib lath
high rib lathhigh rib lath
high rib lathhigh rib lath


expanded metal lath

expanded metal lath

expanded metal lath
