| Surface Treatment: | Hot Dipped Galvanized | Type: | BTO-10 ,BTO-12,BTO-18,BTO-22,BTO-25,BTO-28, BTO-30,CBT-60,CBT-65 |
|---|---|---|---|
| Loops: | 56 Loops , 33 Loops , 55 Loops , 144 Loops | Clips: | 5clips , 3 Clips , Without Clip |
| Packing: | Inside Waterproof Paper | Material: | Hot-dipped Galvanized , Stainless Steel 430, |
| High Light: | binding wire gauge,galvanized tie wire |
||

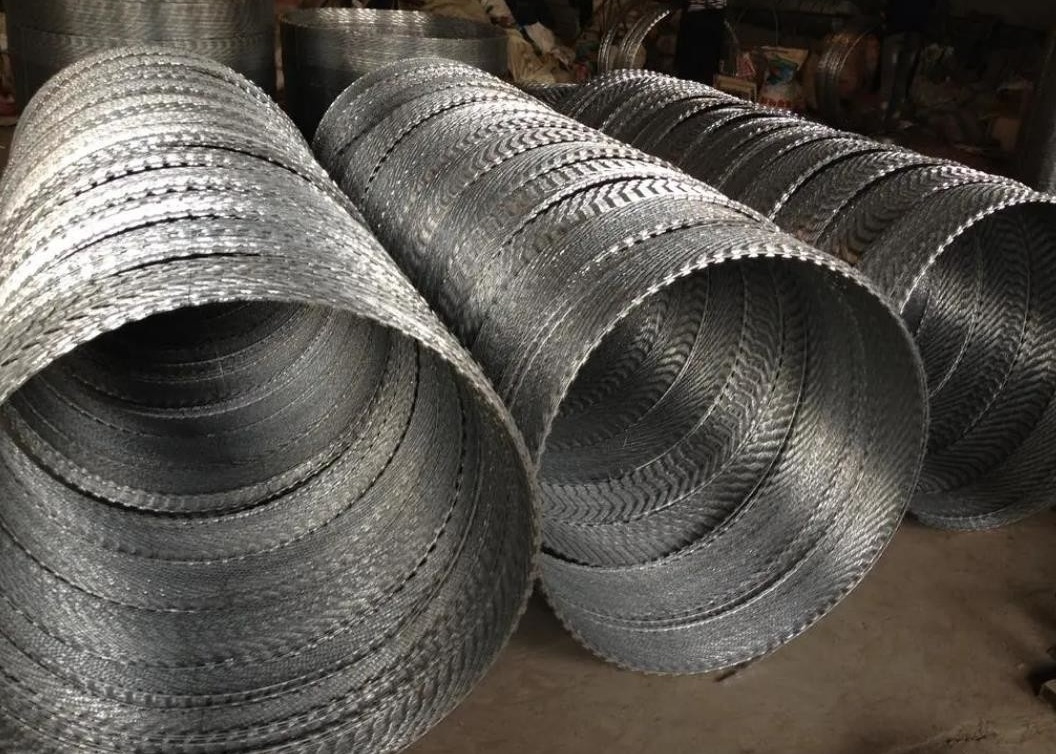

Hot Dipped Galvanized Concertina Razor Barbed Wire
Razor Barbed Wire, Concertina Barbed Wire, Blade Wire, Razor Barbed Tape
We are capable of produce traditional razor wire, razor wire in straight lines, razor wire in concertina single coils or crossed coils. A variety of blade type and sizes are for the choice of our customers. Standard materials for razor wire are either Hot-dipped galvanized or stainless steel.
Materials: Hot dipped galvanized, electro galvanized, stainless steel, etc
Assortment: razor barbed wire can be supplied in straight line razor wire, single coils razor wire or crossed concertina razor coils
Concertina razor wire, razor barbed wire , mainly used for safety scope.
Razor wire
Material : Hot-dipped galvanized , stainless steel 430,
Stainless steel 304, PVC coated
Blade type : BTO-10 ,BTO-12,BTO-18,BTO-22,BTO-25,BTO-28,
BTO-30,CBT-60,CBT-65
Loops : 56 loops , 33 loops , 55 loops , 144 loops and so on ,
we can aslo produce as per customer's requirement .
Clips : 5clips , 3 clips , without clip .
Packing : Inside waterproof paper ,
outside plastc weaving bags or carton box
Different size have different loops , different clips ,
please confirm which one do you need , so that we can give you reasonable price .
Specifications:
| Reference number | Thickness | Wire Dia | Barb length | Barb width | Barb spacing |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 |
| BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 |
| CBT-60 | 0.5±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.5±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
| Specification of concertina razor wire | ||||
| Outside diameter | No.of loops | Standard length per coil | Type | Notes |
| 450mm | 33 | 7-8M | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13m | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15m | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9m(3 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10m(3 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11m(3 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10m(5clips) | CBT-10.10.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15m(5clips) | CBT-10.10.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16m(5 clips) | CBT-10.10.18.22.28.30 | Cross type |
